Basic Information
Numbers of Function
Two-function
Certification
CE, ISO13485, ISO9001/ISO14001/Hsas18001/TUV
Usage Environment
Hospital
Target Audience
Postoperative Patients/Long-Term Bedridden Patient
Applicable Environment
Hospitals/Homes/Nursing Homes, etc
Adjustment Method
Hand Cranked Mechanical Structure
Adjustment Function
Back Lift/Leg Lift
Back up Adjustment
70 º ± 5 º
Carrying Capacity
≥ 240 Kilograms

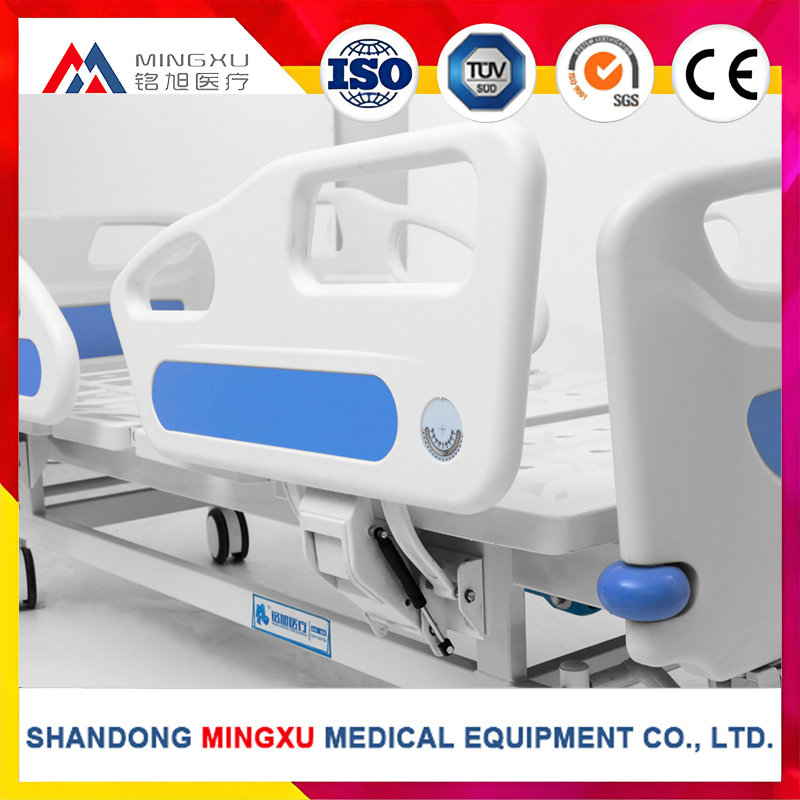

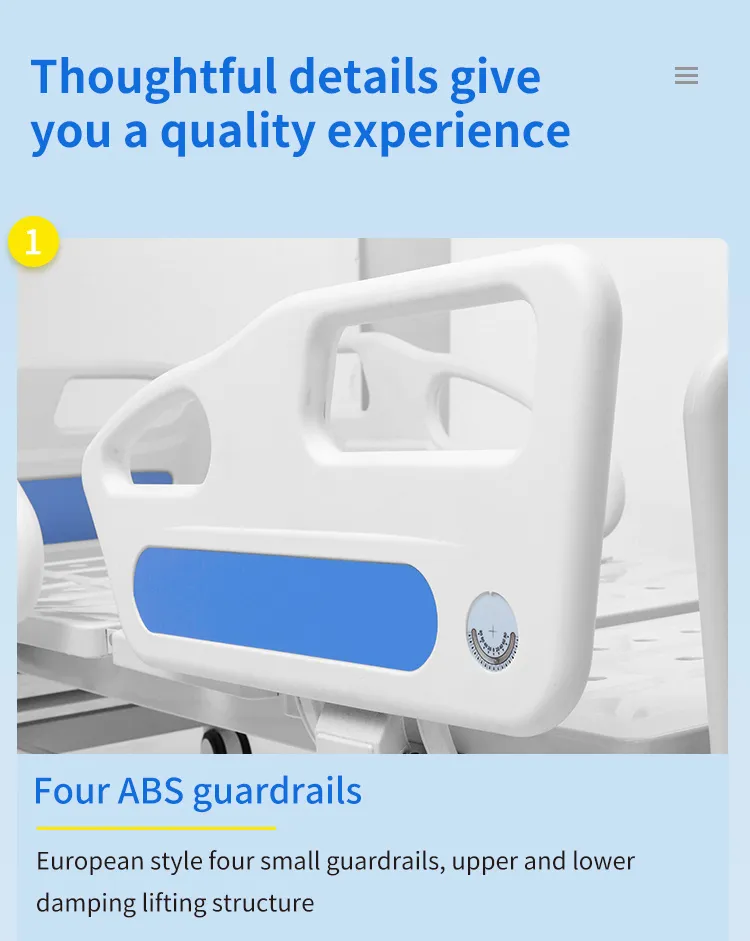

Guardrail
Double Sided Lifting Anti-Fall

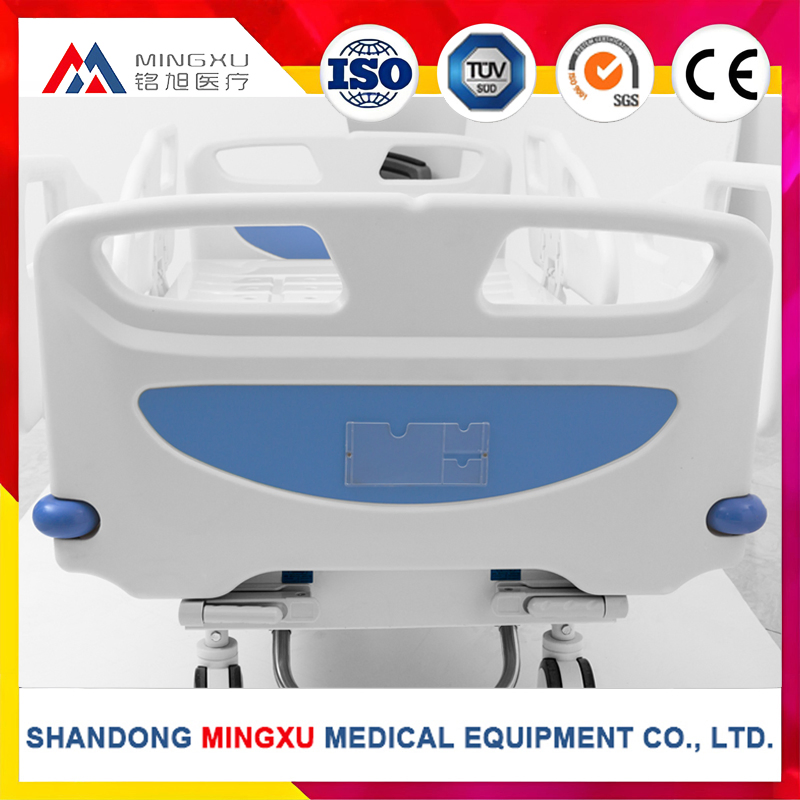

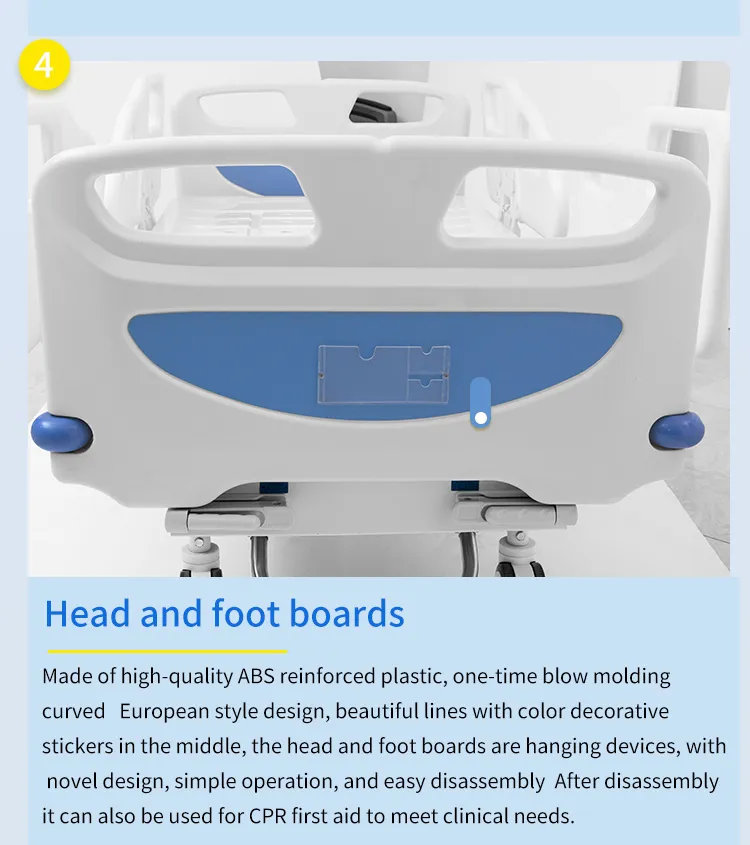

Bedhead/Tail Panel
Removable Design
Bed Segmentation
Four Stages
Mattress Type
Pressure Ulcer Resistant/Waterproof

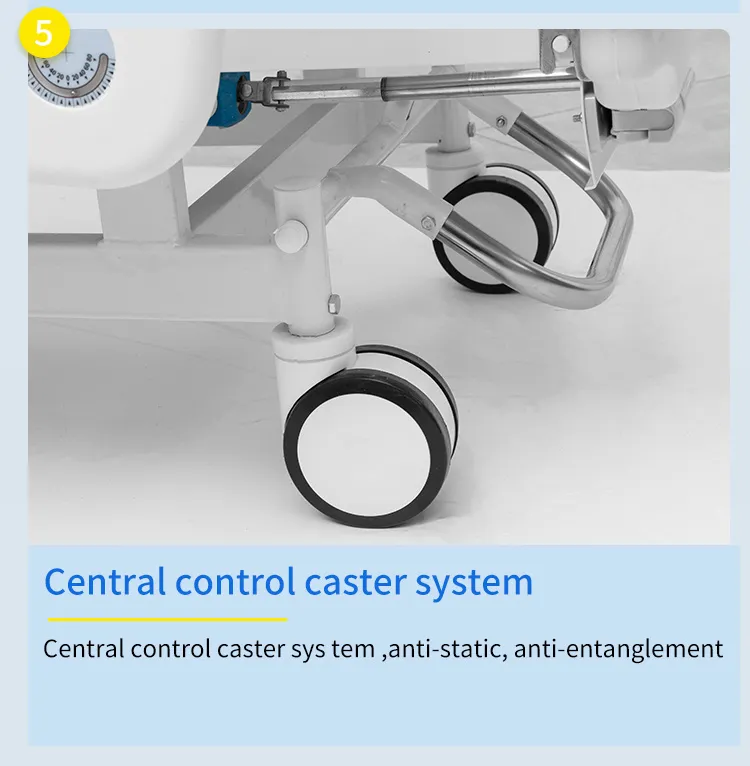

Braking
Central Control Brake
Tire Type
Universal Wheel/Anti-Static Wheel

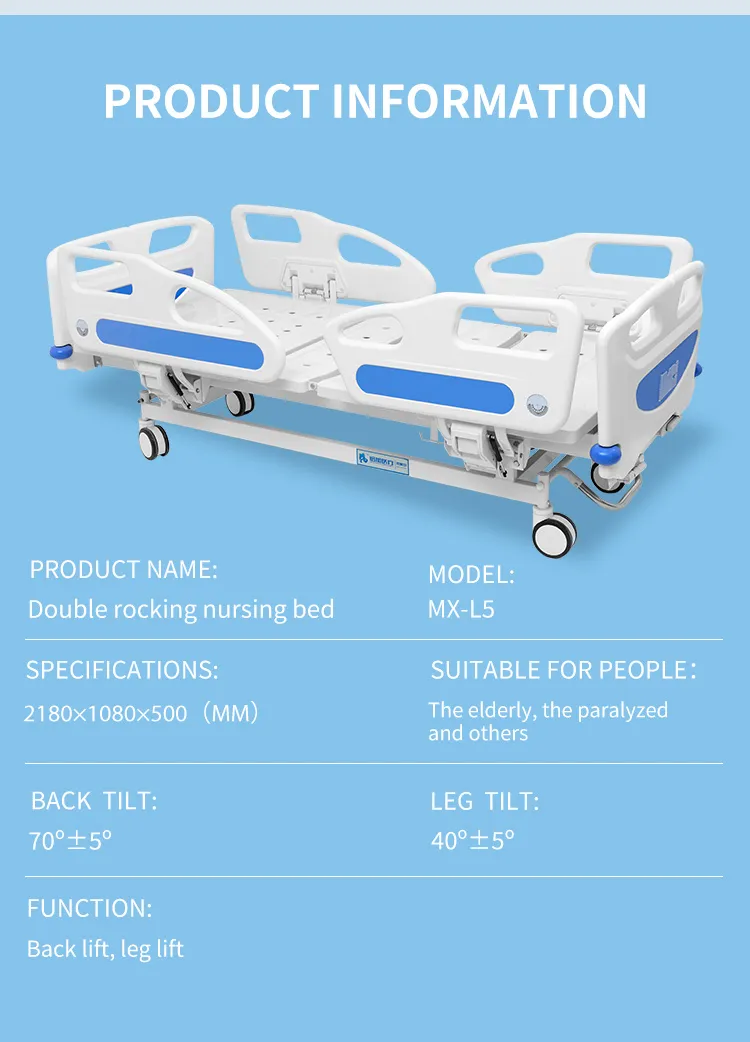

Specification
2180× 1080× 500 mm

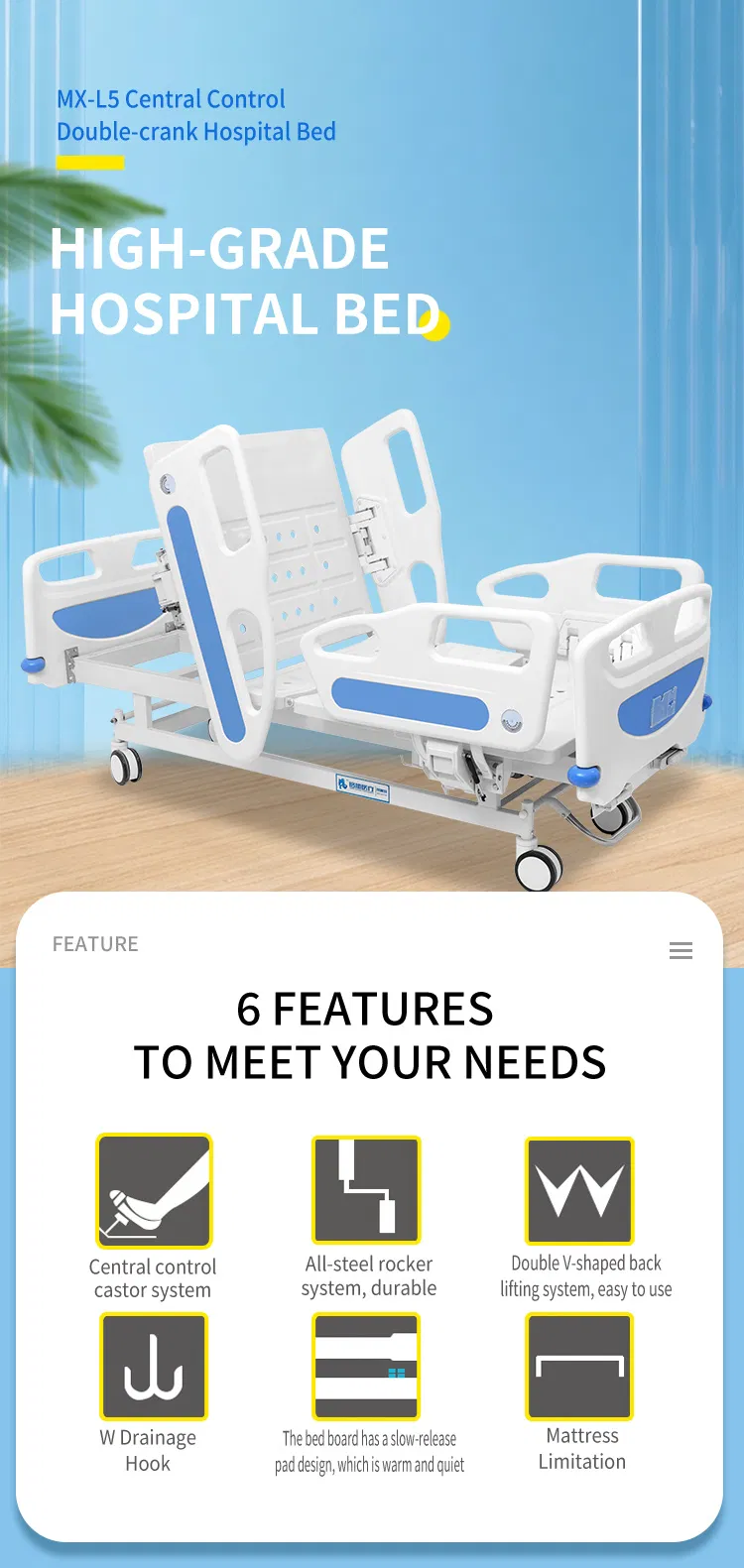

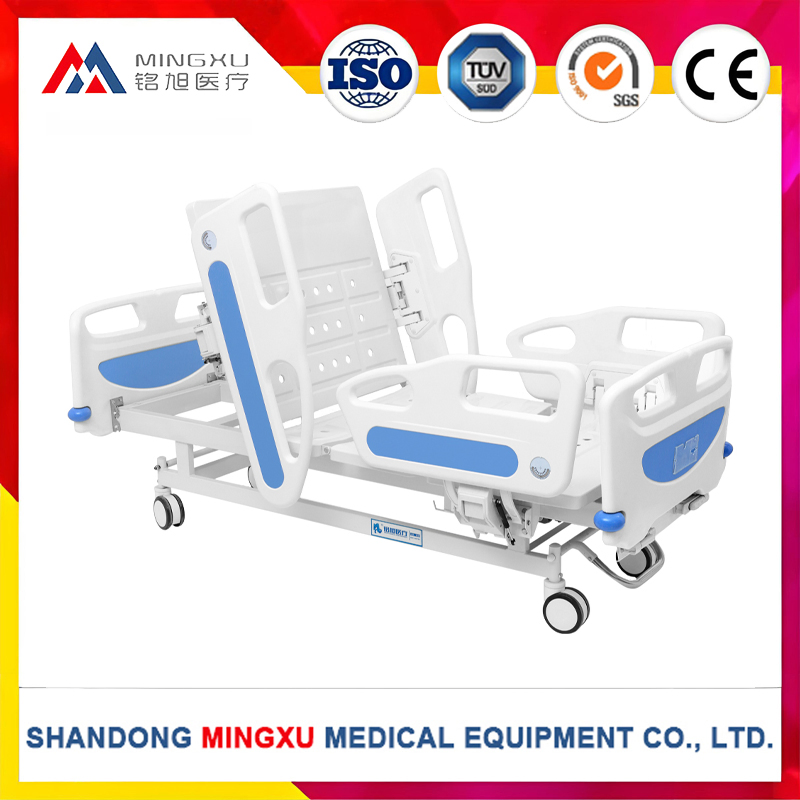

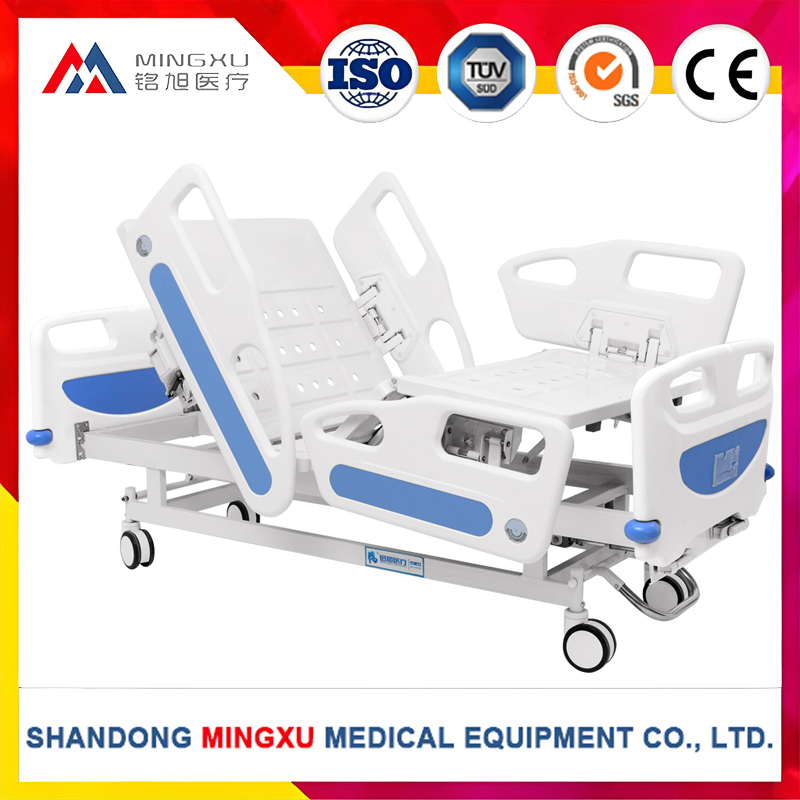

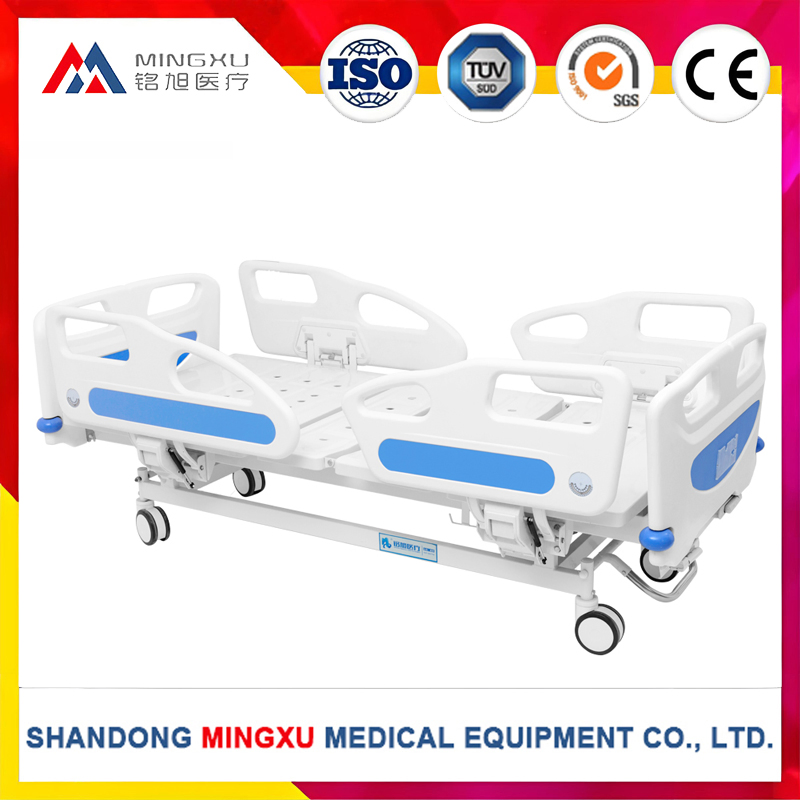

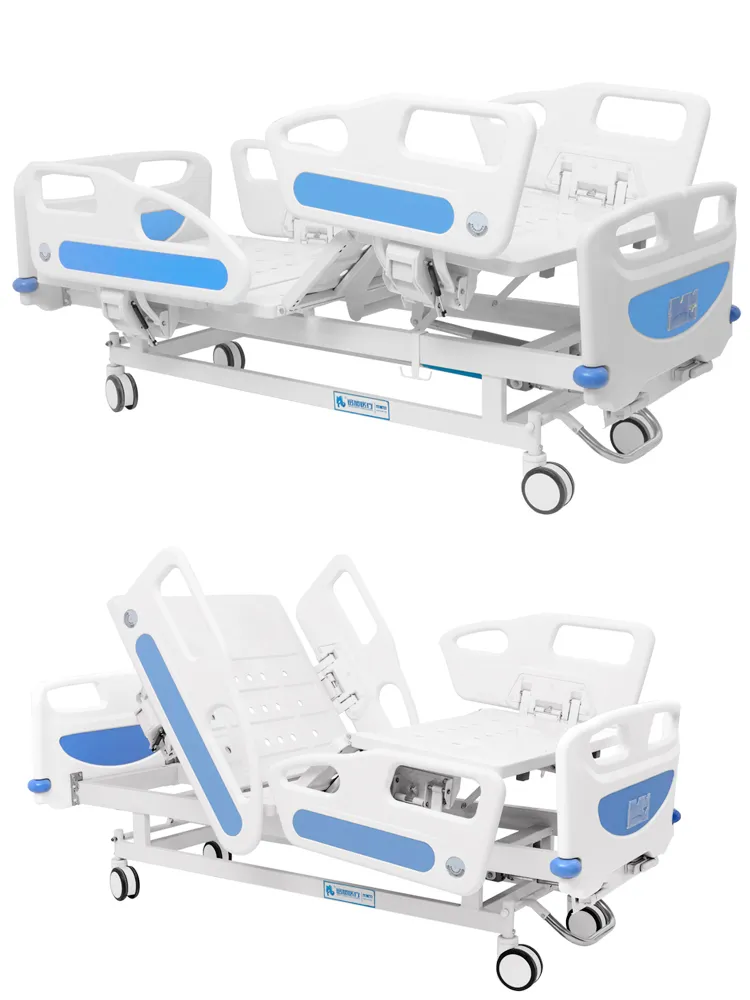

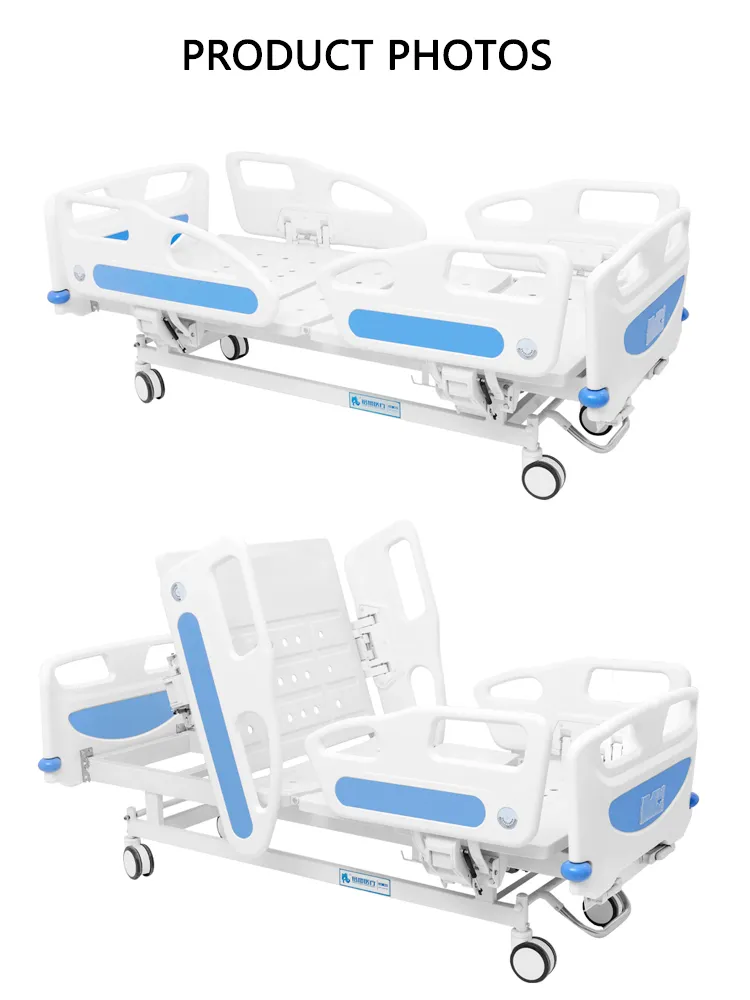

Product Description
Manually adjustable double rocking nursing beds are the epitome of essential medical equipment, serving as a crucial element in hospitals, nursing homes, and various medical establishments. These beds boast a multifunctional design, ensuring they cater to a broad spectrum of patient care needs with remarkable efficiency and adaptability.
- Engineered with a focus on patient-centric care for exceptional comfort.
- Double rocking feature adeptly elevating both legs and back.
- Sturdy framework and top-tier materials for long-term durability.
- Manual adjustment mechanism for meticulous customization.
Functions
Adjustment Range:

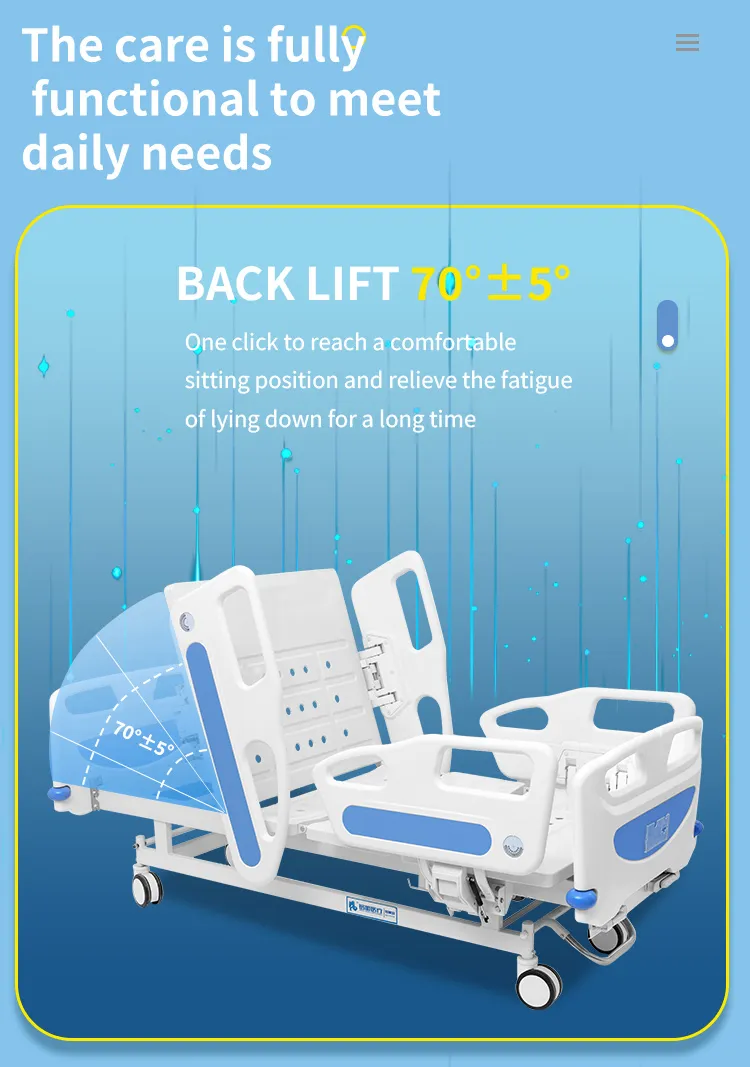

Back Tilt: 70° ± 5°

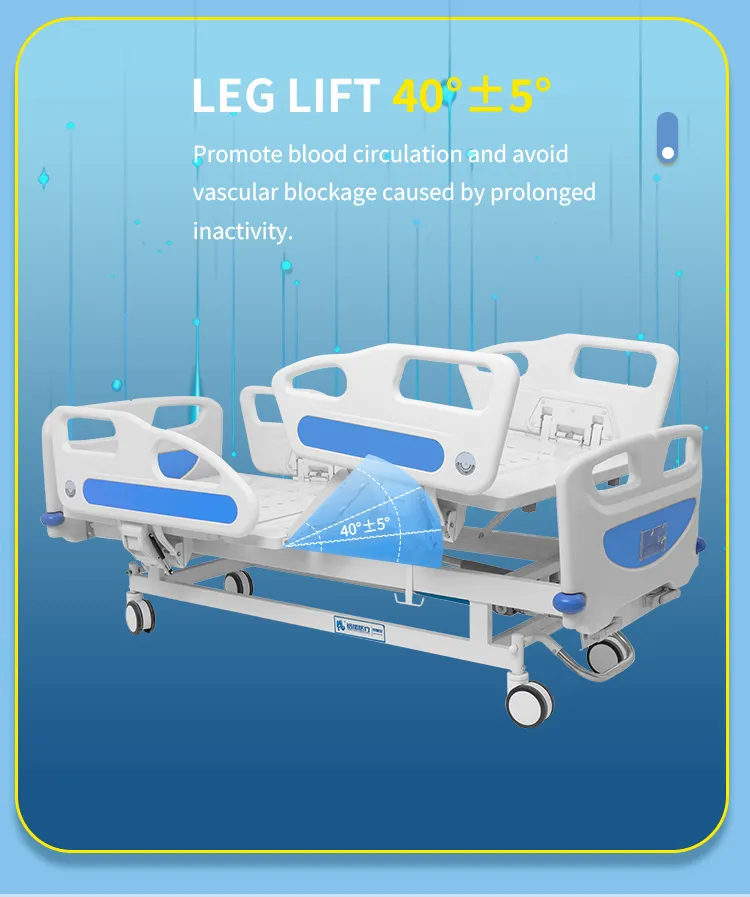

Leg Tilt: 40° ± 5°
Dynamic Load-Bearing Capacity: ≥ 240kg
Product Configuration List
| NO. |
Name |
Unit |
Quantity |
Remark |
| 1 | Bed set | set | 1 | - |
| 2 | Headboard, footboard (blow molding) | Pair | 1 | - |
| 3 | Anti-collision wheel | pc | 4 | - |
| 4 | Center Control Casters | pc | 4 | - |

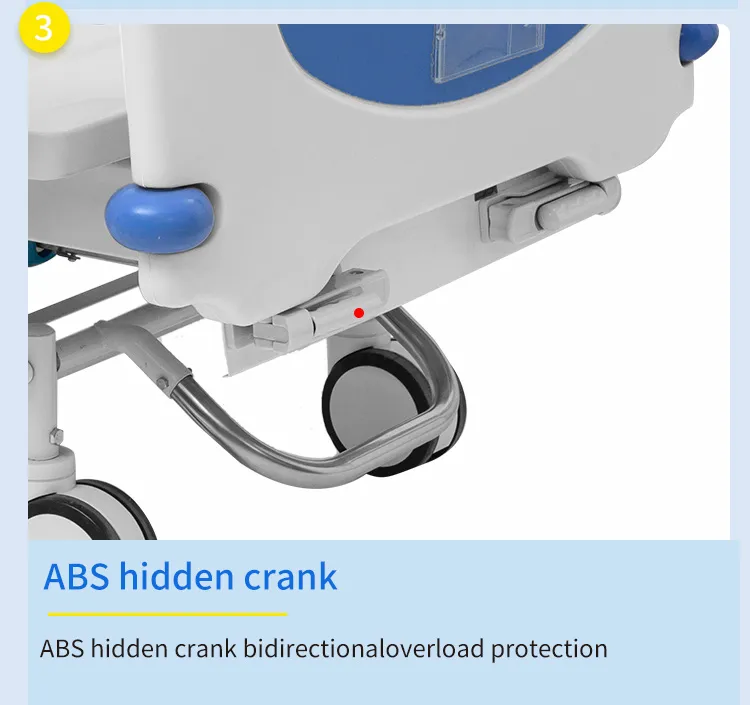

| 5 | Hand crank transmission | set | 2 | - |
| 6 | ABS Guardrail | pc | 4 | - |
| 7 | Angle display | pc | 4 | 1 per guardrail |
| 8 | Drainage hook | pc | 1 | Optional |
| 9 | Mattress | pc | 1 | Optional |
| 10 | Telescopic infusion stand | pc | 1 | Optional |
| 11 | ABS Extendable dining table | pc | 1 | Optional |
| 12 | Sundries rack | pc | 1 | Optional |
Dedicated to providing top-tier operating room and ward equipment solutions to medical institutions worldwide, we maintain a relentless focus on unparalleled quality and cutting-edge innovation. Our primary offerings include an array of vital medical equipment such as medical beds, operating tables, LED shadowless lights, and medical suspension towers.
Frequently Asked Questions
1. What are the primary adjustment functions of the MX-L5 bed?
The MX-L5 features a manual two-function adjustment system, allowing for back lift (up to 70° ± 5°) and leg lift (up to 40° ± 5°) via a hand-cranked mechanical structure.
2. What is the maximum load-bearing capacity of this hospital bed?
The bed is designed for heavy-duty use with a dynamic load-bearing capacity of ≥ 240 kilograms, making it suitable for a wide range of patient needs.
3. Does the bed include safety features to prevent patient falls?
Yes, it is equipped with double-sided ABS lifting guardrails designed specifically to prevent falls and provide security for postoperative or long-term bedridden patients.
4. Are the head and footboards removable?
Yes, the bed features a removable design for the headboard and tail panel, which is essential for emergency access and easier patient care.
5. What type of braking system is used?
The MX-L5 is equipped with a central control brake system and universal wheels (including anti-static options) for smooth transport and secure positioning.
6. What optional accessories are available for this model?
Optional accessories include pressure ulcer resistant/waterproof mattresses, telescopic infusion stands, ABS extendable dining tables, and sundries racks.
