Customization: Available
Classification: Imaging Diagnostic Equipment
Type: X Ray Equipment
Send Inquiry

Product Description

🔹

Basic Information

Model NO.HE-S01 Pure
CertificationCE, ISO13485
GroupPet
Warranty1 Year
Transport PackageWooden Case
OriginChina
Production Capacity500set/Year
🔹

Product Description

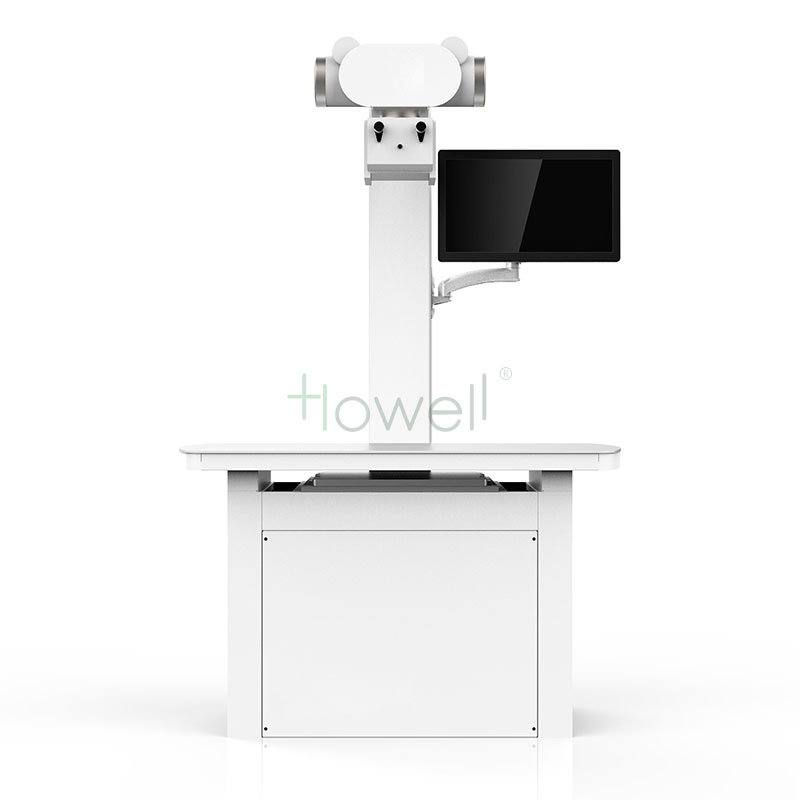

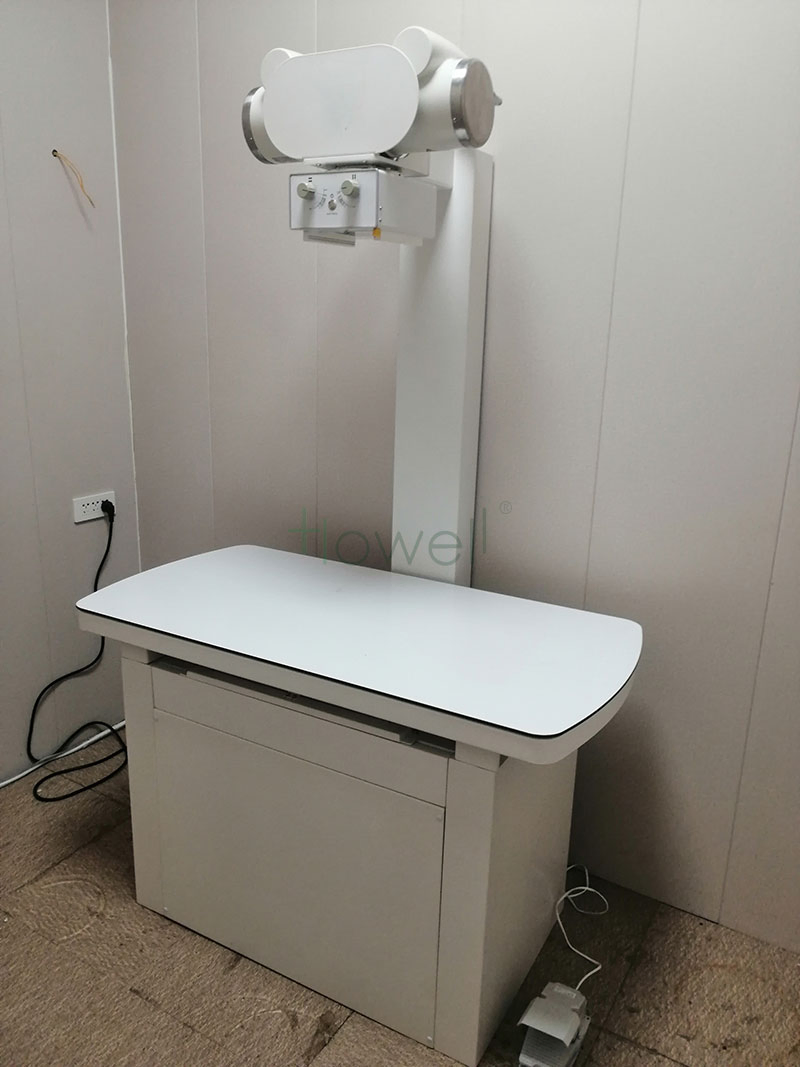

HE-S01 Pure Veterinary Pet Medical X-ray Photography System

This advanced imaging system is specifically designed for the veterinary environment, providing high-efficiency diagnostics in a compact footprint.

✔ Small size - 2 square meters installed
✔ High energy - 400 mA (for animals up to 60KG)
✔ Ultra-clear imaging technology
✔ Powerful workstation software
✔ 69% DQE reduces radiation dose
✔ Optional 1.4m four floating bed
✔ Optional bedside touch screen
🔹

Detailed Photos

Veterinary X-ray System View 1

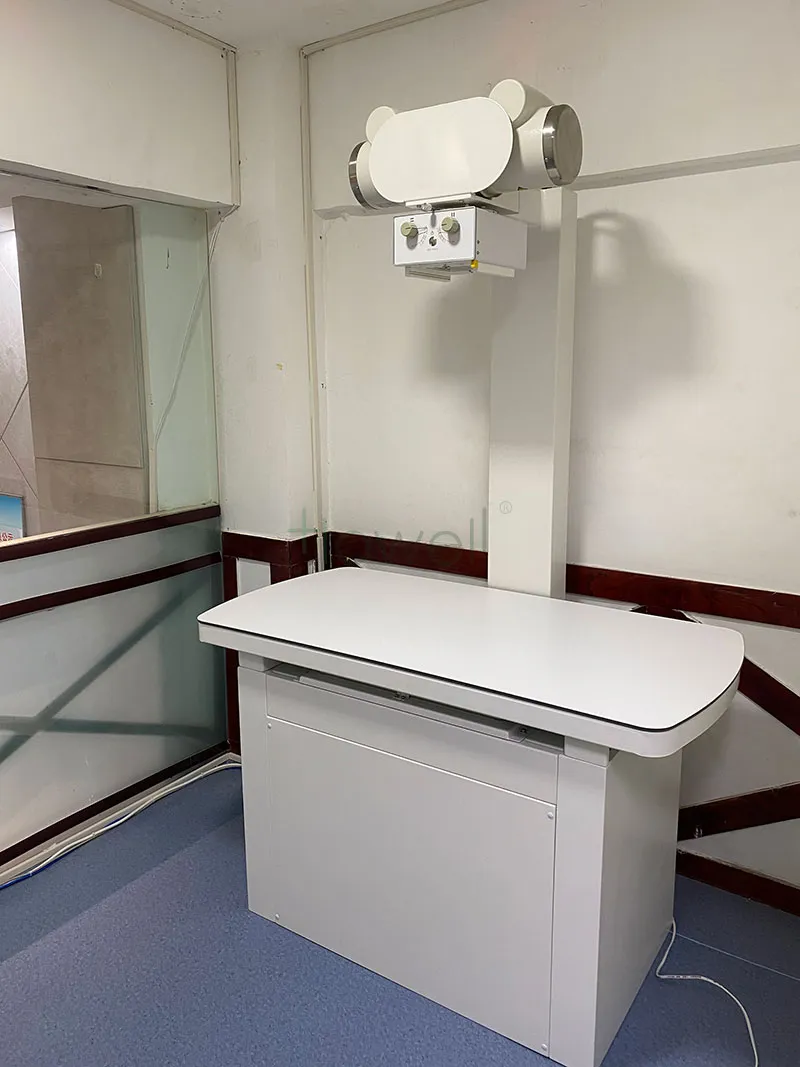

Veterinary X-ray System View 2

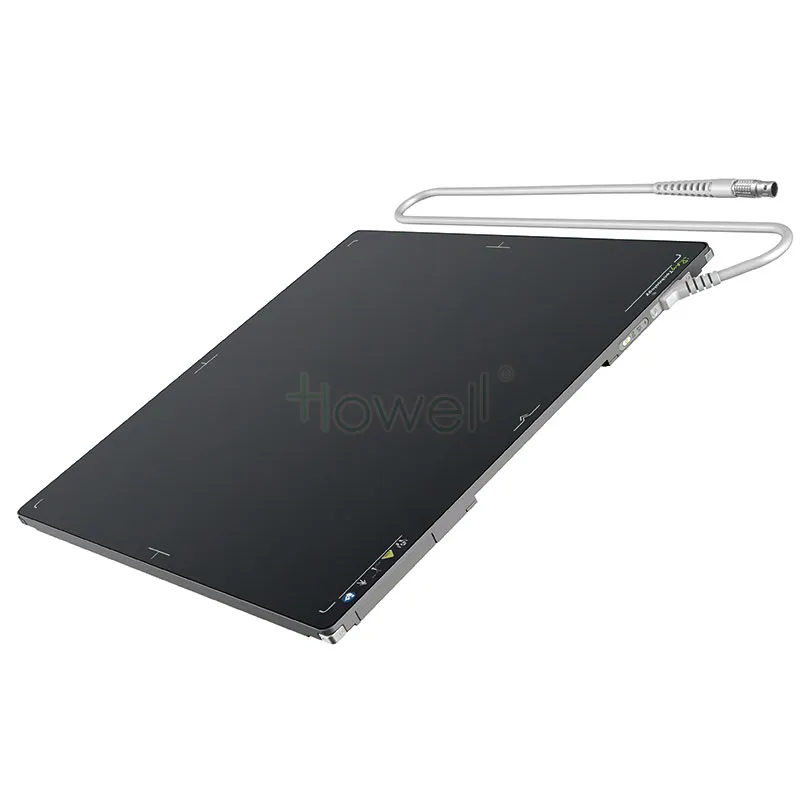

Veterinary X-ray System View 3

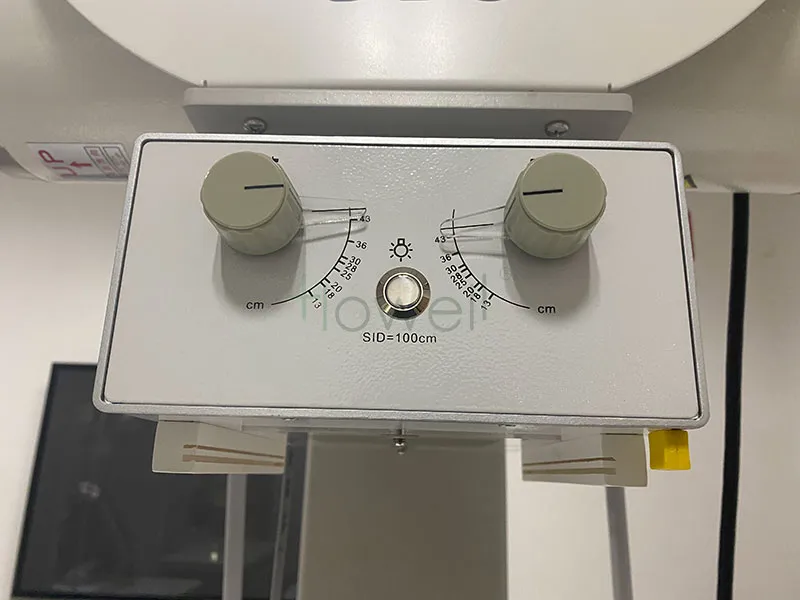

Veterinary X-ray System View 4

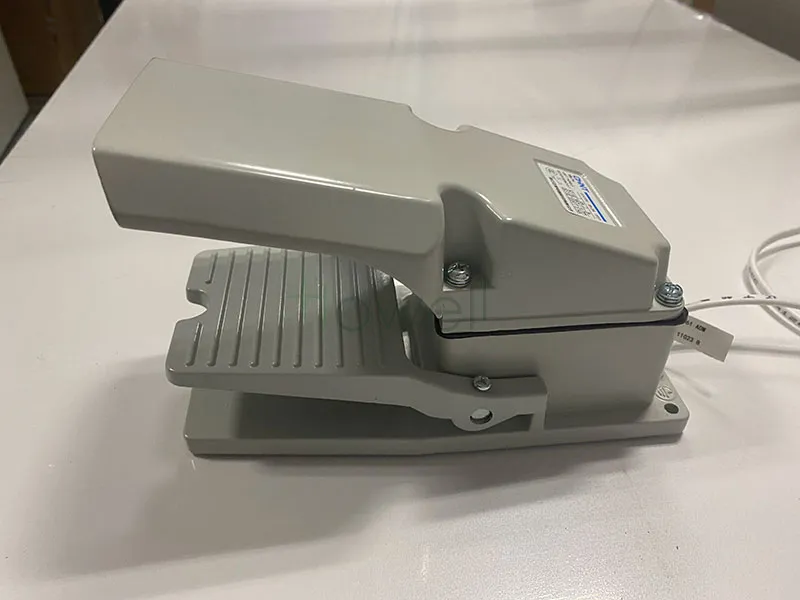

Veterinary X-ray System View 5
Veterinary X-ray System View 6

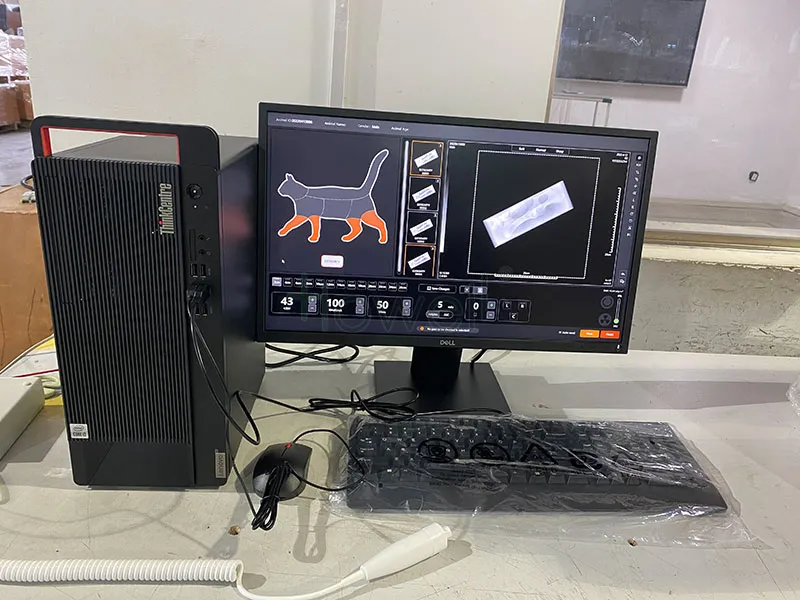

Veterinary X-ray System View 7

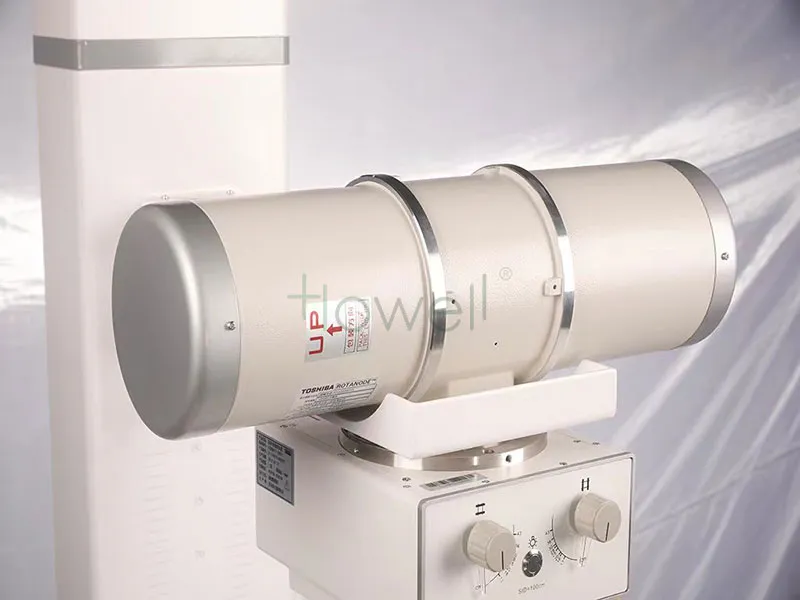

Veterinary X-ray System View 8
🔹

Product Parameters

Component Parameter Specification
High Voltage Generator Output power 32 kW
Max kV 150 kV
Max mA 400 mA
X-ray Tube Focal Spot 1.0/2.0mm
Anode Heat Content 140kHU
Flat Panel Detector Scintillator Csl & a-Si
Pixel Pitch 139μm
Number of Pixels 2912×2912
Active Area 17"×17"
Workstation Model 3080
CPU G6400
Operating System Windows 10 Professional (64-bit)
Internal Storage 4 GB, DDR4, 2666 MHz
Table Size 1200×720 mm
Table (Optional) Size 1400×720 mm
Touchscreen (Optional) Size 21.5"
🔹

Certifications

Certifications
🔹

Company Profile

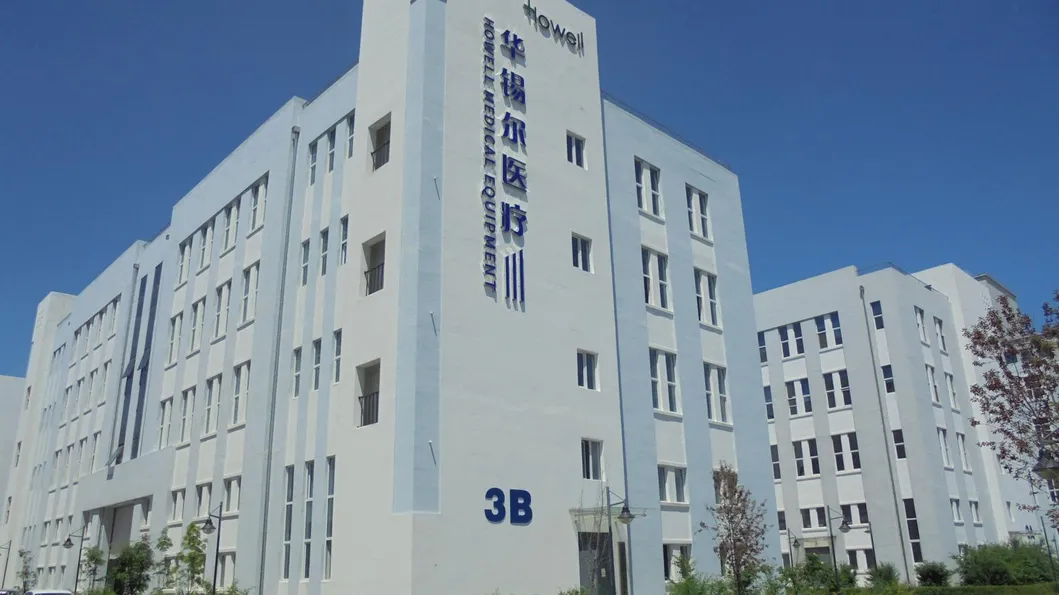

Company Overview
We are a leading manufacturer of high-tech medical equipment used in OR and ICU. Our main product lines include Operating Table, Operating Light, Anesthesia Machine, Ceiling Pendant, Infusion Pumps, and Patient Monitors. Our ICU equipment includes Ventilators and Supply Beams, as well as Gynecological Tables and Ultrasound machines. We focus on resolving technical difficulties through excellent R&D and satisfying customer demands through high-quality application experiences. Our R&D team has over 10 years of experience, with constant investment in innovation to meet and exceed international standards.
Production Facility
🔹

Packaging & Shipping

Packaging and Shipping
🔹

Frequently Asked Questions

1. What is the maximum animal weight this X-ray system can handle?
The system features a high-energy 400 mA generator, which allows for clear imaging of animals weighing up to 60KG without pressure.
2. How much space is required for installation?
The HE-S01 Pure is designed for compact clinics and can be installed in a space as small as 2 square meters.
3. Does the system help in reducing radiation exposure?
Yes, the system utilizes technology with 69% DQE (Detective Quantum Efficiency), which significantly reduces the radiation dose for the patient while maintaining image clarity.
4. What are the key specifications of the Flat Panel Detector?
The detector uses a Csl & a-Si scintillator with a large 17"×17" active area and a high resolution of 2912×2912 pixels.
5. What operating system does the workstation run on?
The workstation comes equipped with a professional 64-bit Windows 10 operating system, ensuring compatibility with modern medical software.
6. Is there a warranty provided for this equipment?
Yes, the system comes with a standard 1-year warranty covering manufacturing defects and performance.
