✔ KEY CHARACTERISTICS:

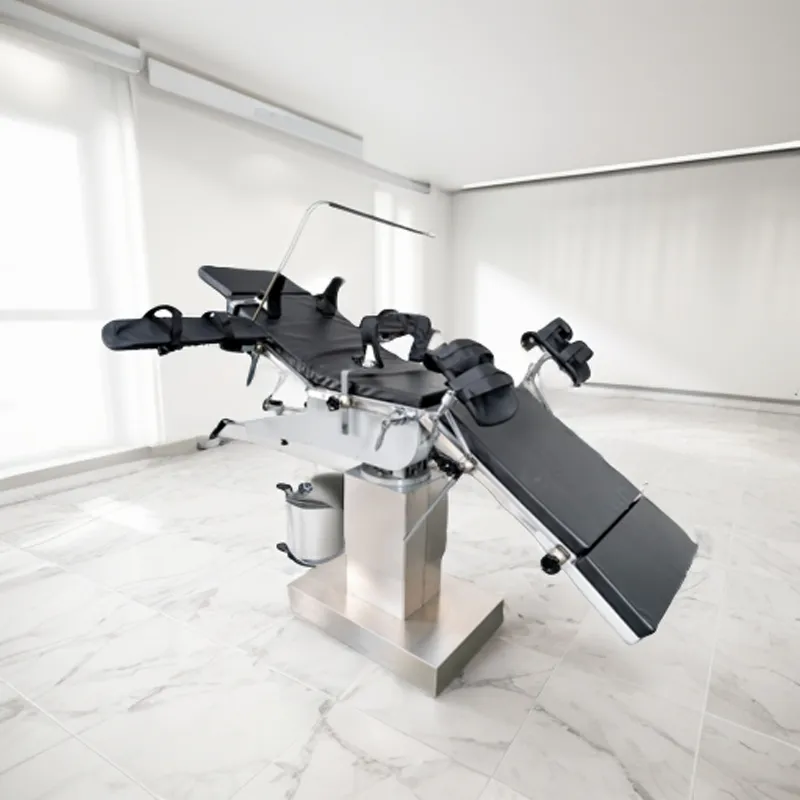

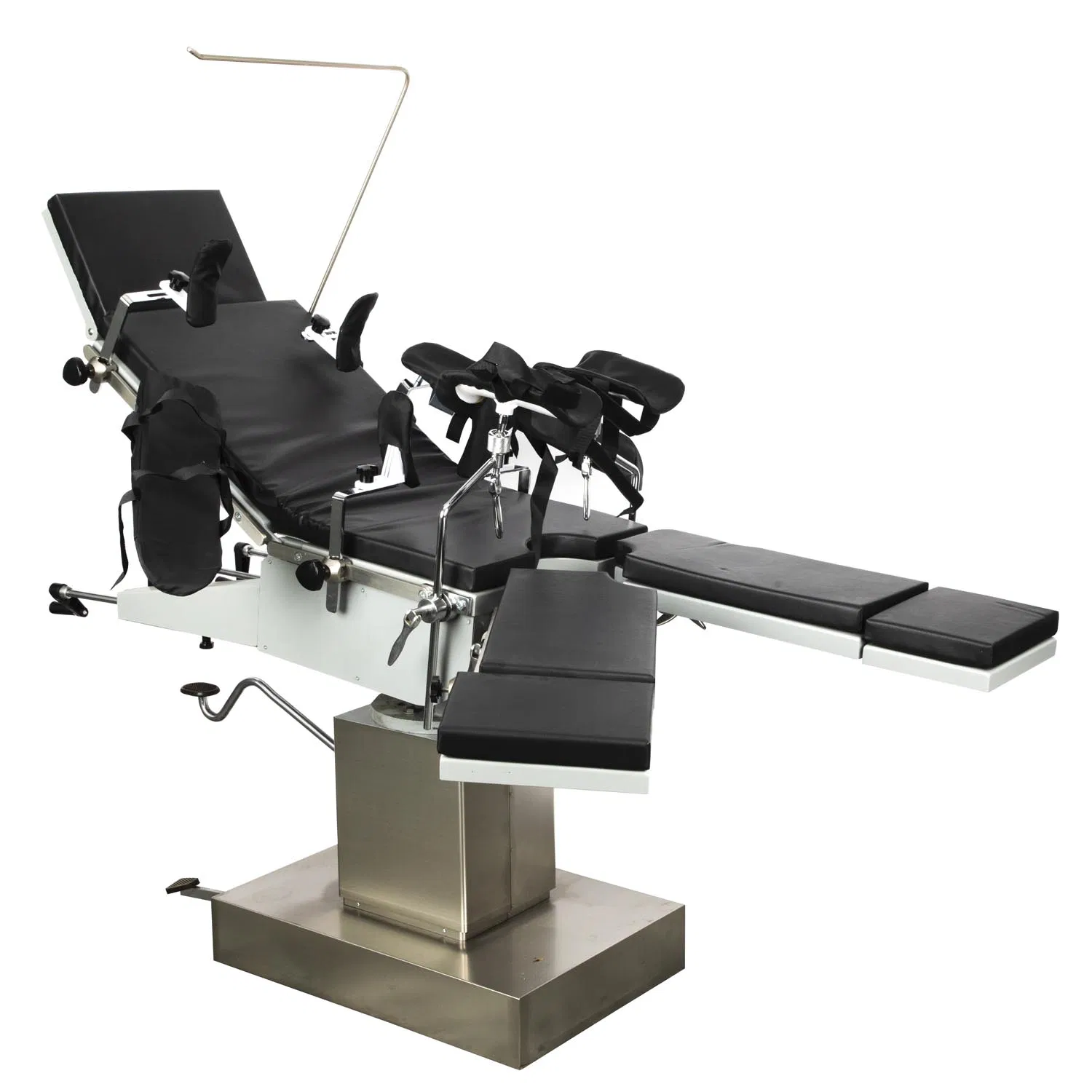

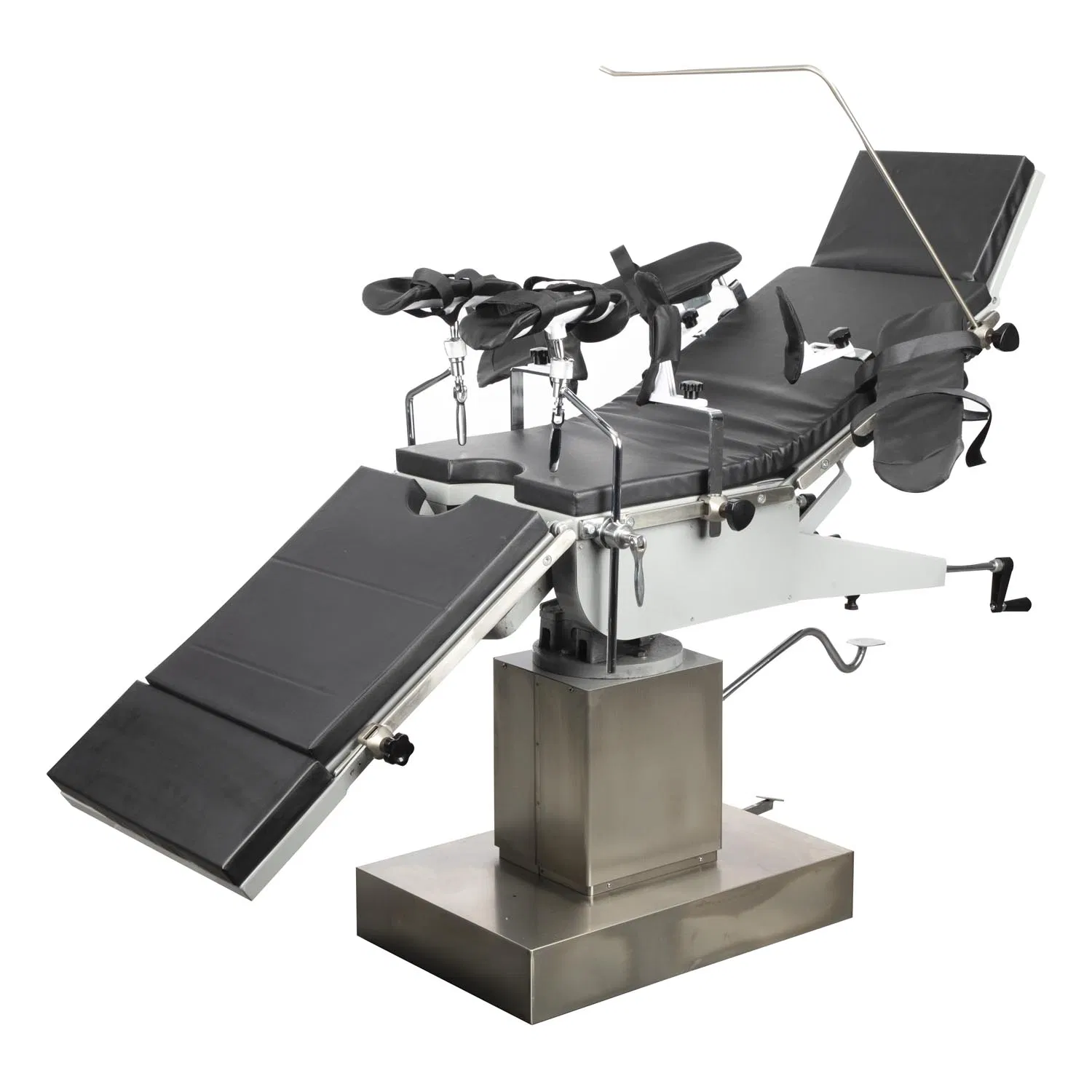

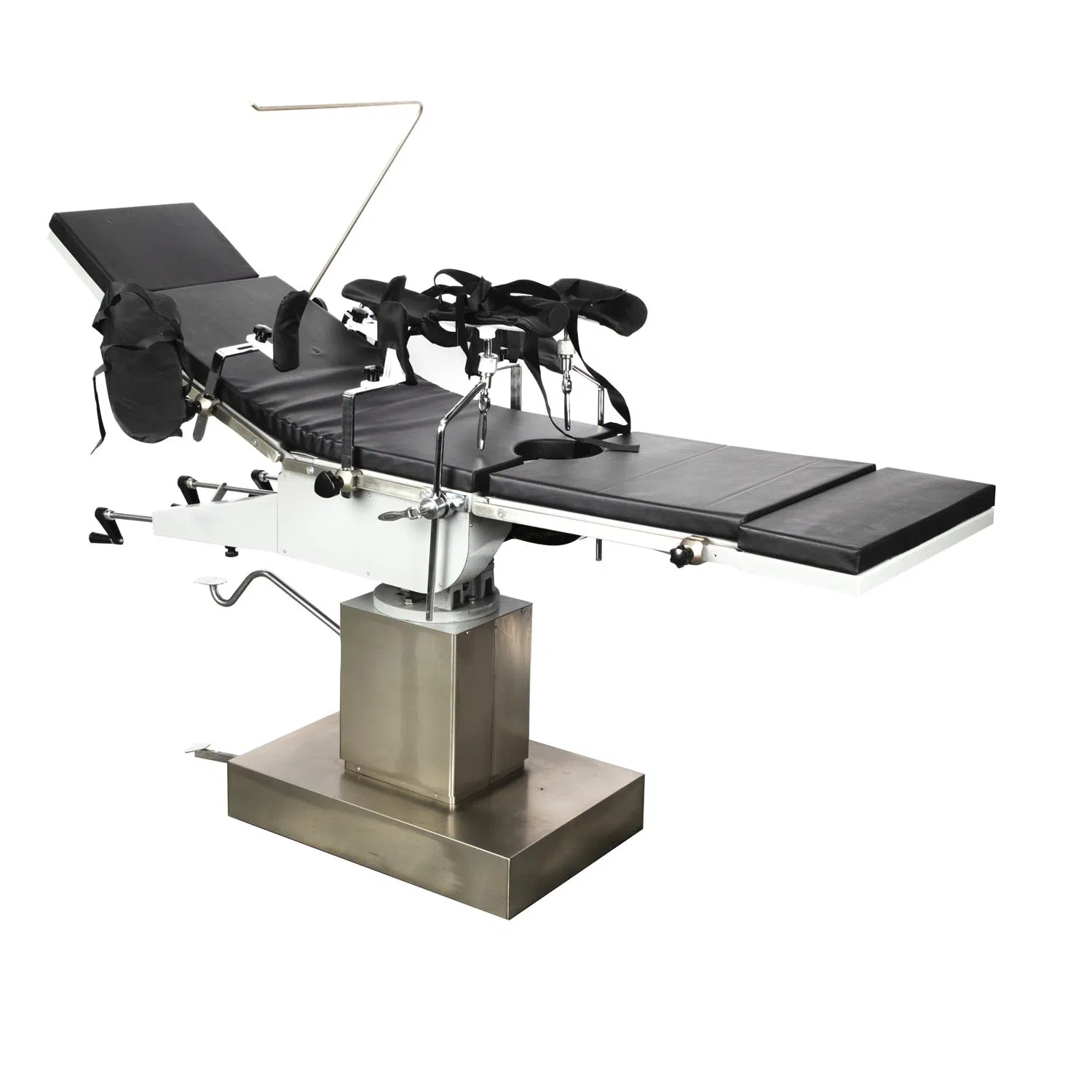

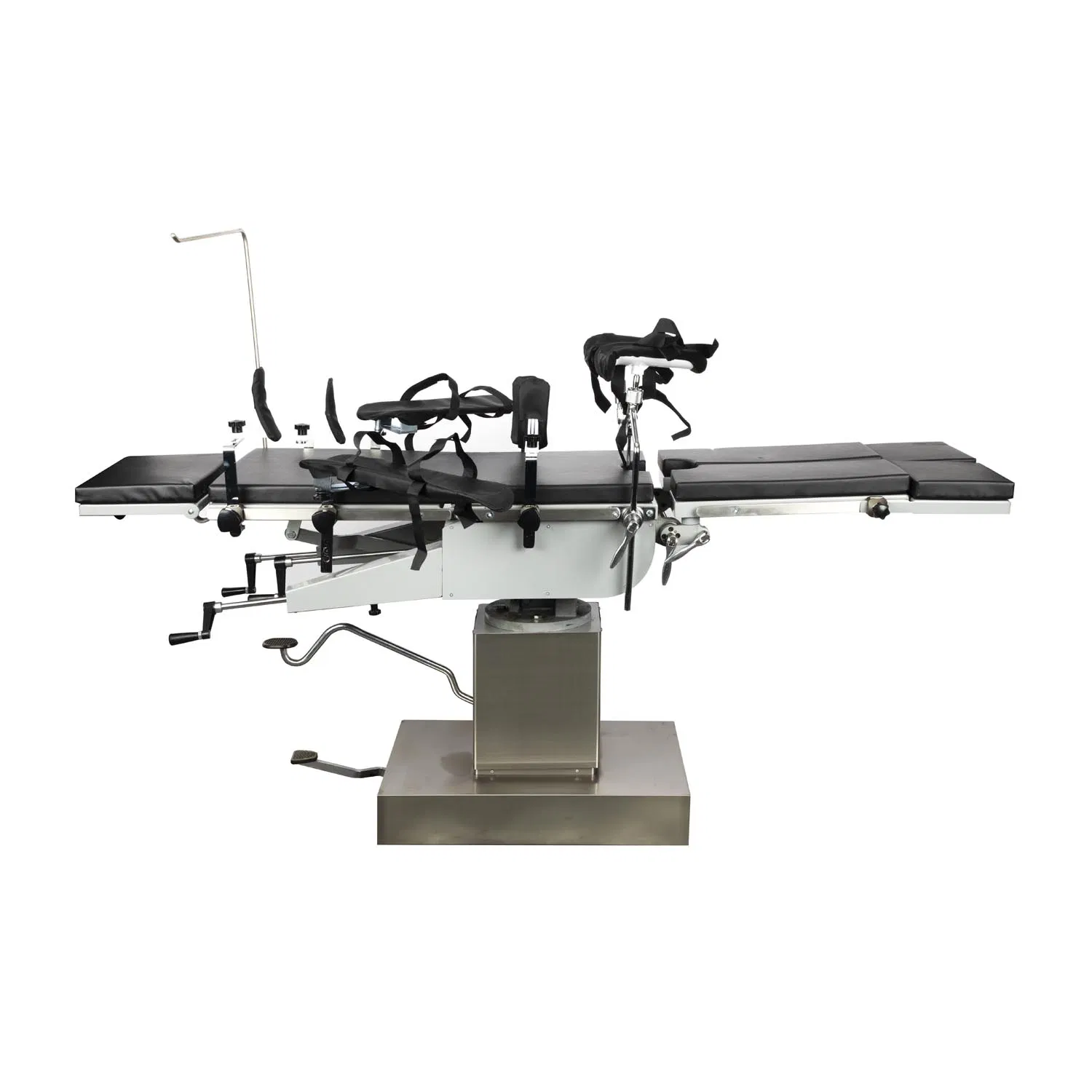

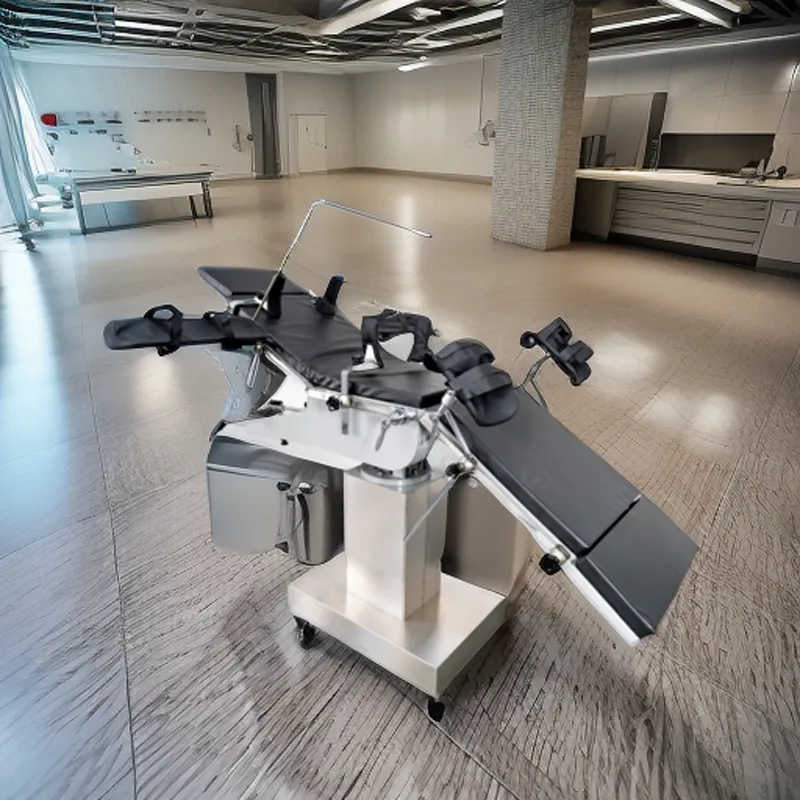

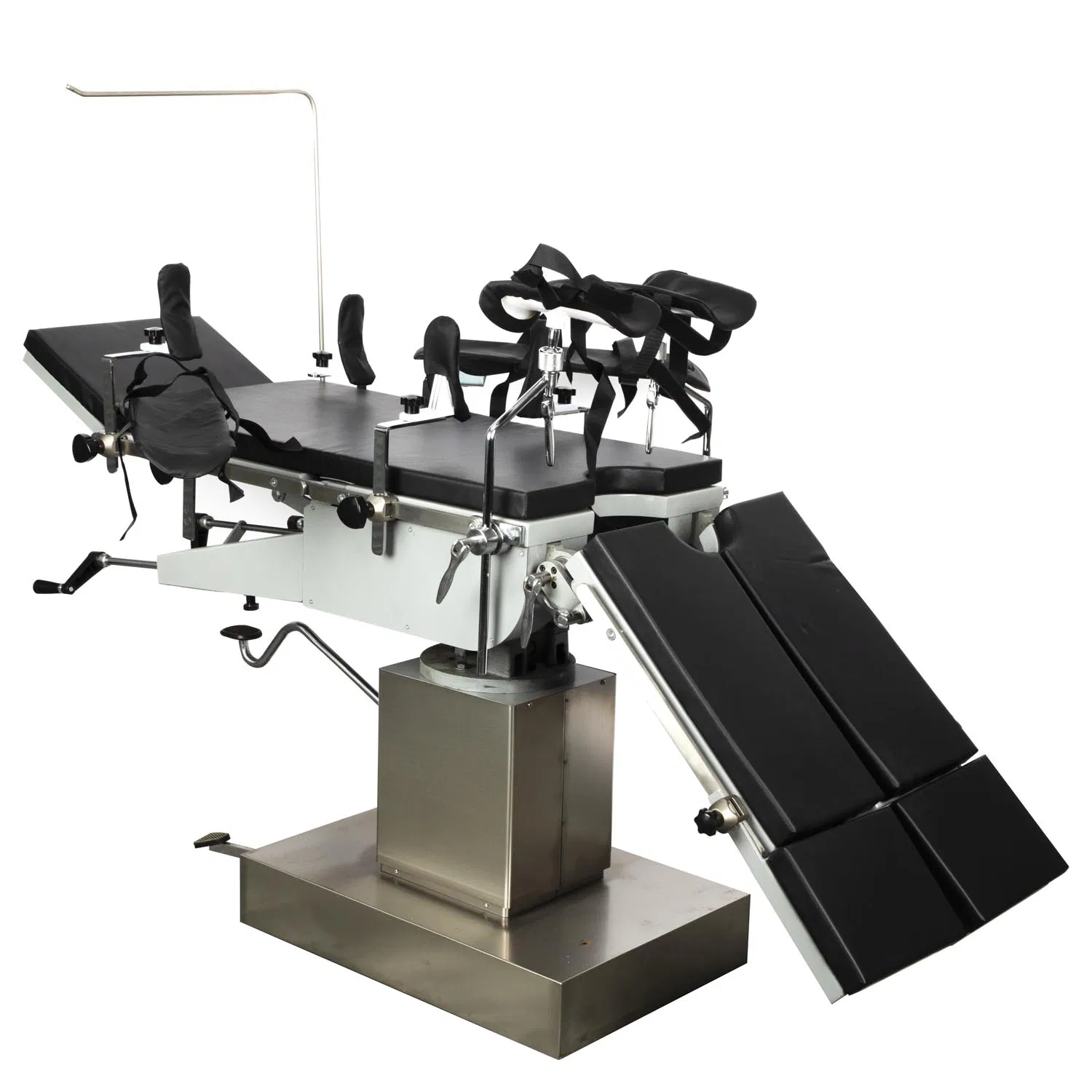

This innovative design features a foot-operated oil pump for seamless height adjustments, while a sophisticated mechanical transmission head ensures precise control over all other movements.
| Parameter Item | Specifications |
|---|---|
| Table front/back tilt angle | Front tilt ≥ 55°, back tilt ≥ 35° |
| Table left/right tilt angle | Left tilt ≥ 25°, Right tilt ≥ 25° |
| Back plate folding angle | Upward bend ≥ 85°, Downward bend ≥ 10° |
| Leg plate folding angle | Downward bend ≥ 90° |
| Table surface Specification | Length ≥ 2100mm, Width ≥ 480mm |
| Minimum table height | ≤ 800mm (Mattress not included) |
| Waist plate rise | ≥ 120mm |
| Foot plate folding angle | Downward bend ≥ 90° |
| Lifting stroke | ≥ 240mm |
| Head plate (260x400) | Up/down bend ≥ 90°, Extend or remove |
Our entity stands at the forefront of high-tech innovation, specializing in the independent design, production, and sale of cutting-edge medical operating beds and equipment. By utilizing aerospace high-tech carbon fiber composite materials, we revolutionize the medical field. Our flagship offerings include multi-functional imaging operation beds across various medical disciplines: orthopedic imaging, spinal surgery imaging, urology imaging, microscopic neurosurgery imaging, interventional imaging operation beds, and X-ray diagnostic film beds, setting new benchmarks in medical technology.
