Basic Information
Certification
CE, ISO13485
Application Group
Pet / Veterinary
Transport Package
Wooden Case
Production Capacity
500 sets/Year
Product Description

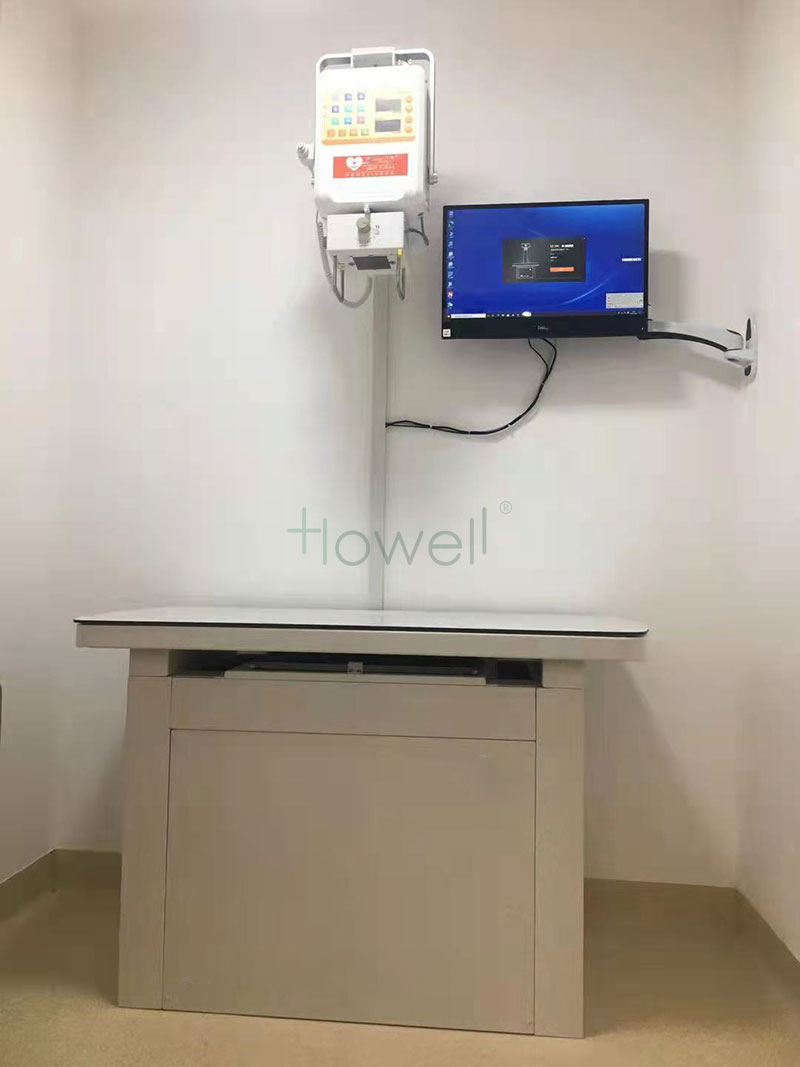

HE-DR CAT Veterinary Pet Digital X-ray Radiography System
-

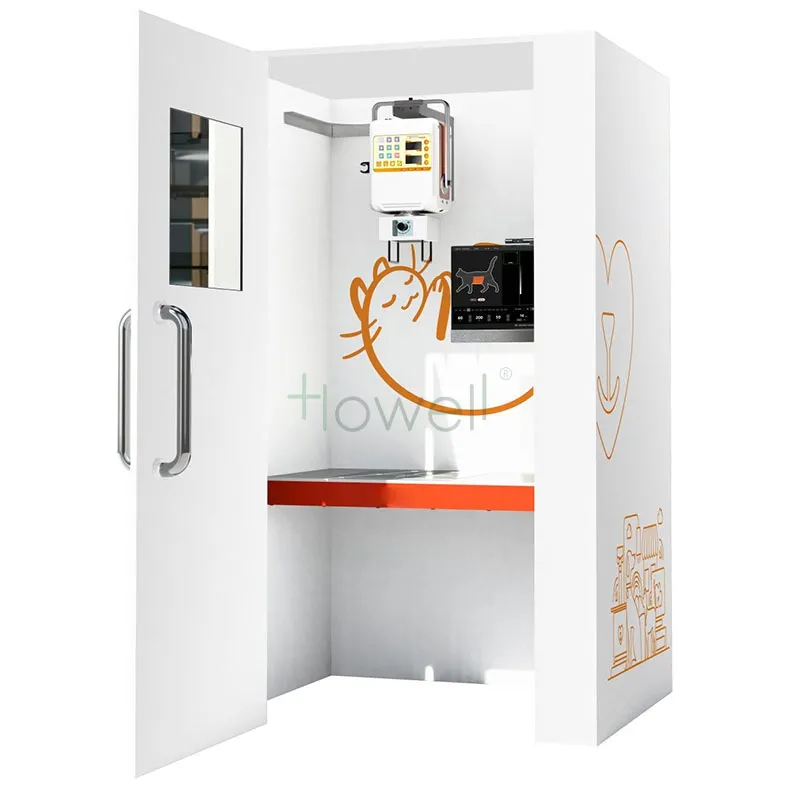

Space-Efficient & Mobile: Occupies a small area and can be moved at will. The self-shielding DR provides a quiet, safe, and comfortable shooting environment for pets.
-
Integrated Radiation Shield: The entire wall features lead protection, meeting EIA requirements without needing extra room decoration.
-
Durable Pet Bed: Made of high-grade Compact Laminate material, the bed panel is wear-resistant and scratch-resistant, ensuring optimal X-ray penetration and maximum load-bearing for large animals.
Product Parameters
| Component |
Parameter |
Specification |

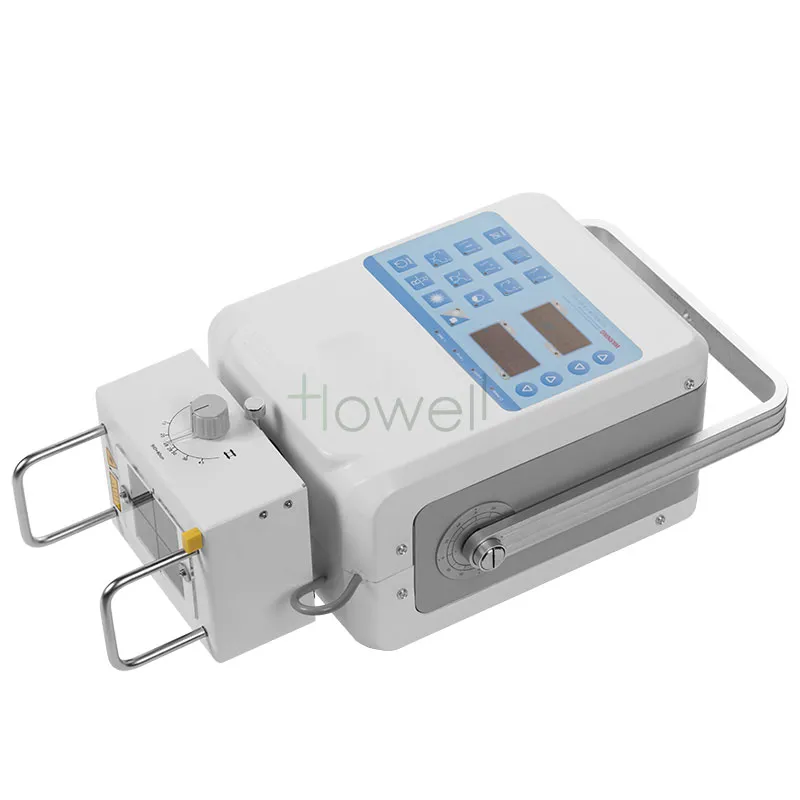

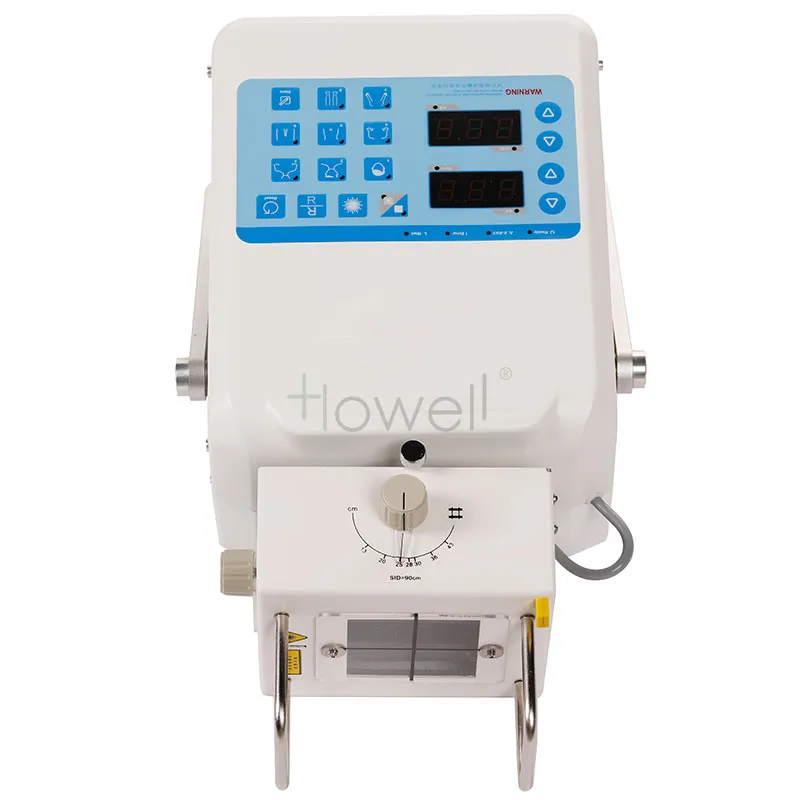

| X-ray Portable Unit |
Output Power |
5.3 kW |
| Max kV |
125 kV |
| Max mA |
100 mA |
| Focal Spot |
0.6mm × 1.8mm |
| Anode Heat Content |
42 kHU |

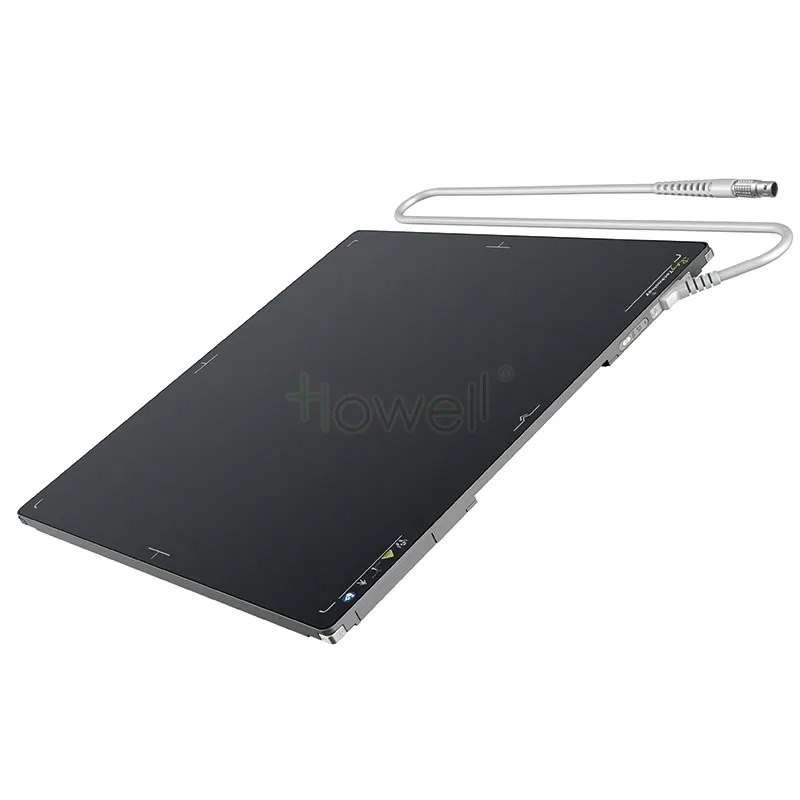

| Flat Panel Detector |
Scintillator |
Csl & a-Si |
| Pixel Pitch |
139μm |
| Number of Pixels |
2912 × 2912 |
| Active Area |
17 × 17 inches |

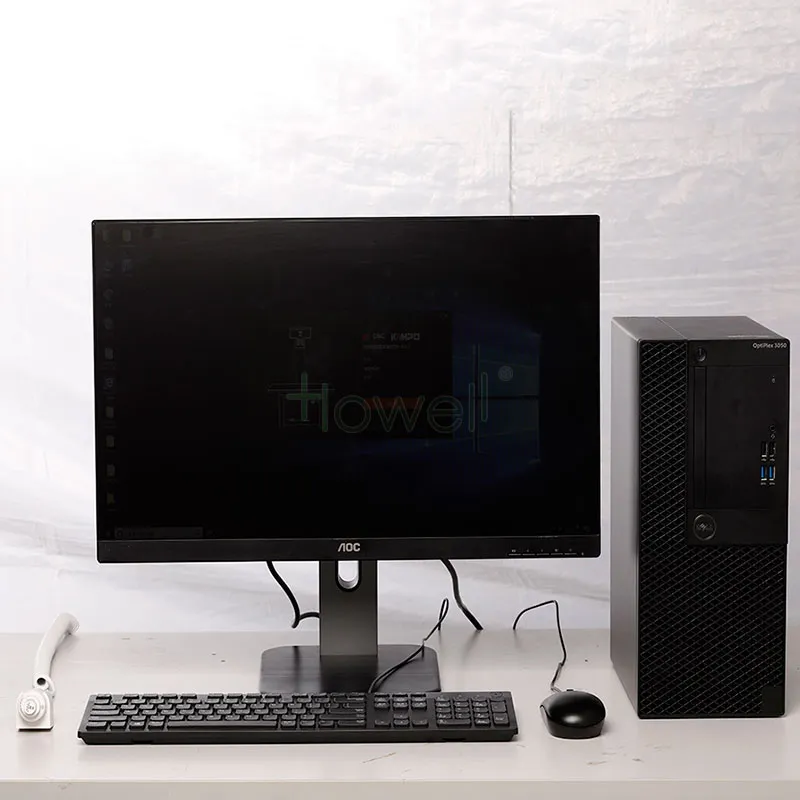

| Workstation |
Specifications |
Touch screen all-in-one, 24 inches, 8G RAM, 1T Hard Disk |
Technical Excellence
We are a leading manufacturer of high-tech medical equipment used in Operating Rooms and ICUs. Our core R&D team possesses over 10 years of experience, with continuous investment into scientific technology innovation. We aim to exceed international standards through leading products and perfect service, helping partners create social value through advanced technology application.
Frequently Asked Questions
What is the main power output of the HE-DR CAT?
The system features a high-performance portable X-ray unit with a 5.3 kW output power, reaching up to 125 kV.
Do I need to install lead lining in my clinic room?
No, the system is designed with a self-contained anti-radiation shield that provides complete lead protection, eliminating the need for room re-decoration.
Is the imaging bed suitable for large dogs?
Yes, the bed is constructed from high-grade Compact Laminate material with maximum load-bearing capacity, designed to accommodate large animals.
What kind of detector does the system use?
It utilizes a high-resolution 17x17 inch flat panel detector with Csl & a-Si technology for superior image quality.

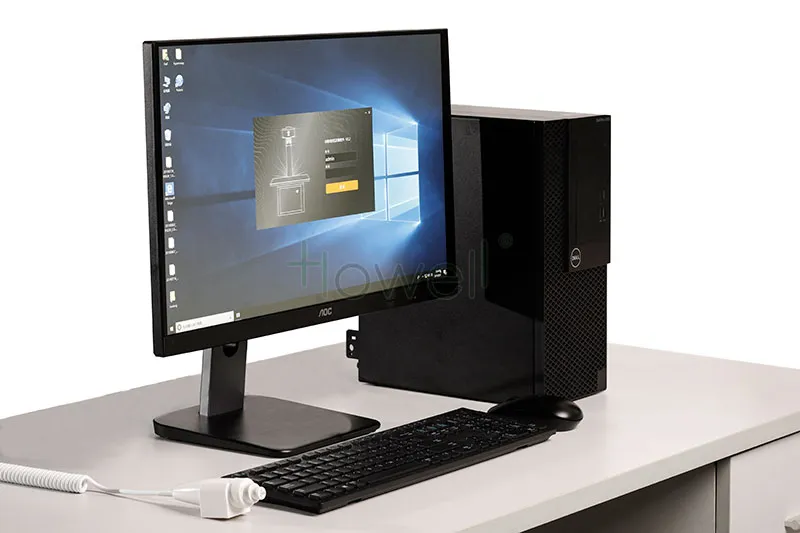

What is included in the workstation?
The system comes with a 24-inch touch screen all-in-one machine, equipped with 8G RAM and a 1T hard disk for efficient data storage.
How is the equipment protected during international shipping?
Every unit is securely packaged in a professional wooden case to ensure safety and prevent damage during long-distance transport.
