Basic Info
Usage
Medical Ward Calling System
Language
English/Customized
Application
Hospital Ward, Clinic, Nursing House
Communication
200m Max Distance
Product Description
Nurse Call System With Handset provides essential communication between patients in wards and medical personnel in nurse offices. Featuring a deluxe plastic master telephone housing, electronic information summary, and audio number reporting, this system offers a high performance-to-cost ratio for modern healthcare facilities.

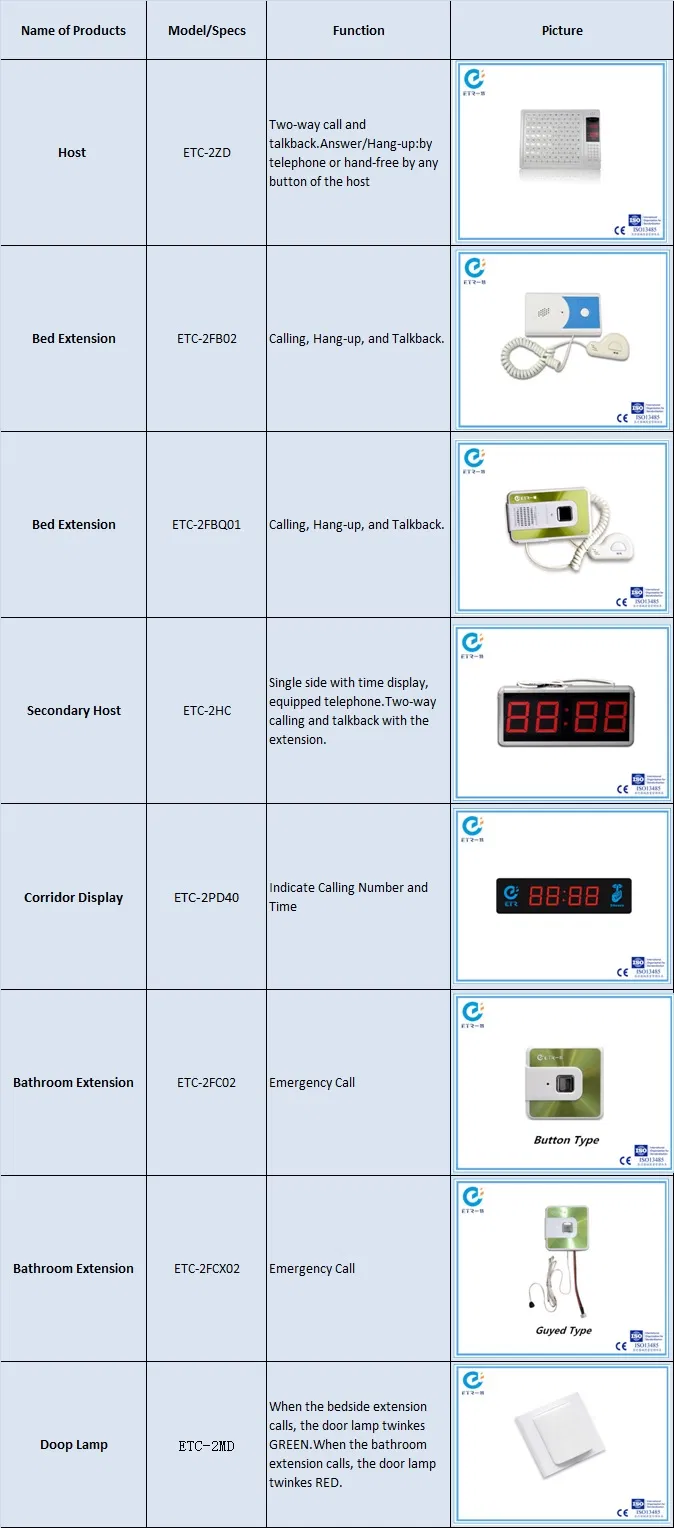

System Composition
Available in two-wire and four-wire configurations. The standard setup includes:

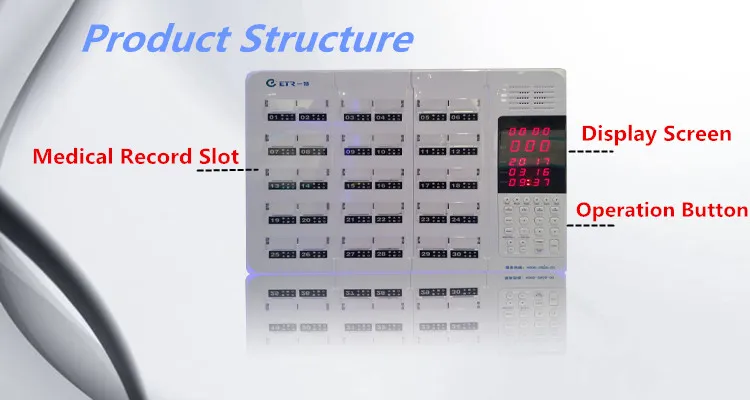

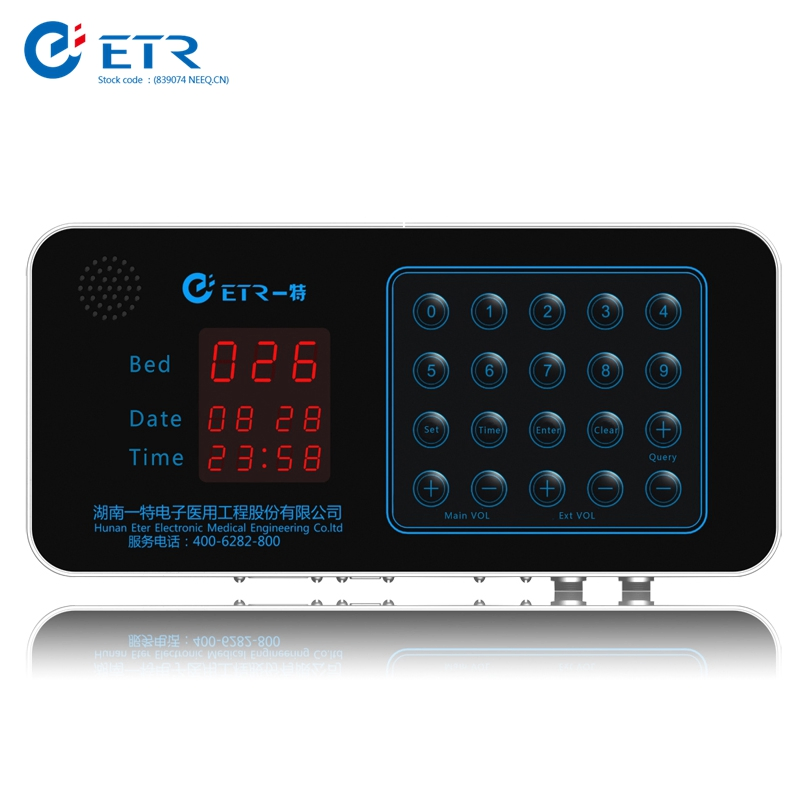

- System Host (installed at nurse station)

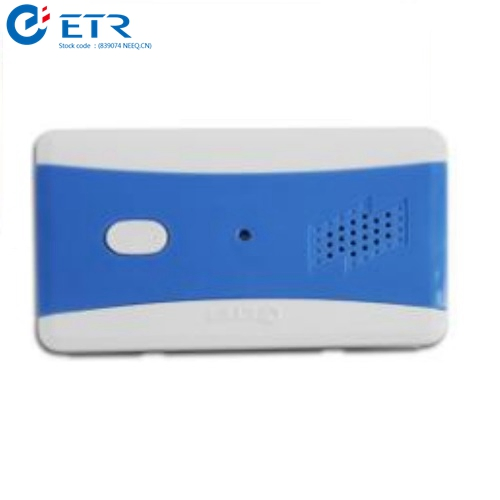

- Bed Extension with Handset

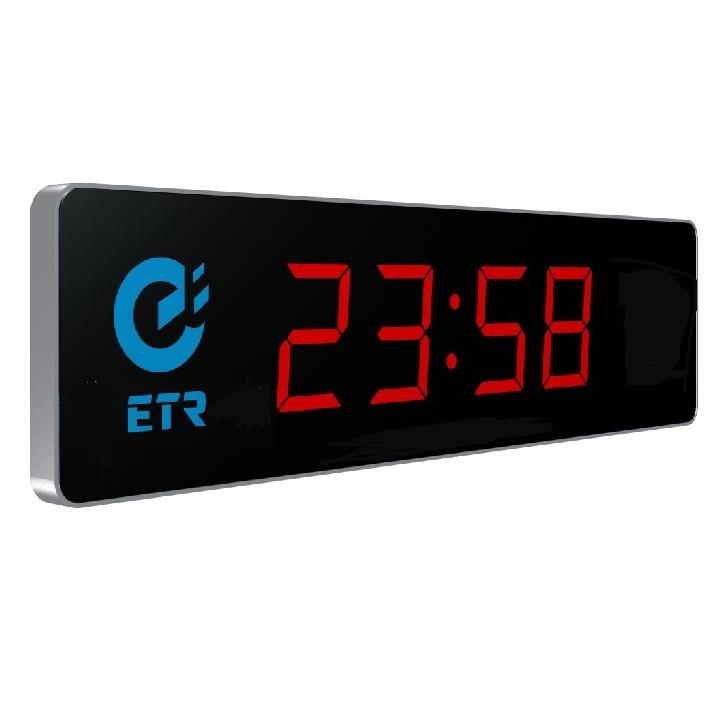

- Corridor Display
- Door Lamp Indicator

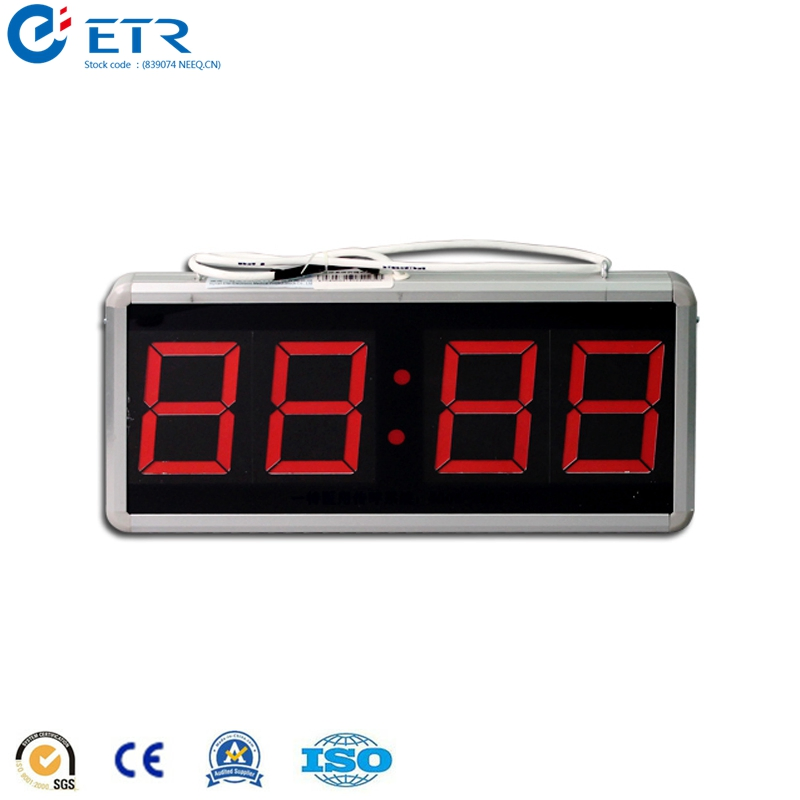

- Secondary Host (for doctor offices)

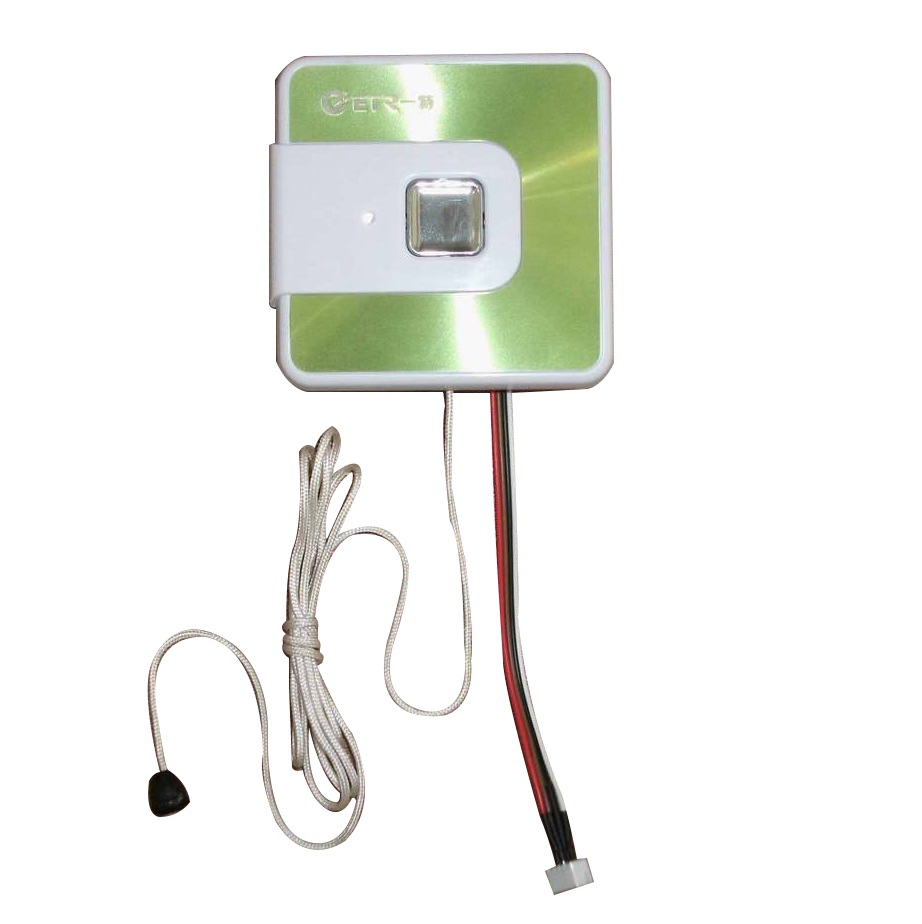

- Optional: Bathroom extensions and music modules
Key Features
- Two-way call and talkback functionality.
- Supports up to 32 bed extensions per host.
- Visual indicators for room, bed, and bathroom numbers.
- Adjustable volume with dedicated night mode.
- 4-level nurse priority setting (Red, Yellow, Green indicators).
- Real-time clock and patient number counting.
- Freely configurable host number-telling rounds.
Technical Parameters
| Rated work voltage | 220V±22V 50HZ±1HZ |
| Rated power | 15W |
| Static state power consumption | 10W |
| Working condition | Temperature 0ºC-40ºC / Humidity <=85% |
| Max communication distance | 200 Meters |
Core Advantages
PrecisionSimultaneous calling of multiple extensions without omission.
FlexibleUser-friendly operation; two-wire system is easy to install and maintain.
CredibilityProvides reliable solutions for hospitals, care groups, and nursing homes.
SupportComprehensive warranty and ongoing maintenance availability.
Packing & Delivery
| Machine size | 610mm*430mm*50mm |
| Carton size | 730mm*495mm*290mm |
| Packaging | Inner plastic bag, middle foam, outer carton |
| Gross Weight | 12 Kgs |
| Delivery time | Within 3-18 working days after payment |
Warranty & Service
We guarantee the proper functioning of the equipment for 12 months from the date of commissioning or 18 months from delivery. During this period, free maintenance is provided for any manufacturing defects.
Our Professional Services
- Quarterly trace file surveys for every sold product.
- Free remote instruction and operational training.
- 7*24 hours online technical support with 48-hour problem resolution.
- On-site services and repairs available upon request.
- Spare parts provided at competitive pricing beyond the warranty period.
Frequently Asked Questions
What are the main components of the Nurse Call System?
The system consists of a Host for the nurse station, Secondary hosts for duty rooms, Corridor displays for visual alerts, and extensions for beds and bathrooms.
How does a patient initiate a call?
Patients simply press the button on their bed extension handset. This triggers an alert at the nurse station host and shows the location on the corridor display.
Is two-way communication supported?
Yes, the system allows for clear two-way talkback between the medical staff at the host station and the patient at the bed extension.
How many beds can one system host manage?
The standard host can receive and manage calls from up to 32 bed extensions simultaneously.
What is the maximum effective distance for communication?
The system supports a maximum communication distance of 200 meters, making it suitable for most hospital ward layouts.
Can the system be customized for different languages?
Yes, while English is the standard, the system language and reporting can be customized to meet specific regional requirements.
