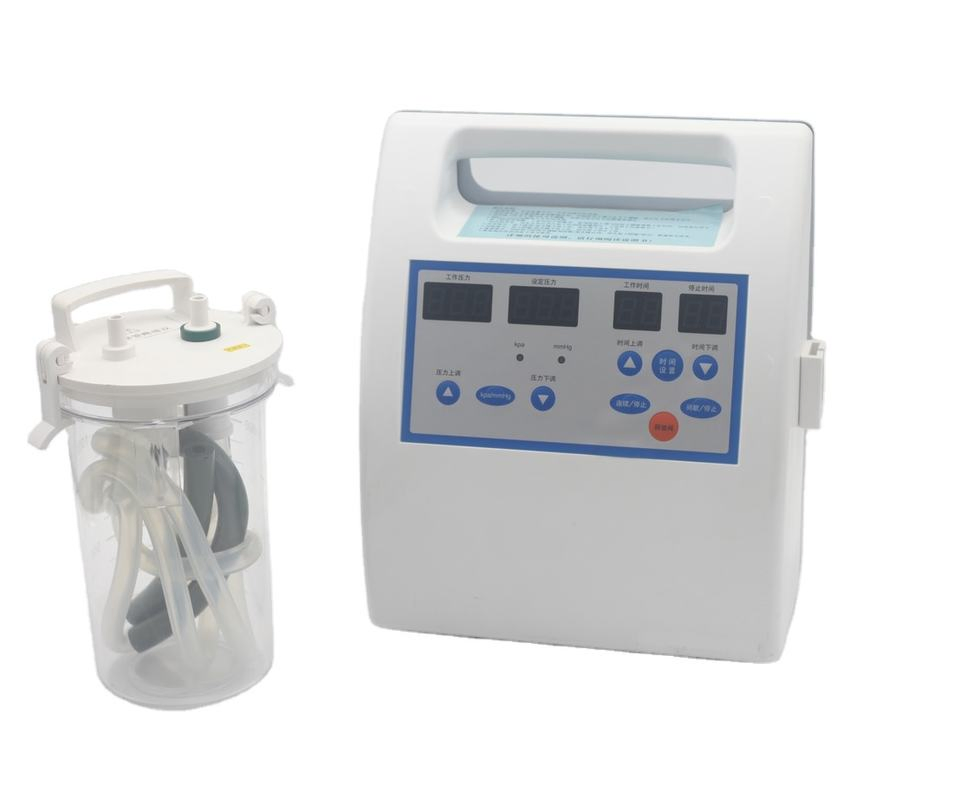

Our Negative Pressure Wound Therapy (NPWT) System is a cutting-edge medical device engineered to accelerate wound healing and optimize tissue recovery—specifically tailored for orthopedic applications such as post-surgical incisions, trauma wounds, infected fractures, and soft tissue defects. By delivering controlled negative pressure to the wound bed, this system revolutionizes wound care by promoting blood perfusion, reducing edema, and eliminating exudate, creating an optimal microenvironment for rapid, granulation tissue formation.
| Category | Application Details |
|---|---|
| General Surgeries | Breast Tumor, Strumectomy; Retroperitoneal Operation |
| Orthopedics | Fractures in all parts, Femoral neck Nailing, Knee Condyle Osteosynthesis |
| Urology | Urethrotomy, Nephrectomy, Anti-reflux plasty |
| Drainage Technology | Can be used in all surgery sutured wounds where drainage end of tube is covered |

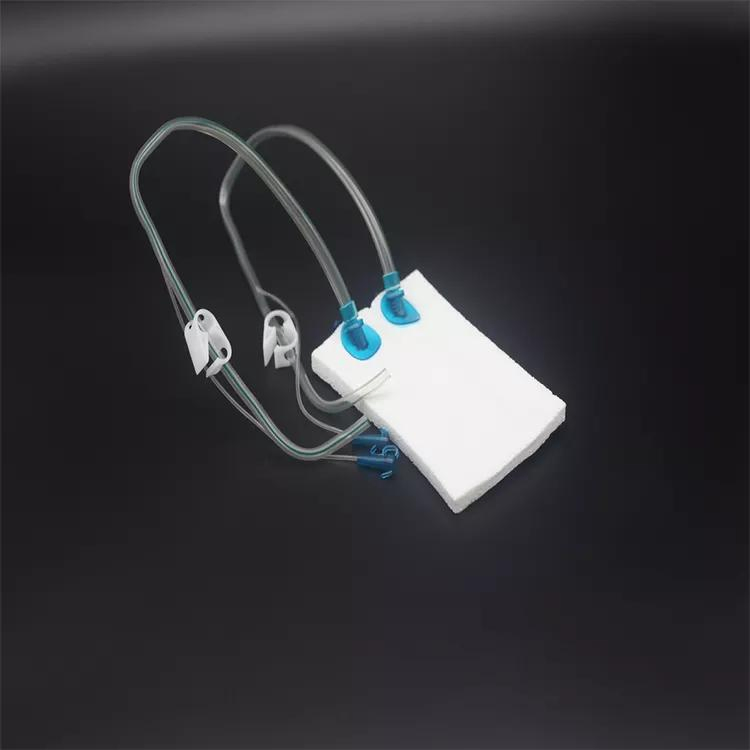

| Models | L (cm) | W (cm) | H (cm) | Tube Qty (pc) |
|---|---|---|---|---|
| AD-1-5*5*1 | 5 | 5 | 1 | 1 |
| AD-1-15*5*1 | 15 | 5 | 1 | 1 |
| AD-2-15*10*1 | 15 | 10 | 1 | 2 |
| AD-2-20*10*1 | 20 | 10 | 1 | 2 |
| AD-1-15*5*1.5 | 15 | 5 | 1.5 | 1 |
| AD-2-15*10*1.5 | 15 | 10 | 1.5 | 2 |
| AD-2-20*10*1.5 | 20 | 10 | 1.5 | 2 |

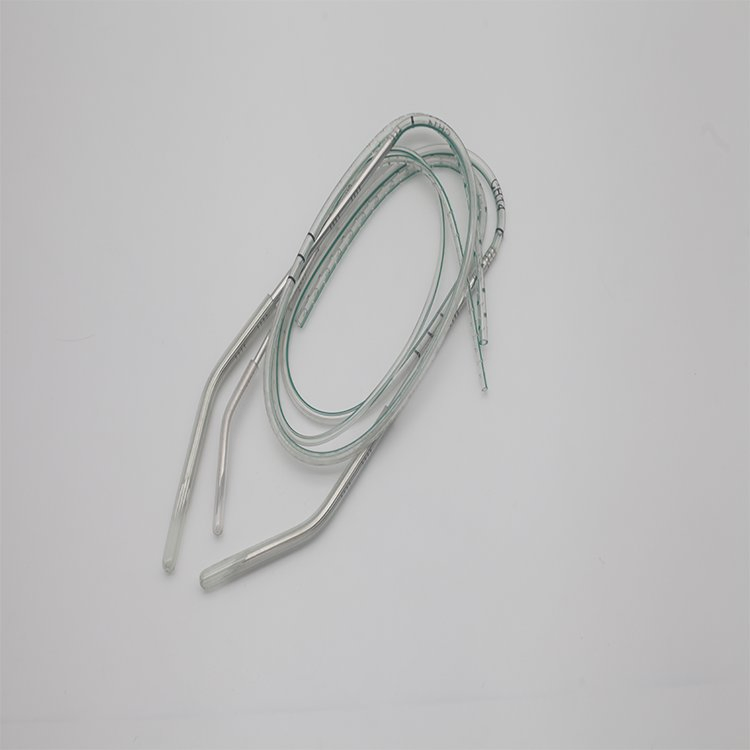

| Models | Outer Dia (mm) | Wall Thickness (mm) | Length (mm) | Holes (pc) |
|---|---|---|---|---|
| F16 | 5 | 1 | ≥300 | ≥10 |
| F18 | 6 | 1.2 | ≥300 | ≥10 |
| F22 | 7 | 1.2 | ≥300 | ≥10 |
| F26 | 8 | 1.5 | ≥300 | ≥10 |
*All technical data provided is for reference. Exact specifications depend on the latest quotation.
NPWT is a medical treatment that uses a vacuum pump to create a controlled negative pressure environment around a wound, which helps remove excess fluids, reduce swelling, and promote faster tissue growth and healing.
It is primarily used for orthopedic trauma, post-surgical incisions, infected fractures, soft tissue defects, and general surgeries such as breast tumor removal or retroperitoneal operations.

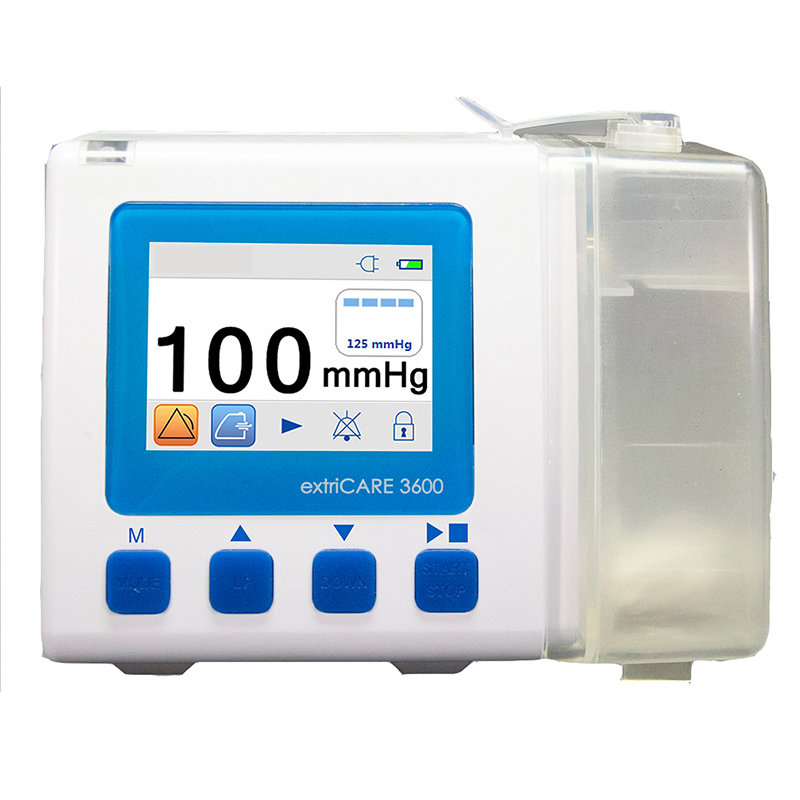

Yes, our system offers precision control with adjustable negative pressure settings ranging from -50 to -200 mmHg to suit different clinical requirements.
Absolutely. The pump unit is designed to be compact and lightweight, allowing for ambulatory use so patients can maintain mobility during their treatment cycle.
The system is equipped with multiple safety mechanisms, including real-time pressure alarms, leak detection sensors, and low-battery indicators to ensure continuous and safe operation.
Our NPWT system is fully compliant with international medical standards, holding both CE and ISO13485 certifications.
