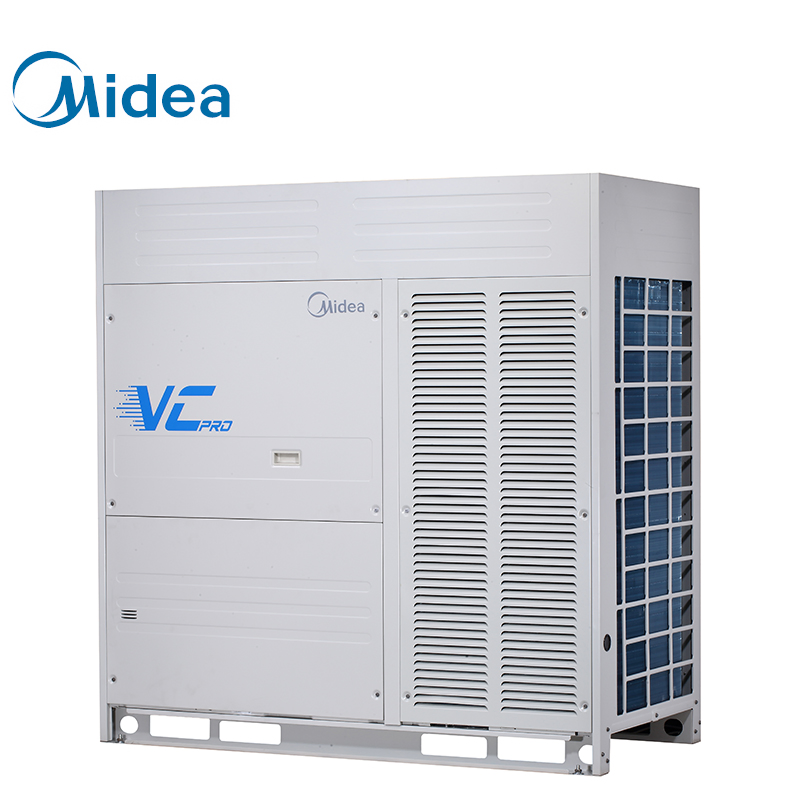

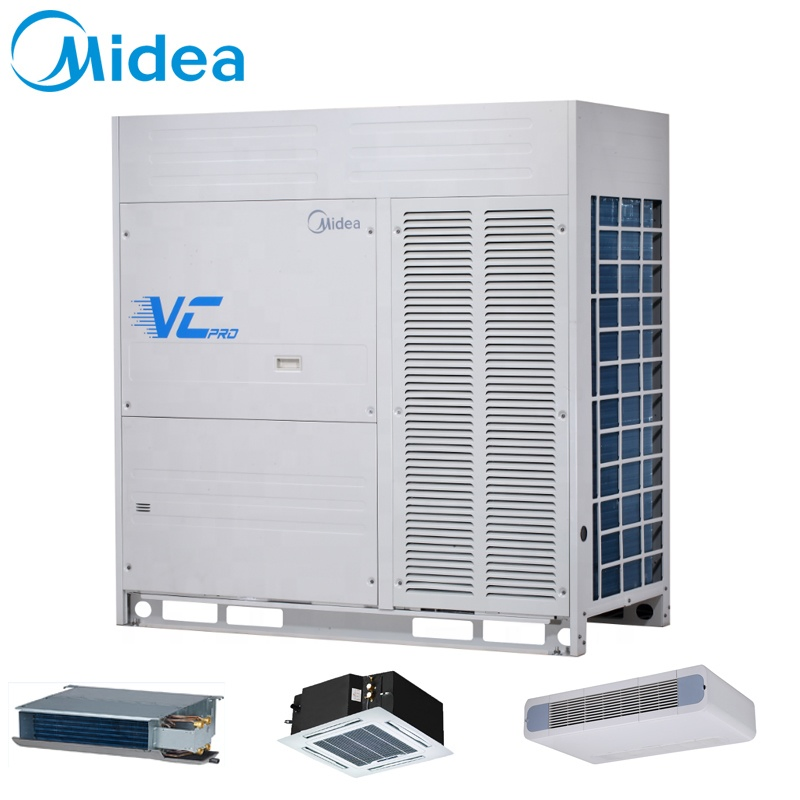

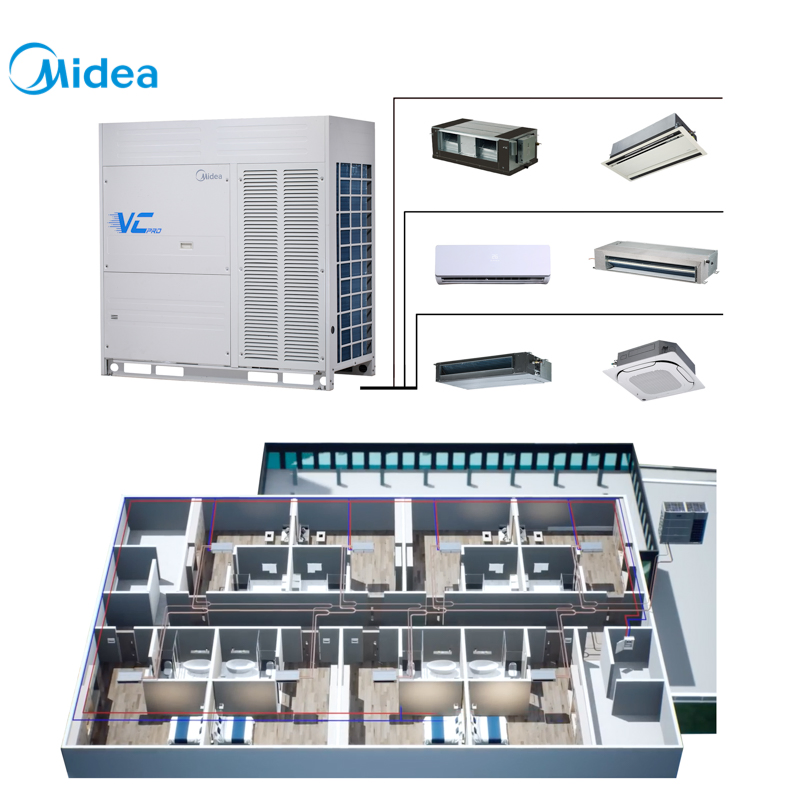

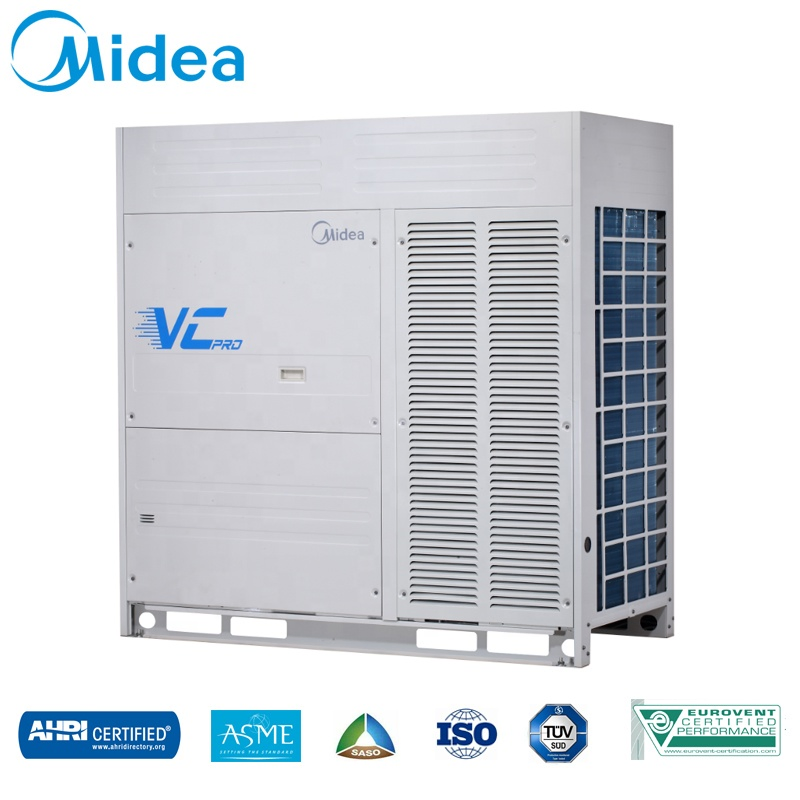

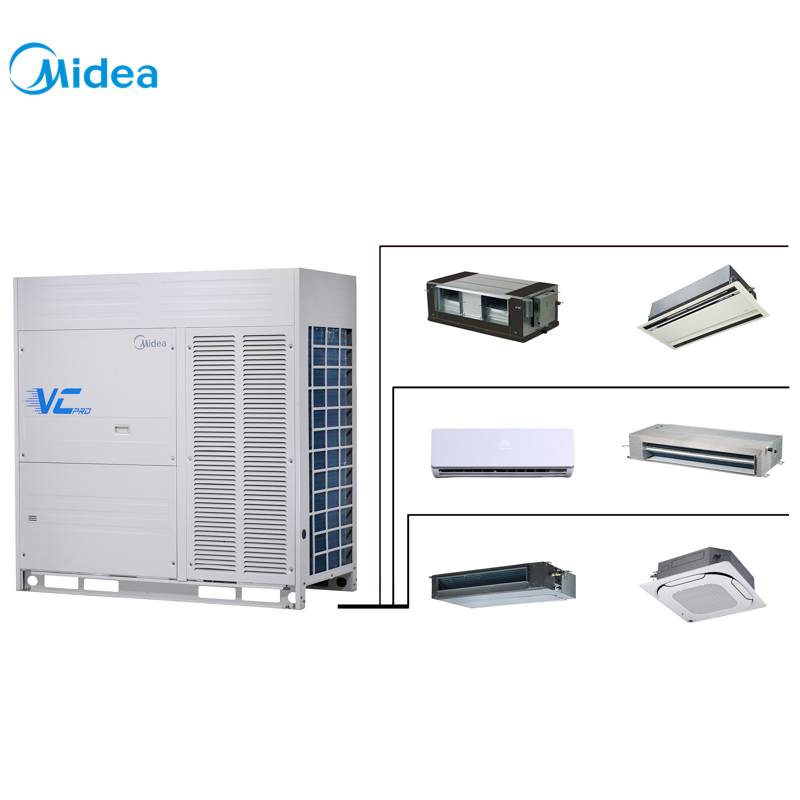

❄️ Central VRF Air Conditioner System
As the leading VRF product, V6 boasts substantial benefits such as the single capacity can be up to 90HP which is leading in HVAC industry; EVI compressor significantly increases heating and cooling capacity under extreme conditions, EMS realizes that evaporating temperature (in cooling) and condensing temperature (in heating) are automatically adjusted according to both indoor and outdoor temperature to maximize the comfort and energy efficiency.
📊 Technical Parameters
| Capacity | 8HP-90HP |
| Power Supply | 220/3/50(60)V/Ph/Hz |
| Cooling Performance | Capacity | 22.4KW-255KW (76.5-870.9kBtu/h) |
| Power Input | 5.25-82.53KW |
| EER | 4.27-3.25kW/kW |
| Compressors | Type | DC Inverter |
| Fan Motors | Type | DC |
| Refrigerant | Type | R410A |
| Airflow Rate | 11000-25000 m3/h |
| Noise Level | 57-68dB(A) |
| Ambient Temp | Cooling Mode | -5 to 55ºC |
❓ Frequently Asked Questions
Q1: What is the maximum cooling capacity of this VRF system?

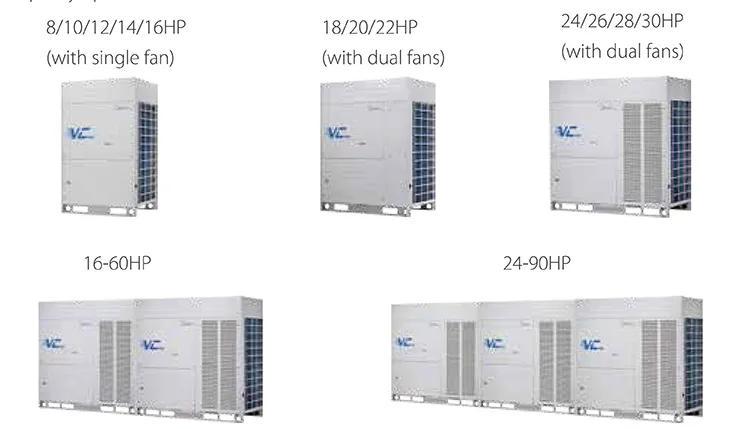

A: The system offers a wide capacity range from 8HP up to 90HP when multiple units are combined.
Q2: Can the system operate in extreme outdoor temperatures?

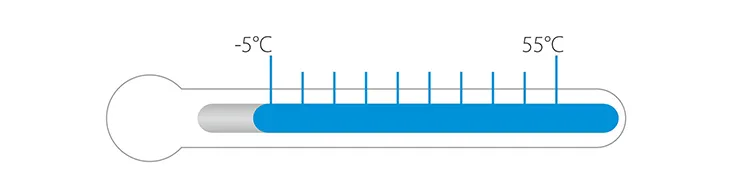

A: Yes, the VC Pro VRF operates stably in ambient temperatures ranging from -5ºC to 55ºC in cooling mode.

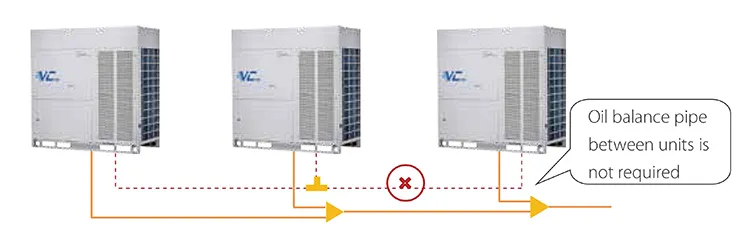

Q3: Does the installation require an oil balance pipe?
A: No, thanks to the new advanced oil management system, an oil balance pipe is not required.
Q4: What type of compressor and fan motor are used?
A: The system utilizes high-efficiency DC Inverter compressors and DC fan motors for optimal energy performance.
Q5: What is the expected lifespan of the system?
A: The system is designed with high-durability materials like galvanized sheets, offering a lifetime of over 20 years.
Q6: Is this system suitable for hospital environments?
A: Yes, it features low noise levels (57-68dB) and high corrosion durability, making it ideal for hospitals and healthcare facilities.
