Basic Specifications
Operating Voltage
220/3/50(60)V/pH/Hz
Application Fields
Food Processing, Healthcare
Cooling Capacity
22.4kw-255kw
Compressor Type
DC Inverter

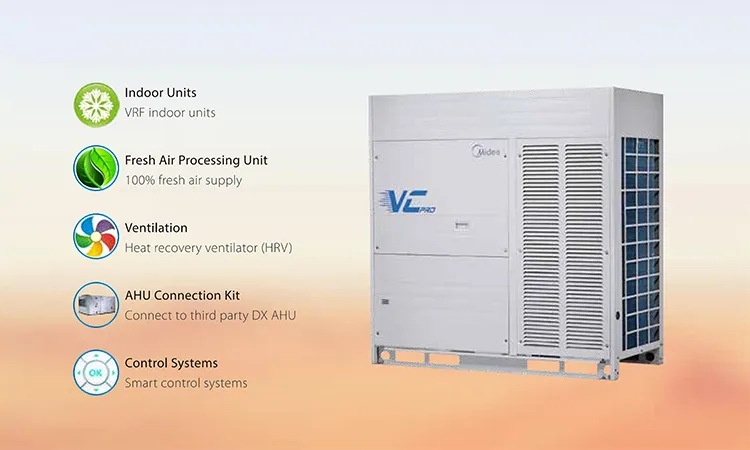

Product Overview

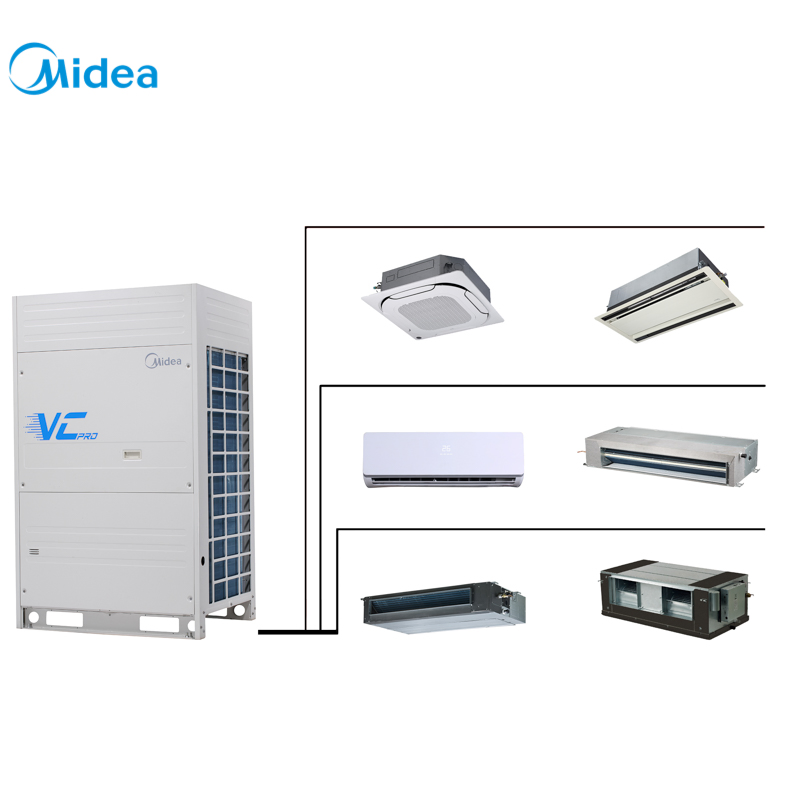

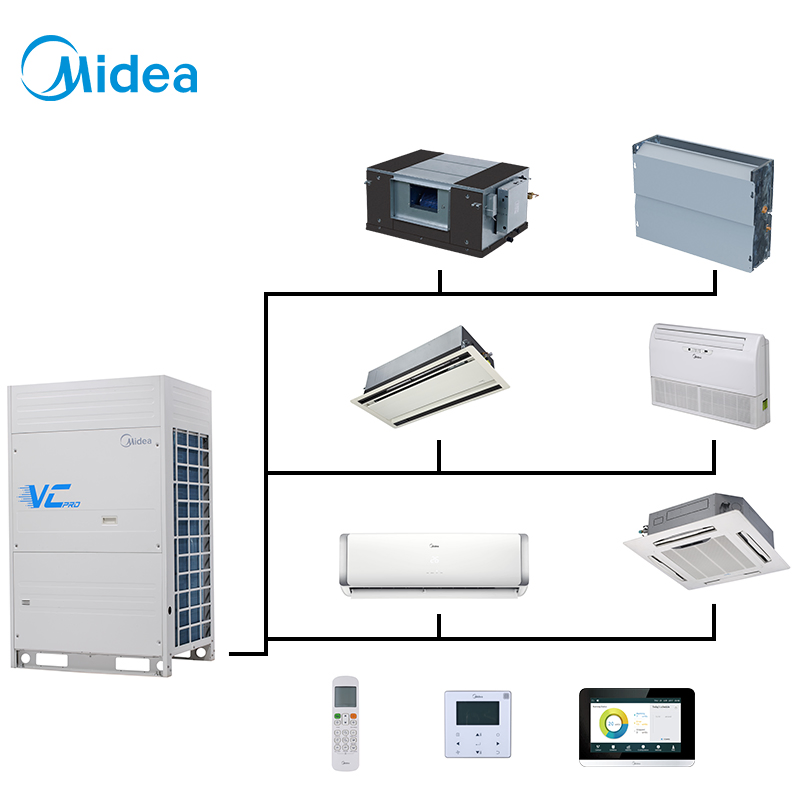

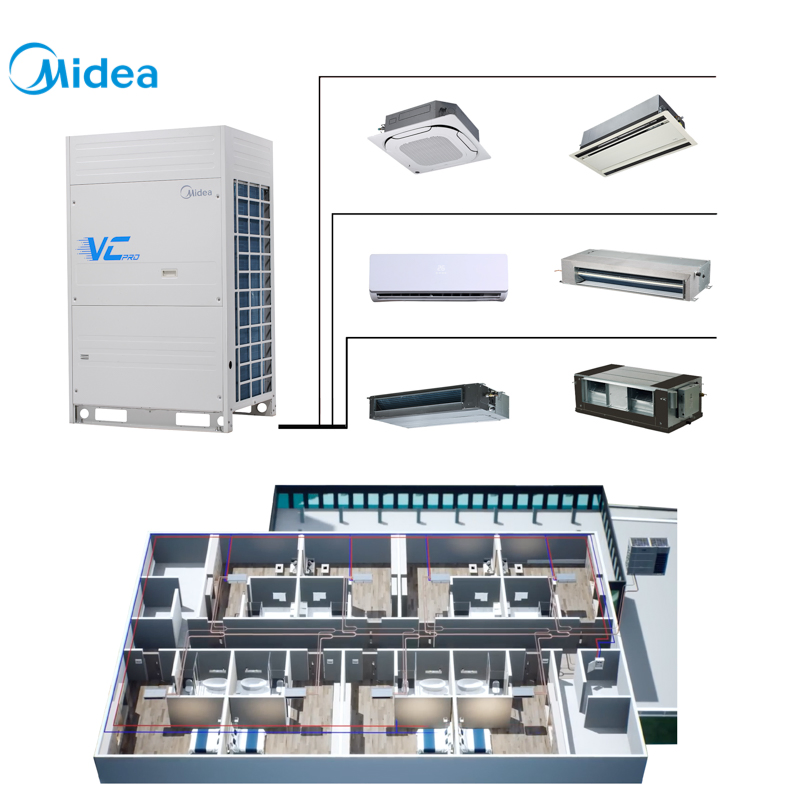

Central VRF Air Conditioner System for Large Scale Applications
As a leading VRF product, this system boasts substantial benefits: single unit capacity can reach up to 30HP, and combined systems up to 90HP. The EVI compressor significantly increases heating and cooling capacity under extreme conditions. EMS realizes automatic adjustment of evaporating and condensing temperatures based on indoor and outdoor conditions to maximize comfort and energy efficiency.
Technical Parameters
| Capacity |
8HP-90HP |
| Power supply |
220/3/50(60)V/Ph/Hz |
| Cooling |
Capacity (kW) |
22.4KW-255KW |
| Capacity (kBtu/h) |
76.5-870.9kBtu/h |
| Power input |
5.25-82.53KW |
| EER |
4.27-3.25kW/kW |
| Compressors |
Type |
DC inverter |
| Fan motors |
Type |
DC |
| Refrigerant |
Type |
R410A |
| Airflow Rate |
11000-25000 m3/h |
| Ambient Temp |
Cooling Range |
-5 to 55ºC |
Key Advantages
-
01

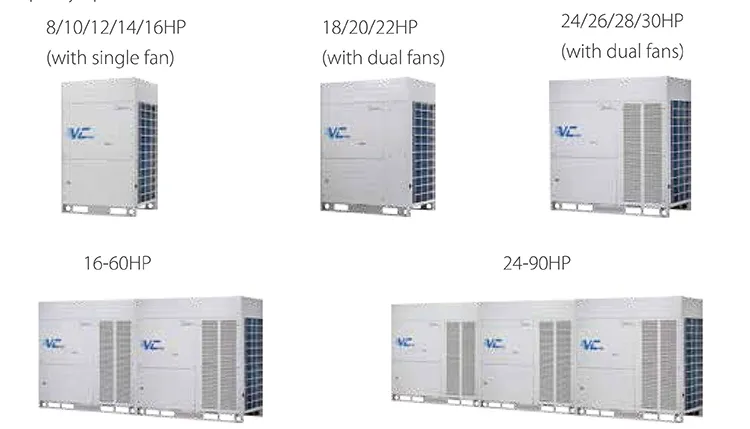

Wide Capacity Range:
Single unit capacity up to 30HP with small footprint. Combined units can reach 90HP.
-
02

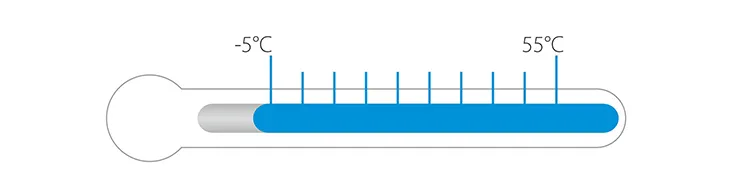

Wide Operation Range:
Operates stably in ambient temperatures from -5ºC up to 55ºC in cooling mode.
-
03

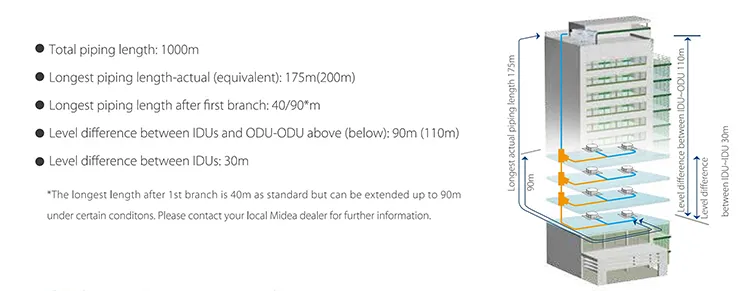

Long Piping Capability:
Flexible installation with high piping length allowance.
-
04

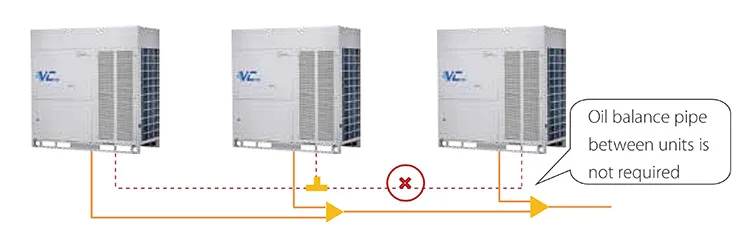

Advanced Oil Management:
Oil balance pipe is not required due to the new management system.
Project Showcase
Frequently Asked Questions
Q: What is the maximum cooling capacity of this VRF system?
A: The system offers a wide capacity range, with individual units up to 30HP and combined systems reaching a maximum of 90HP (255kW).
Q: Can this system operate in extreme outdoor temperatures?
A: Yes, it is designed for a wide operation range, supporting stable cooling performance in ambient temperatures from -5ºC to 55ºC.
Q: Does the installation require an oil balance pipe?
A: No, thanks to the advanced oil management system, an oil balance pipe is no longer required, simplifying the installation process.
Q: What type of compressor is used in the V6 series?
A: The system utilizes a high-efficiency DC Inverter EVI compressor, which enhances performance under extreme conditions.
Q: Is this VRF system suitable for hospital environments?
A: Yes, its precise control, high efficiency, and reliable operation make it ideal for healthcare facilities and hospitals.
Q: What refrigerant is used in this model?
A: This VRF system uses R410A refrigerant, which is standard for modern high-performance air conditioning systems.
