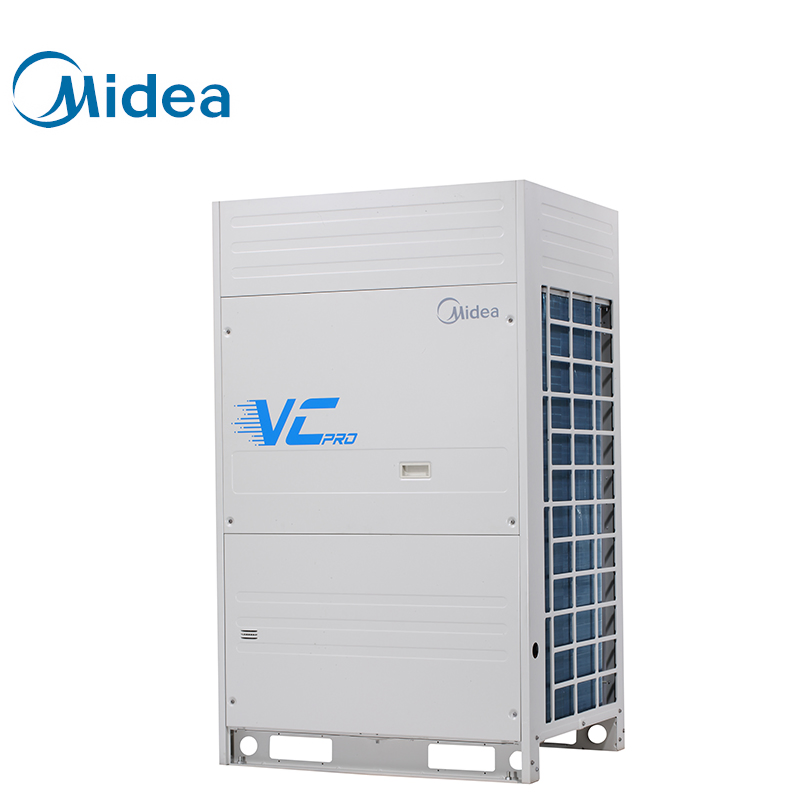

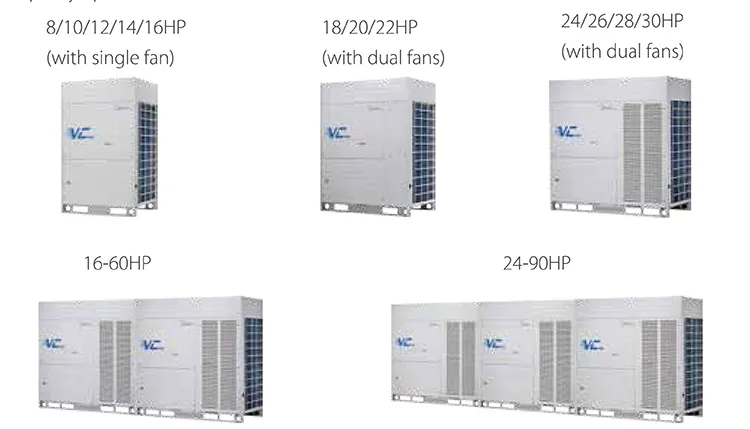

As a leading VRF product, the V6 series boasts substantial benefits. The single unit capacity can reach up to 30HP, and combined systems can scale up to 90HP, leading the HVAC industry. The EVI compressor significantly increases heating and cooling capacity under extreme conditions.
EMS Technology: Realizes that evaporating temperature (in cooling) and condensing temperature (in heating) are automatically adjusted according to both indoor and outdoor temperatures to maximize comfort and energy efficiency. The intelligent control system adds significant value to the V6 product line.
| Category | Specifications | |
| Capacity | 8HP - 90HP | |
| Power Supply | 220/3/50(60)V/Ph/Hz | |
| Cooling Performance | Capacity | 22.4KW - 255KW (76.5 - 870.9kBtu/h) |
| Power Input | 5.25 - 82.53KW | |
| EER | 4.27 - 3.25 kW/kW | |
| Compressor | Type | DC Inverter |
| Fan Motor | Type | DC (Max. ESP: 20Pa default; 60Pa custom) |
| Refrigerant | Type | R410A |

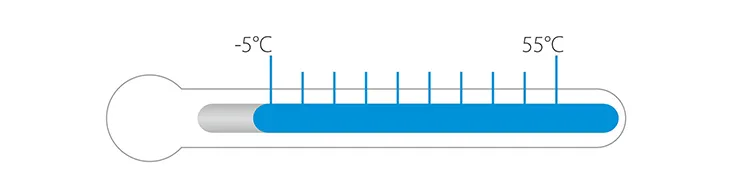

| Ambient Temp | Cooling | -5ºC to 55ºC |
