Hospital Equipment of Medical Suction Devices for Ncp Ward

Customization:	Available
Oil or Not:	Oil Free
Structure:	Rotary Vacuum Pump

Basic Information

Model NO.:ETV

Exhauster Method:Positive Displacement Pump

Vacuum Degree:Vacuum

Work Function:Pre-Suction Pump

Working Conditions:Dry

Pumping Principle:Positive Displacement Pump

Construction:Rotary Vacuum Pump

Oil:Oil Free

Certificate:CE / ISO / SGS

Name:Medical Suction Devices

Product Overview

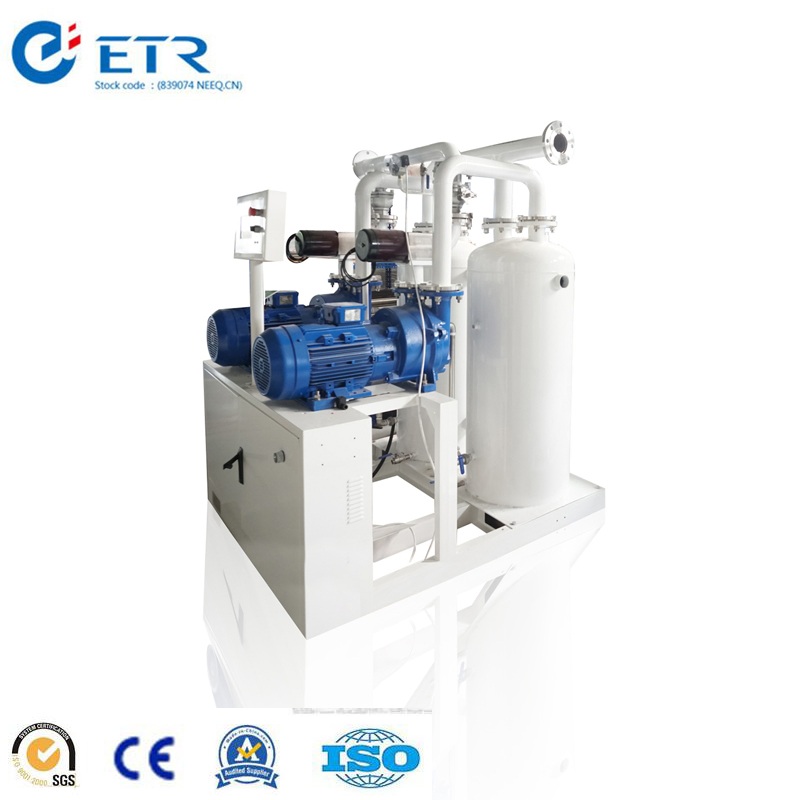

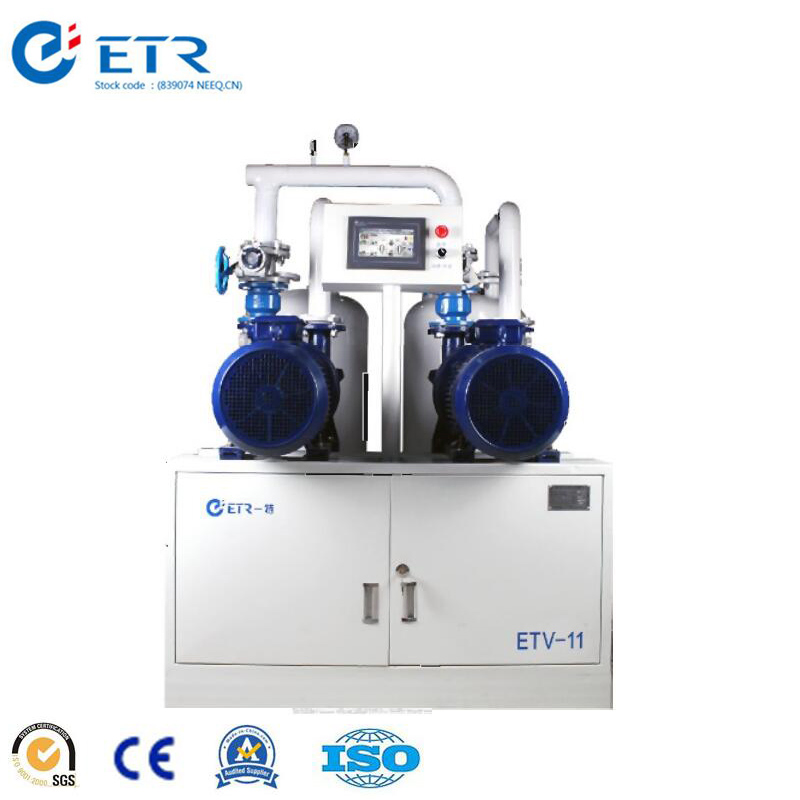

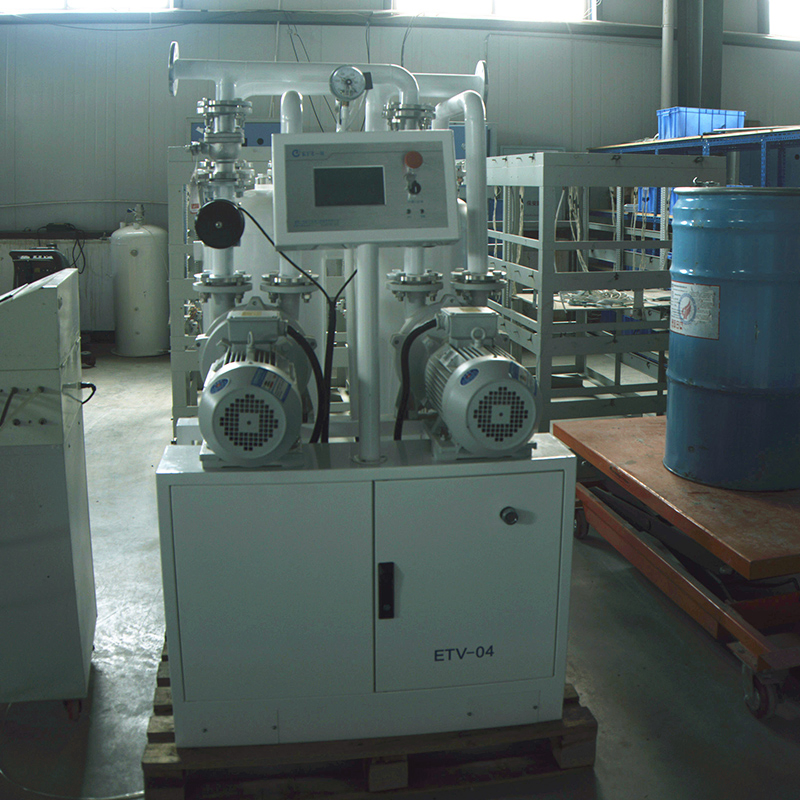

The integrated vacuum pump unit is composed of a water-ring vacuum pump, a gas-water separator, a vacuum solenoid valve, pipe fittings, and an electrical control system. It is a simple, safe, and reliable device that continuously serves hospital wards all day long. The negative pressure is sourced directly from the high-performance vacuum pump unit.

Key Advantages

Dynamic control of water cooling temperature and water level for optimal operation.
Automatic switching between units based on gas consumption demands.
UV disinfection and sterilization ensuring sterile and environmental emissions.
Highly intelligent automatic electrical control system.
Dynamic process display with data storage, fault protection, and warning systems.
Open data communication interface for convenient remote management.

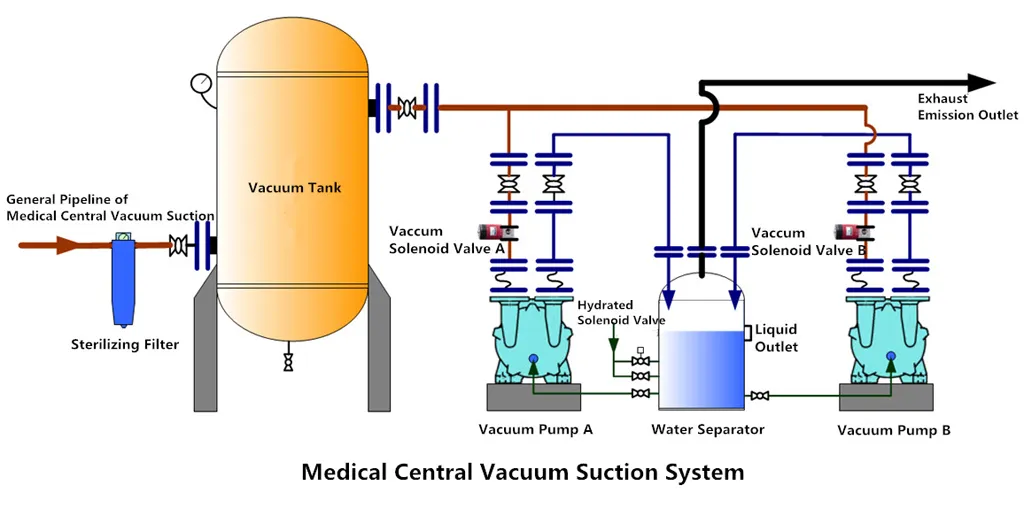

Working Principles & Certification

No.	Name	Type / Certification	Specification
1	Central Vacuum Control System	Software Copyright	Intelligent Control
2	Medical Gas System	Software Copyright	Remote Monitor
3	Vacuum Pump Unit	CE	Standard Unit
4	Electric Control Cabinet	CE	Intelligent

Model ETV-07 Technical Specifications

Item	Specification
Model	ETV-07
Flow Capacity	4.66Nm3/min
Vacuum Pressure	-0.02 ~ -0.07Mpa
Motor Power	7.5Kw
Voltage	230V, 60Hz, 3Ph
Dimensions	1,300 * 800 * 1,500 (mm)
Weight	900Kg
Noise Level	69dB(A)

Quality Control & Service

All medical suction systems undergo a rigorous quality control process. Professional experts test and commission every unit to ensure it meets qualification standards before leaving the production line.

Warranty: 12 months after on-site startup or 18 months after shipment. We provide full technical support, repairs, and replacements during the warranty period.

Frequently Asked Questions

Q: Are you a manufacturer or a trading company? A: We are a factory specialized in manufacturing medical equipment since 2003.

Q: Do you accept small orders? A: Yes, small orders are accepted. Please feel free to contact us for further discussion.

Q: Can we customize the products with our own logo? A: Yes, custom logo services are available depending on the quantity of items requested.

Q: What certifications do your medical devices hold? A: Our products currently hold CE, ISO, and SGS certifications.

Q: Is overseas technical support available? A: Yes, we provide comprehensive technical support after sales. If needed, technicians can be sent overseas to assist you.

Q: What is the noise level of the medical suction devices? A: The noise level is controlled at approximately 69dB(A), ensuring a quiet hospital environment.
