Low-Cost Anti-Decubitus Air Mattress Medical Mattress with Pump

Customization:	Available
Customized:	Customized
Certification:	ISO, RoHS, CE

Basic Specifications

Model NO.

HF6P01

Condition

New

Tilted

Alternating

Folded

Folding

Using Ambient

Indoor

Power Supply

Electric-Powered

Material

PVC (Medical Class Taiwan Nanya)

Warranty

18 Months

Weight Capacity

130kgs

Pressure Range

50-110mmhg

Specification

200*90*7cm

Zone

130 Bubbles

Product Description

Medical grade anti-bedsore and anti-decubitus air mattress system.
Designed for pressure reduction through continuous alternating movement.
Heavy-duty bubble style pads uniformly heat-sealed for long-term durability.
Ideal for patients on long-term medical treatment or with limited mobility.

This alternating system employs durable shaped air tubes and a control unit designed to achieve excellent massage effects and improved blood circulation in body tissues, helping to alleviate bed pressure sores.

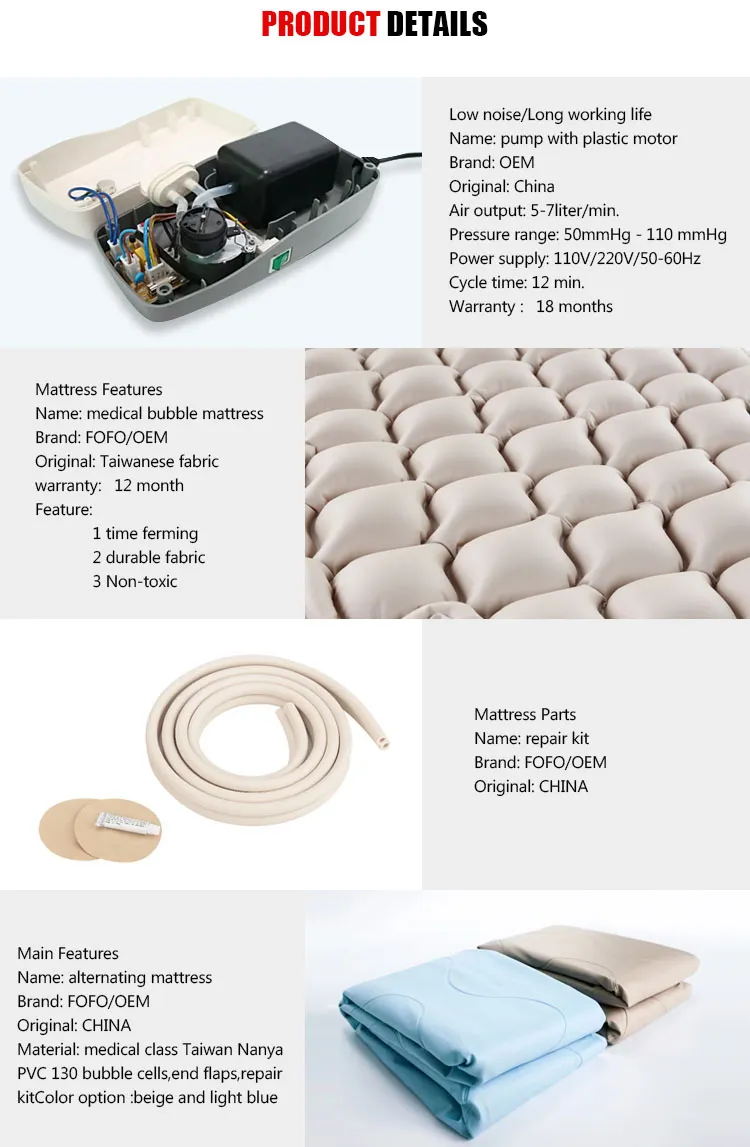

Technical Specifications

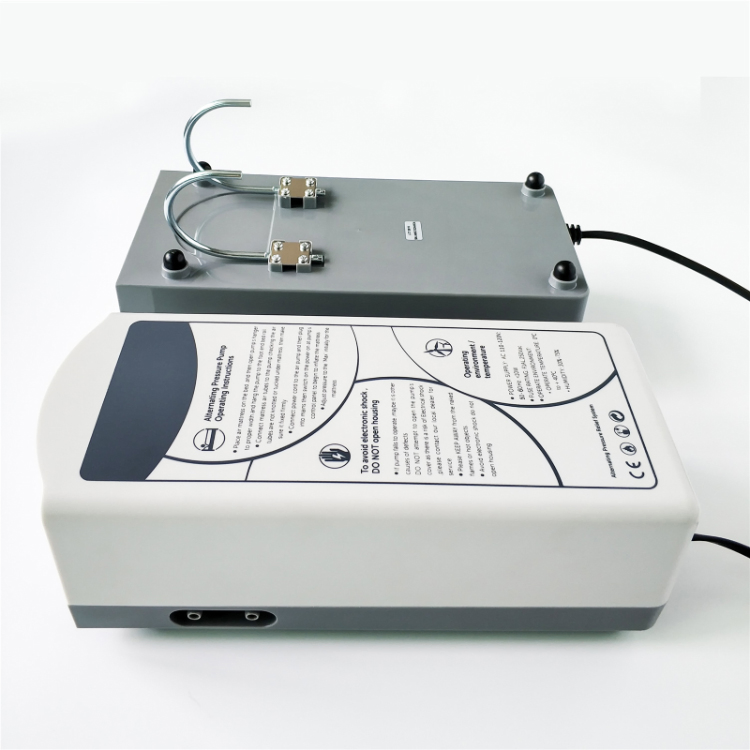

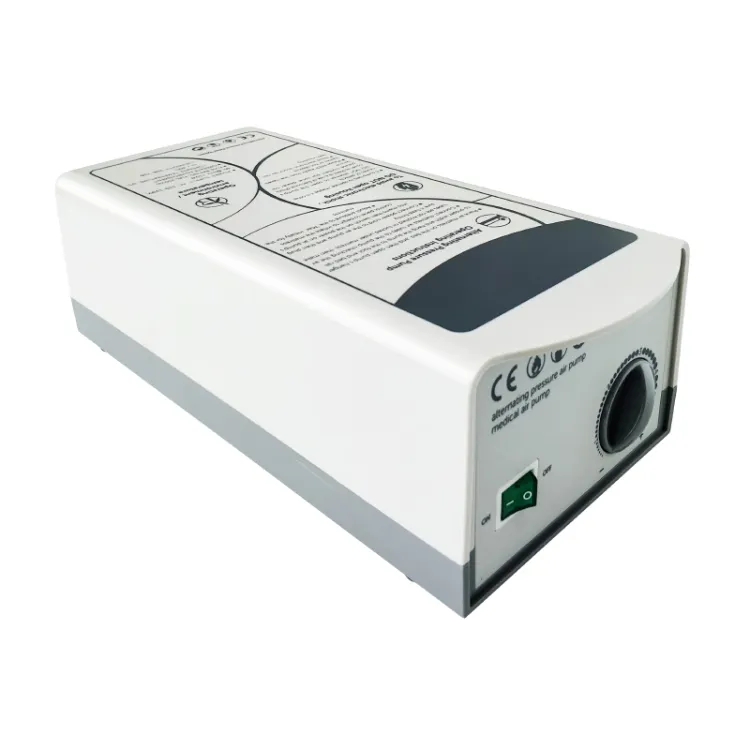

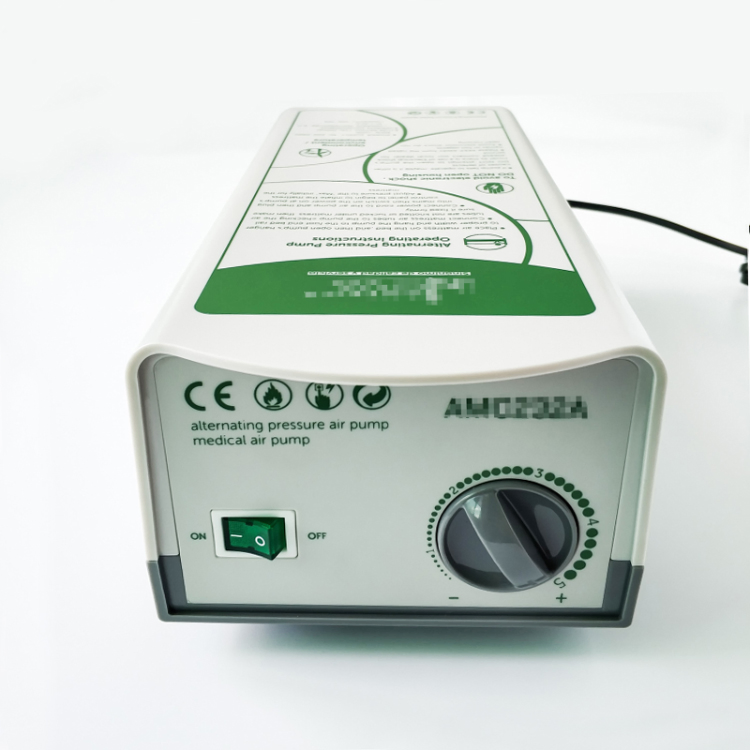

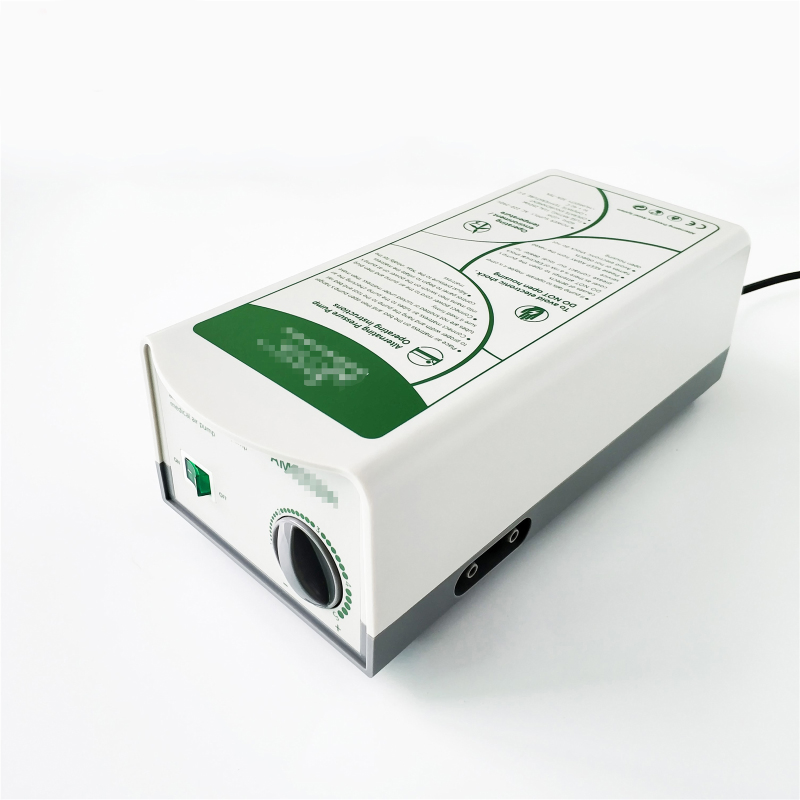

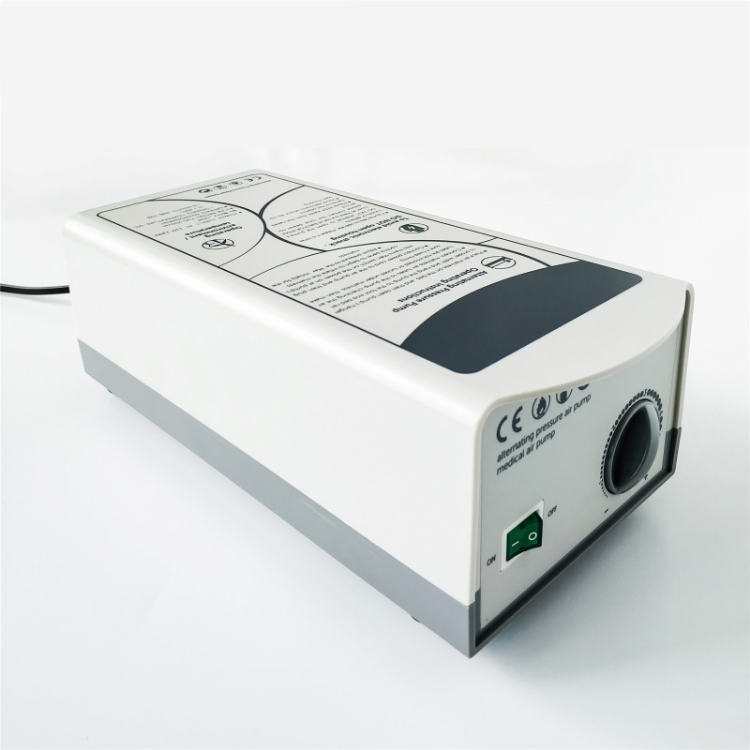

Pump Unit (HF6P01)

Feature	Specification
Power Supply	110V/220V/50-60Hz
Air Output	7-8 liter/min.
Pressure Range	50mmHg - 120 mmHg
Cycle Time	12 Min.
Power Consumption	7 W
Weight	1.6 Kg

Mattress Pad (HF6001)

Feature	Specification
Size	200cm(L) x 90cm(W) x 7.0cm(H)
Design	130 Bubbles with End Flaps
Material	Medical Class PVC (0.3mm thickness)
Weight Capacity	120-130kg

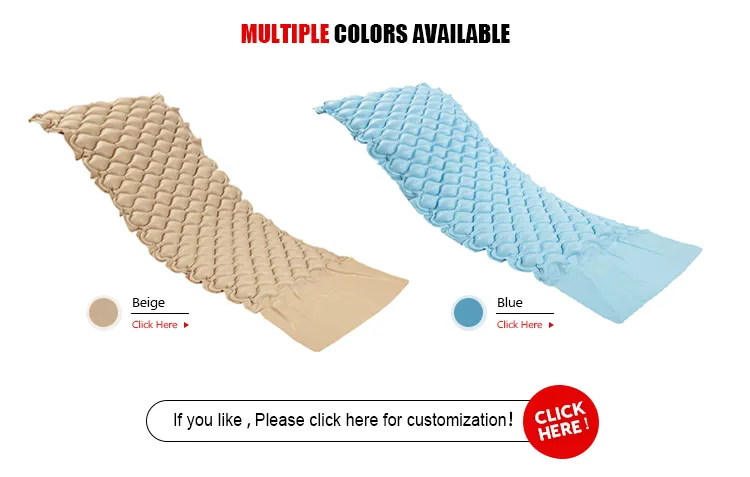

Color Options	Beige, Blue, Green

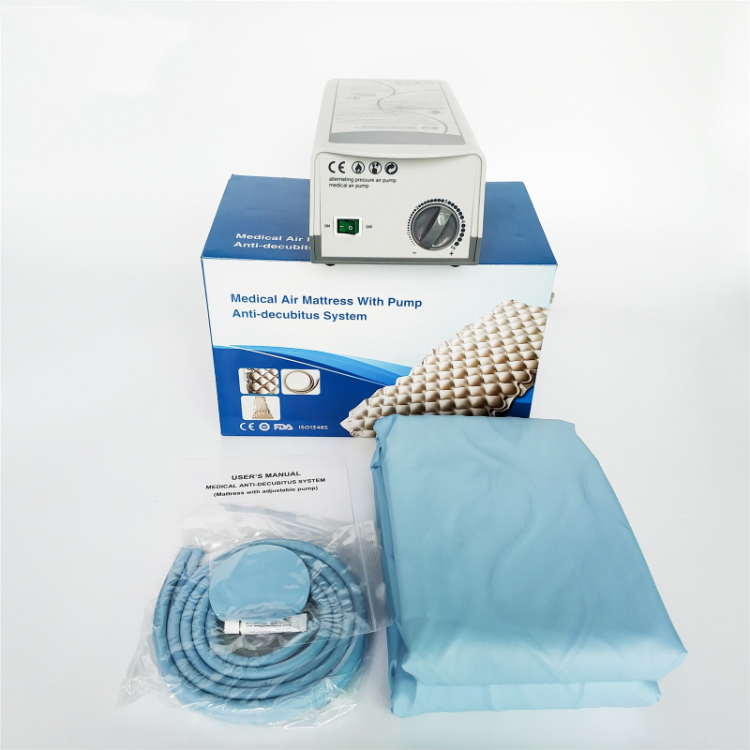

Accessories	Repair Kit, Hose 1.5M

Frequently Asked Questions

Q1: What is the primary function of this alternating pressure mattress?

It is designed to provide excellent pressure reduction and massage effects through continuous air movement, which helps prevent and treat bedsores (decubitus ulcers) for patients with limited mobility.

Q2: What is the maximum weight the mattress can support?

The mattress has a weight capacity of approximately 130kg (approx. 286 lbs).

Q3: How long is the warranty period for this system?

The air pump comes with an 18-month warranty, while the mattress pad is covered for 12 months.

Q4: What material is used for the mattress construction?

The mattress is made from medical-grade PVC (Taiwan Nanya) with a thickness of 0.3mm, ensuring durability and hygiene.

Q5: Does the pump operate loudly?

The system utilizes a high-quality aluminum compressor designed to be very silent and durable, making it suitable for home and hospital environments.

Q6: What are the dimensions of the mattress when inflated?

The standard size is 200cm in length, 90cm in width, and 7cm in height.
