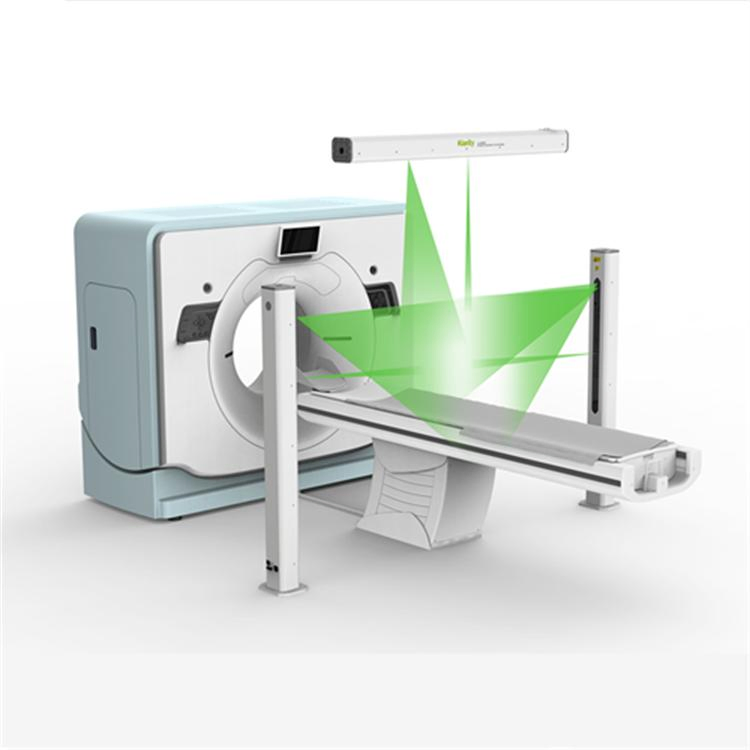

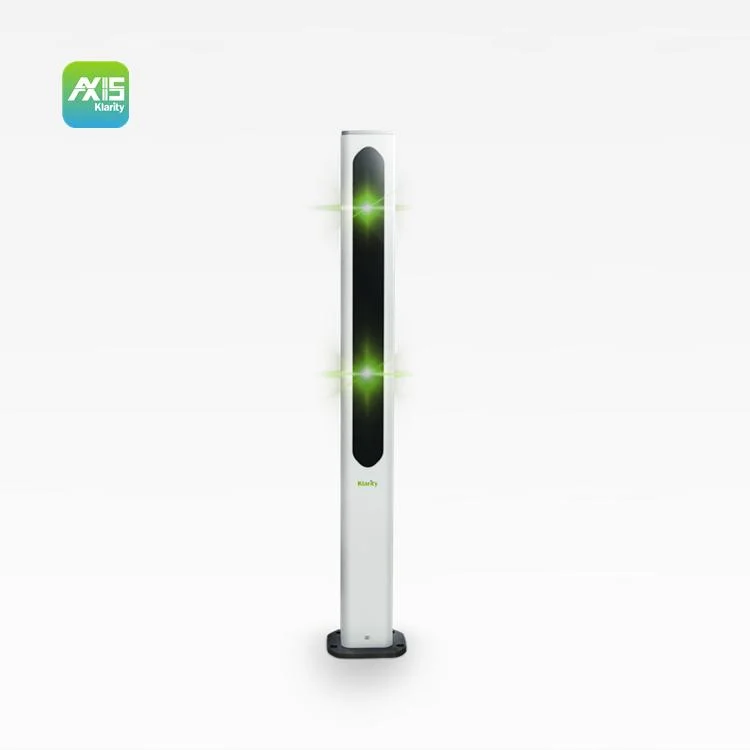

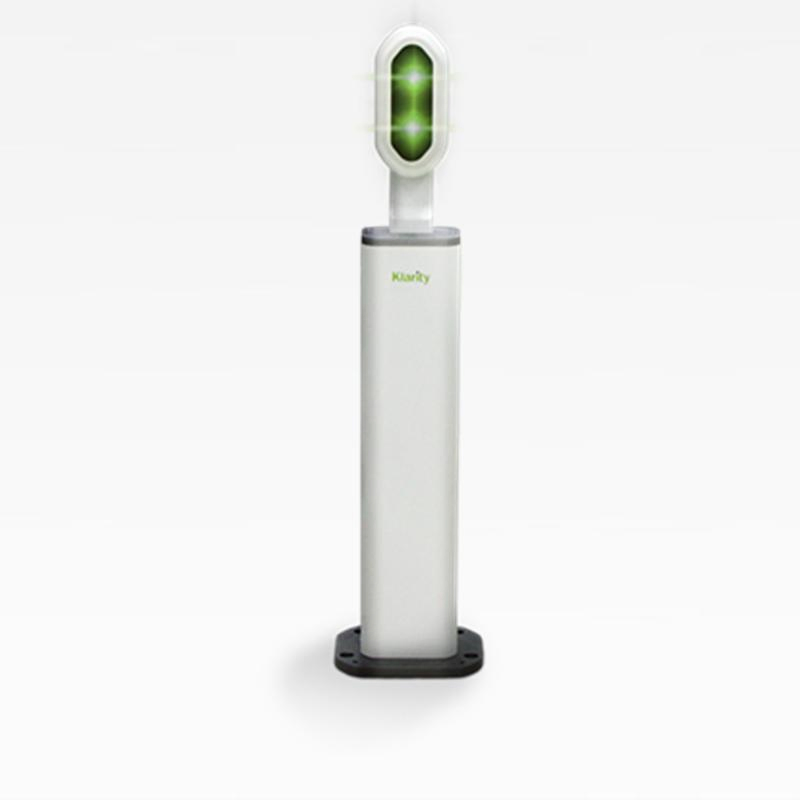

Klarity Axis™ Movable Laser Systems for Patient Marking
Klarity Axis™ Movable Laser Systems for Patient Marking
Klarity Axis™ Movable Laser Systems for Patient Marking
Klarity Axis™ Movable Laser Systems for Patient Marking
Klarity Axis™ Movable Laser Systems for Patient Marking
1 / 5
Klarity Axis™ Movable Laser Systems for Patient Marking
Klarity Axis™ Movable Laser Systems for Patient Marking
Klarity Axis™ Movable Laser Systems for Patient Marking
Klarity Axis™ Movable Laser Systems for Patient Marking
Klarity Axis™ Movable Laser Systems for Patient Marking

Klarity Axis™ Movable Laser Systems for Patient Marking

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

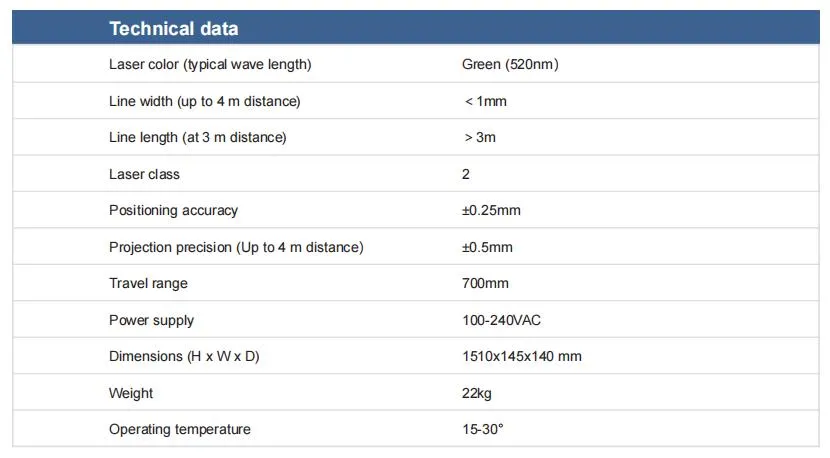

📊 Basic Information
Model NO.
K-ARL-M1
Line Length (3m)
More Than 3m
Positioning Accuracy
±0.25mm
Laser Class
2
Projection Precision
±0.5mm (up to 4m)
Travel Range
700mm
Power Supply
100-240VAC
Dimensions (HWD)
1510X145X140 mm
Weight
22kg
Operating Temp
15-30°
Origin
China
Production Capacity
1000/ Month
🎯 Movable Laser Systems Overview

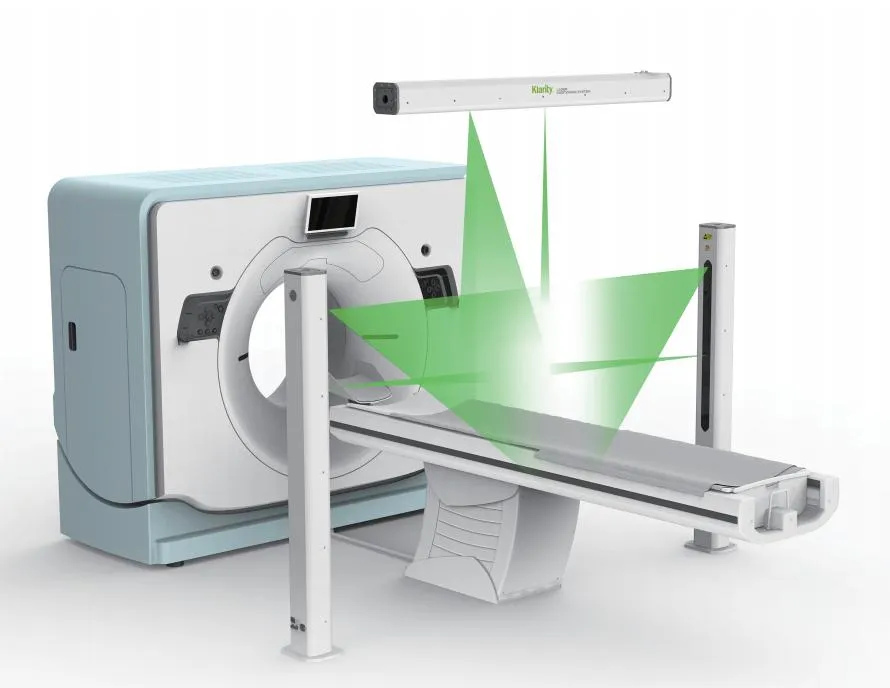

Movable Laser System

AXIS™ Movable Laser System

  • Medical-grade laser line
  • Ultra-fine laser line projection
  • Adjustable focal length for precision
  • Compatible with all CT simulation types
  • Self-locking regulating system
  • Superior mobile positioning accuracy
  • High-precision adaptation to diverse environments
⚙️ System Configurations
K-ARL-M1

K-ARL-M1

Sagittal: Movable line via top laser.
Transversal/Coronal: Fixed line via top laser and fixed cross lines from sides.

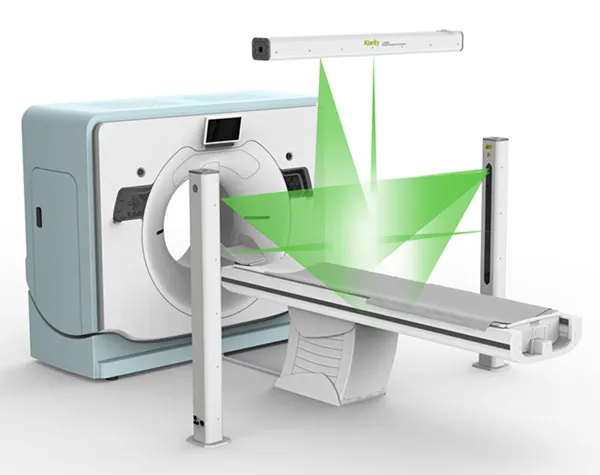

K-ARL-M3

K-ARL-M3

Sagittal: Movable line via top laser.
Transversal: Fixed lines via top and standing column lasers.
Coronal: Movable lines from standing column lasers.

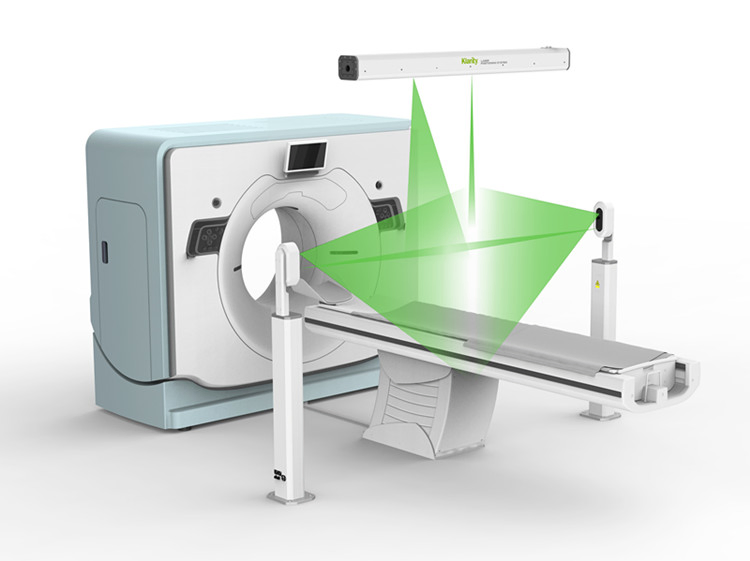

K-ARL-M3U

K-ARL-M3U

Sagittal: Movable line via top laser.
Transversal: Fixed lines via top and column lasers.
Coronal: Movable lines from column lasers.

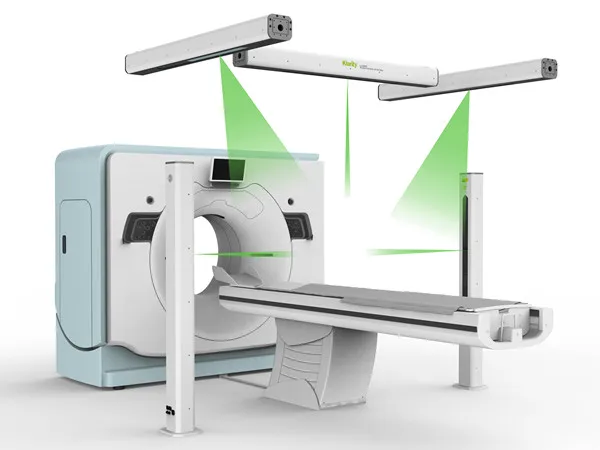

K-ARL-M5

K-ARL-M5

Sagittal: Movable line via top laser.
Transversal: Movable lines via both top lasers.
Coronal: Movable lines from both standing column lasers.

📱 Control System & Software
  • Easy control via Tablet PC with Bluetooth communication
  • Intuitive operation interface for convenient user experience
  • Supports free motion control and coordinate input control
  • Full connection support for TPS (Treatment Planning Systems)

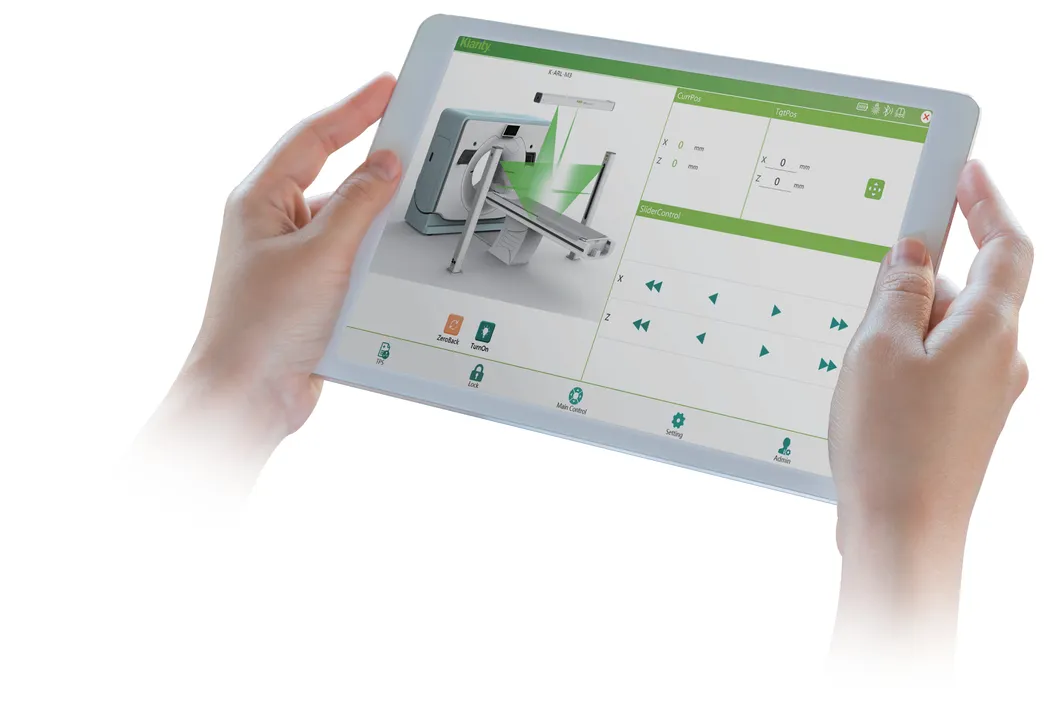

Control System
System Interface
🌐 Manufacturing & Standards

Manufacturing excellence serves the needs of radiation therapists, occupational therapists, and medical specialists globally. As a world leader in thermoplastics and positioning devices, production adheres to strict quality certifications including ISO 13485 and compliance with CE and other international regulations. Dedication to technological advancement ensures the highest quality medical positioning devices to improve patient care.

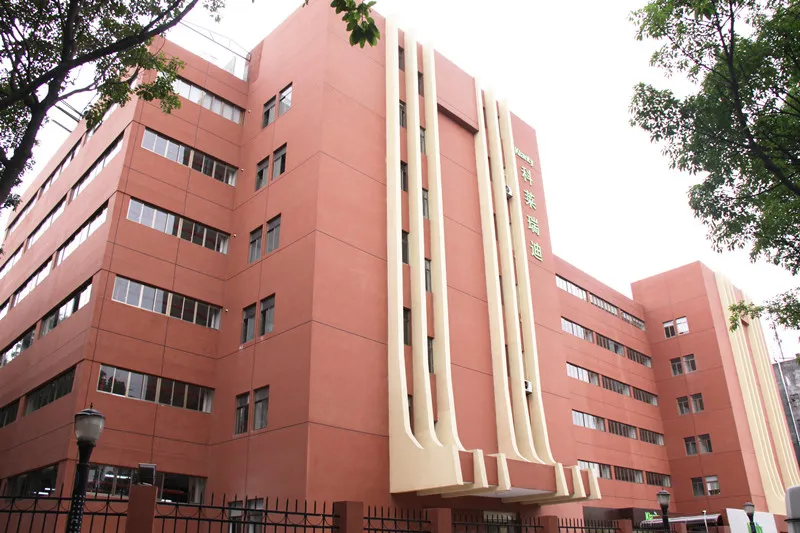

Facility
❓ Frequently Asked Questions
What is the positioning accuracy of the AXIS™ laser system?
The system features high precision with a mobile positioning accuracy of ±0.25mm.
How is the movable laser system controlled?
It is controlled via a Tablet PC using stable Bluetooth communication for a wire-free experience.
Does the system support connection with TPS?
Yes, the AXIS™ Movable Laser Control System fully supports integration with Treatment Planning Systems (TPS).
What is the travel range of the laser units?
The system provides a travel range of 700mm to accommodate various clinical requirements.
What kind of laser line quality can I expect?
The system utilizes medical-grade, ultra-fine laser lines with adjustable focal lengths for maximum clarity.
What are the power requirements for the K-ARL-M1 model?
The system is compatible with a standard power supply range of 100-240VAC.
