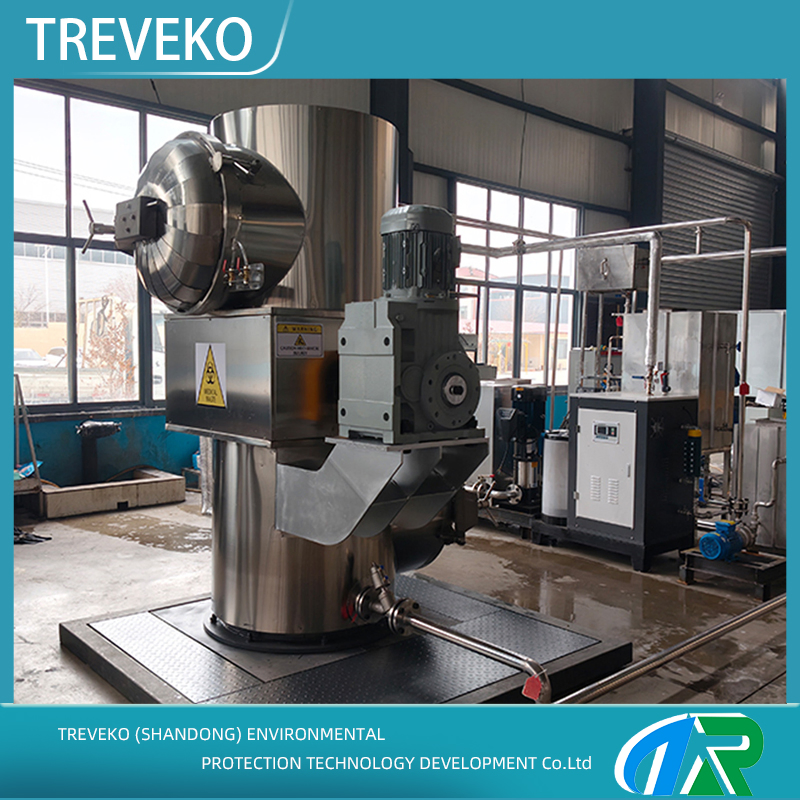

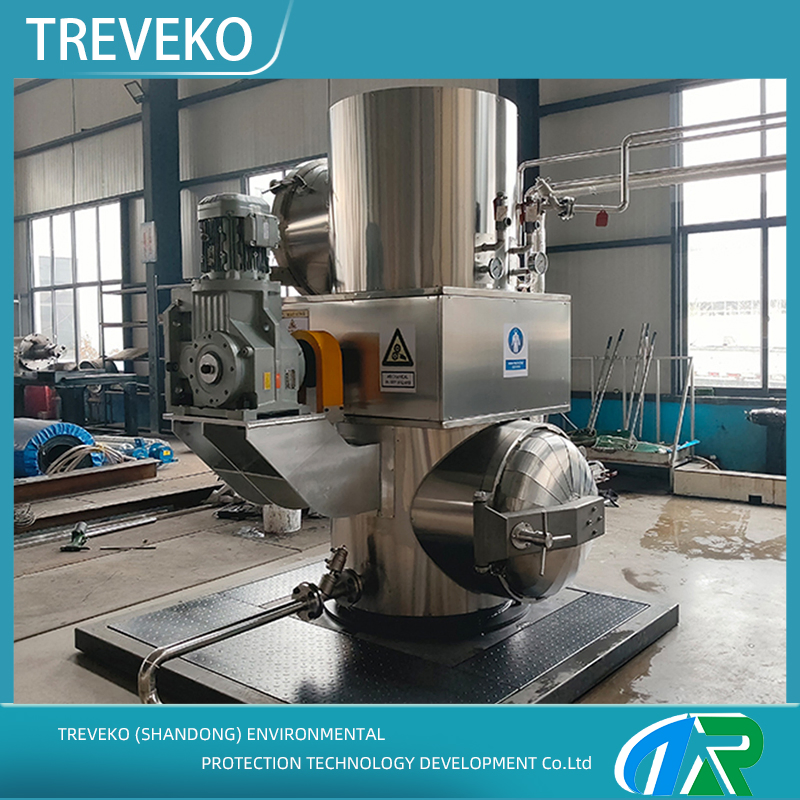

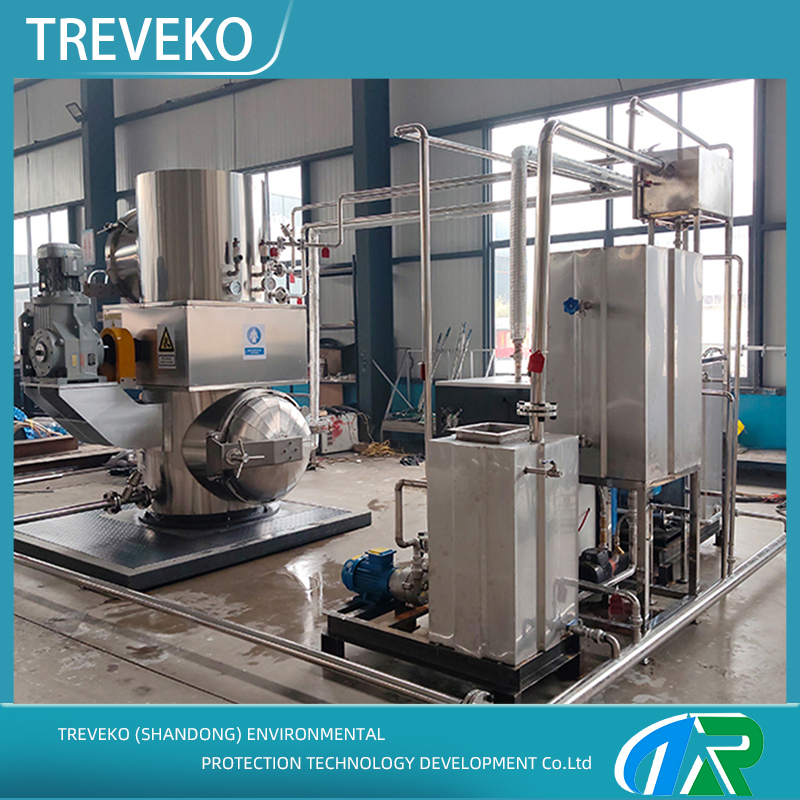

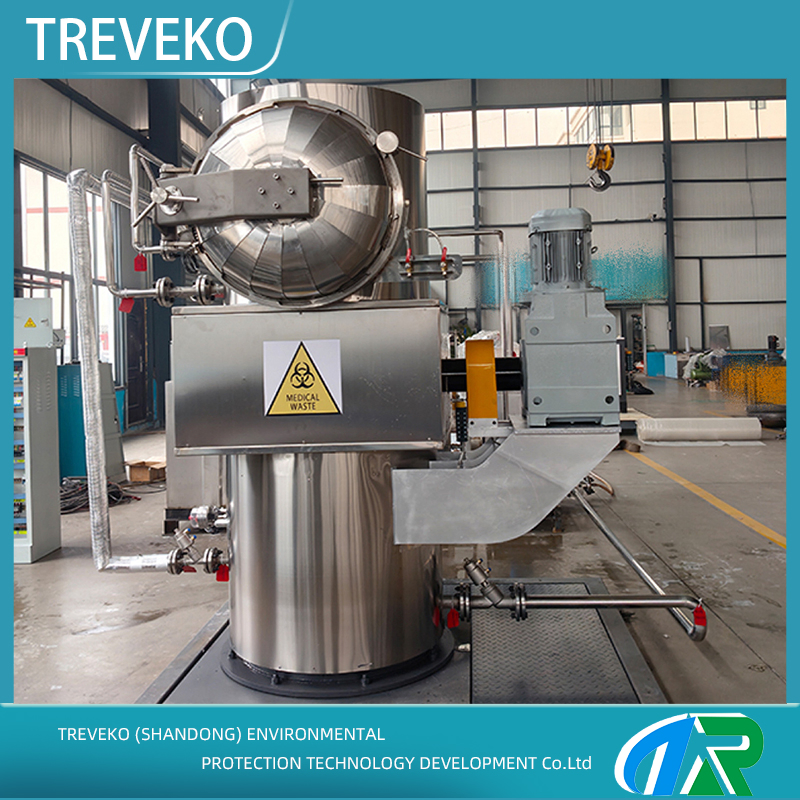

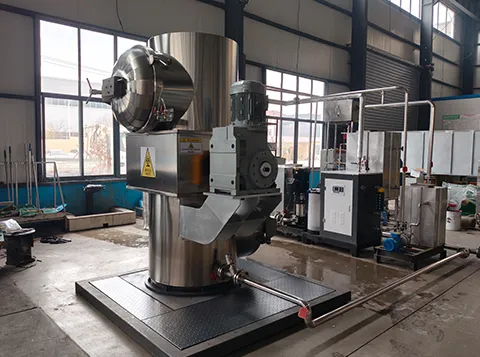

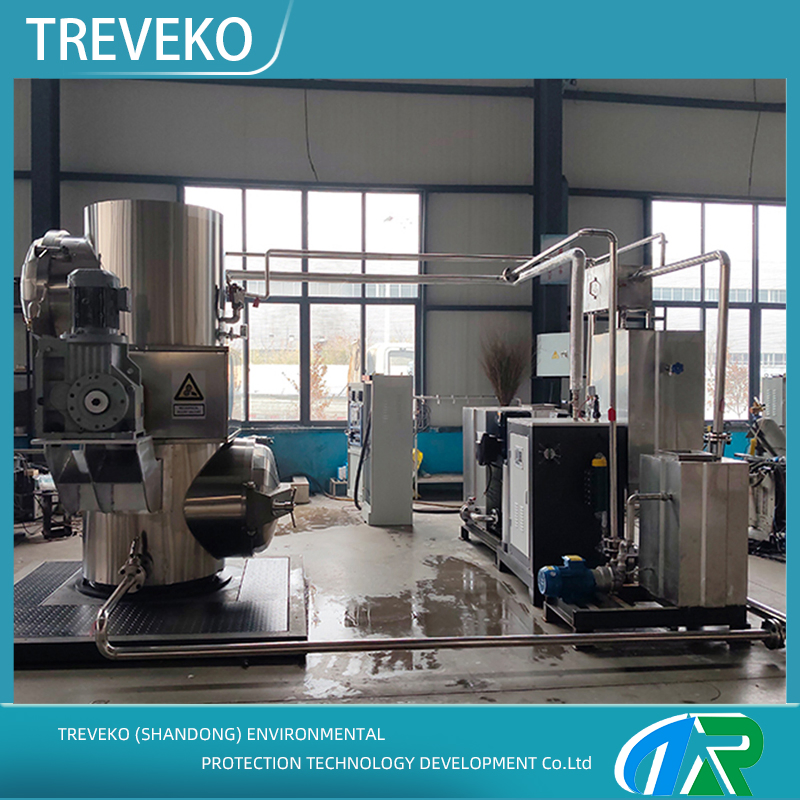

Integrated Sterilization & Disinfection: This Vertical Steam Sterilizer is an automated, integrated system designed for the safe disposal of infectious and sharp medical waste. Using high-temperature saturated steam, it ensures thorough sterilization in compliance with international health standards.
The system features a fully enclosed process—from sealed feeding and crushing to steam sterilization, cooling, and drying—minimizing operator exposure and environmental impact. Equipped with a PLC-based control interface, it supports real-time monitoring and data logging.
| System Unit | Item | Technical Parameters |
|---|---|---|
| Processor | Batch Capacity | 25 - 30 kg |
| Processor | Inactivation Level | 8 Log10 |
| Processor | Volume Reduction | ≥85% |
| Vertical Container | Volume | 420L |
| Vertical Container | Operating Temp | 134℃ |
| Crushing System | Power | 7.5kw |
| Crushing System | Blade Material | D550 Imported Alloy Steel |
| Steam Generator | Steam Output | ≤26kg/h |
1. Feeding & Shredding: Medical waste is manually fed into the sterilizer. The internal system shreds the waste into small particles.
2. Sterilization: Saturated steam at high temperature and pressure is introduced to eliminate all pathogens.
3. Vacuum & Drying: After treatment, a vacuum process removes remaining air and moisture.
4. Disposal: The sterilized, shredded waste is removed, now safe to be treated as ordinary municipal waste.
