Ward Calling Equipment for Hospital Nursing

Basic Specifications

Model NO.

ETC

Scale

Small

Type

Medical Call System

Usage

Medical Ward Calling System

OEM/ODM

Acceptable

Language

English/Customized

Color

White/ Customized

Application

Hospital Ward, Clinic, Nursing House

Communication

200m Max Distance

Capacity

2000 sets/Month

Product Overview

Ward Calling Equipment For Hospital Nursing

The Ward Calling Equipment is designed to facilitate seamless communication between patients in wards and medical personnel in nurse offices. Featuring a deluxe plastic master telephone housing and an innovative fixed mode, this system integrates complete electronic summaries and audio number reporting. It offers a superior performance-cost ratio for modern healthcare facilities.

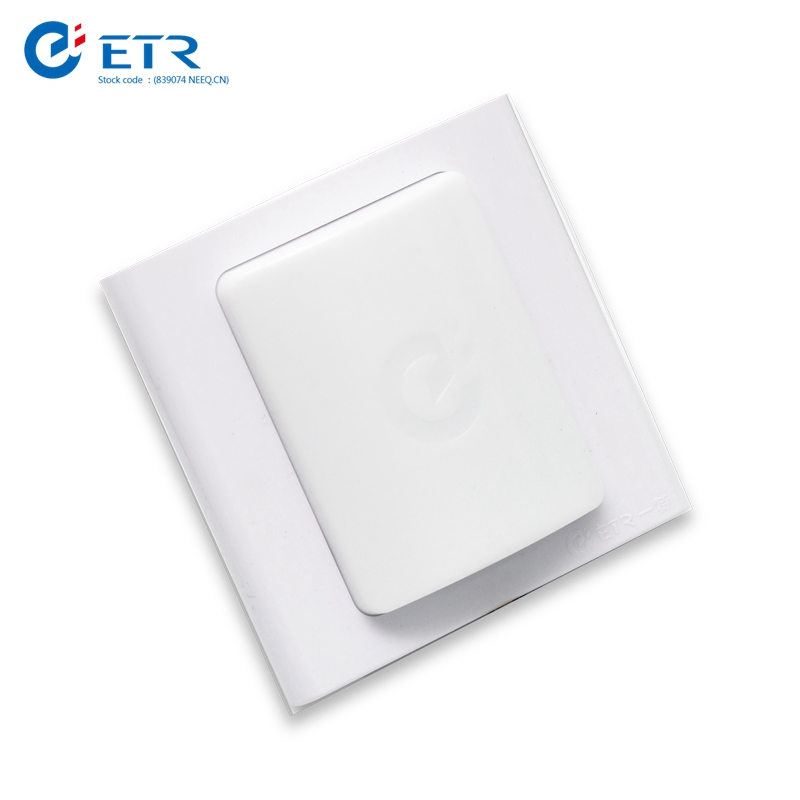

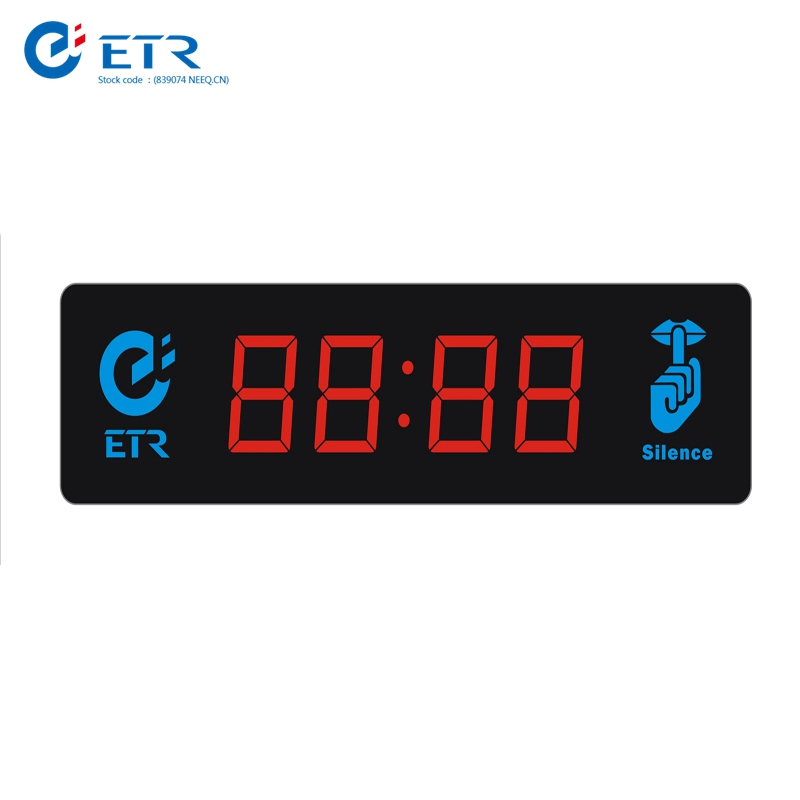

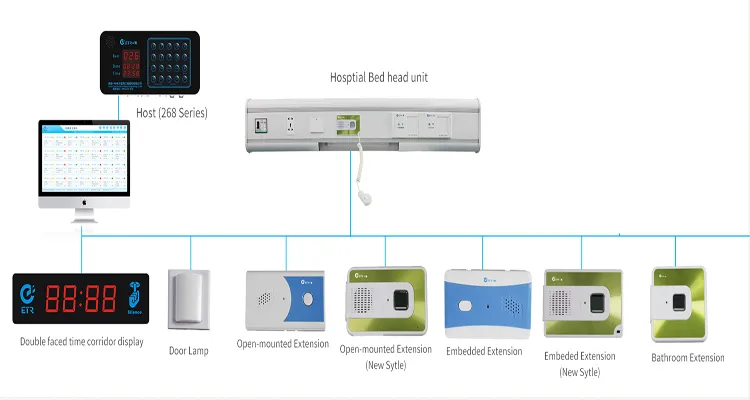

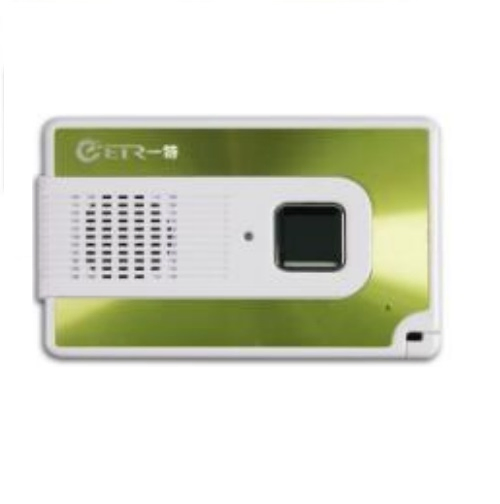

System Composition: Available in two-wire and four-wire configurations. The system consists of a host, bed extension, corridor display, door lamp, and secondary host. Optional modules include music and bathroom extensions for specialized functions.

Key Features

Two-way call and crystal clear talkback functionality.

Supports simultaneous calls from up to 32 bed extensions.

Visual indicators for room, bed, and bathroom numbers with twinkling alerts.

Adjustable volume settings, including a dedicated low-volume night mode.

LED indicators with 4 status levels and prioritized color-coded reception (Red, Yellow, Green).

Customizable number-telling rounds and patient counting system.

Technical Parameters

Rated Work Voltage	220V±22V 50HZ±1HZ
Rated Power	15W
Static Power Consumption	10W
Working Condition	Ambient Temperature 0ºC-40ºC
Relative Humidity	<=85%
Max Communication Distance	200M

Packing & Delivery

Machine Size	610mm * 430mm * 50mm
Carton Size	730mm * 495mm * 290mm
Packaging	Inner plastic bag, middle foam, outer carton
Gross Weight	12 Kgs
Net Weight	10.5 Kgs
Delivery Time	3-18 working days after payment

After-Sales Service

Warranty Policy: A 12-month guarantee is provided from the date of commissioning or 18 months from delivery. Free maintenance is provided for any defects during the warranty period.

Quarterly survey and trace files for every product.

Free remote instruction and operational training.

7*24 hours online support with solutions within 48 hours.

Availability of spare parts at best prices post-warranty.

Frequently Asked Questions

What are the main components of the system?

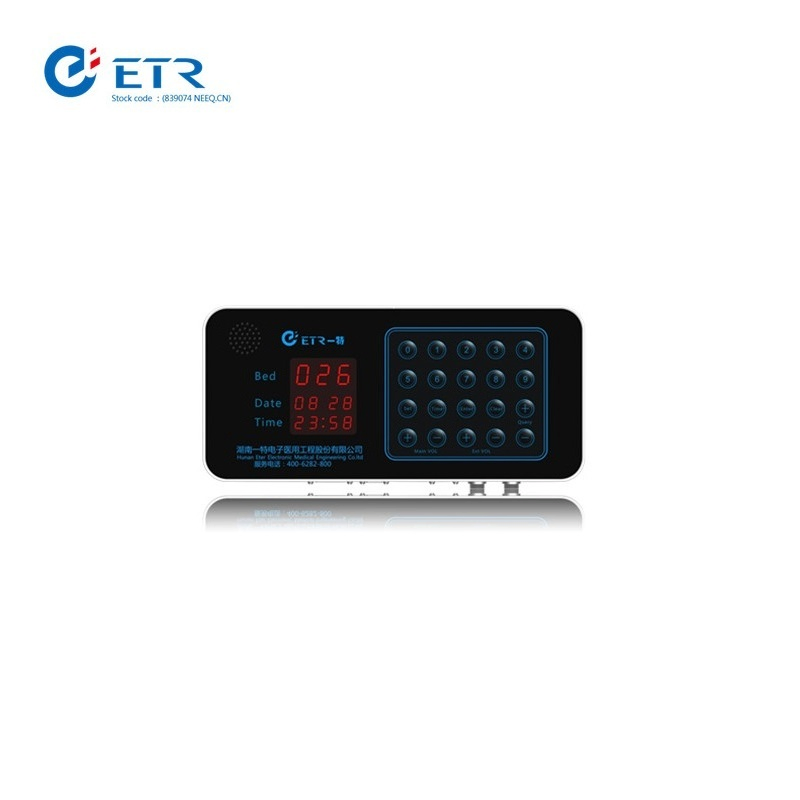

The system includes a central host for the nurse station, secondary hosts for doctor offices, corridor displays, and extensions for beds and bathrooms including door lamps.

How does a patient initiate a call?

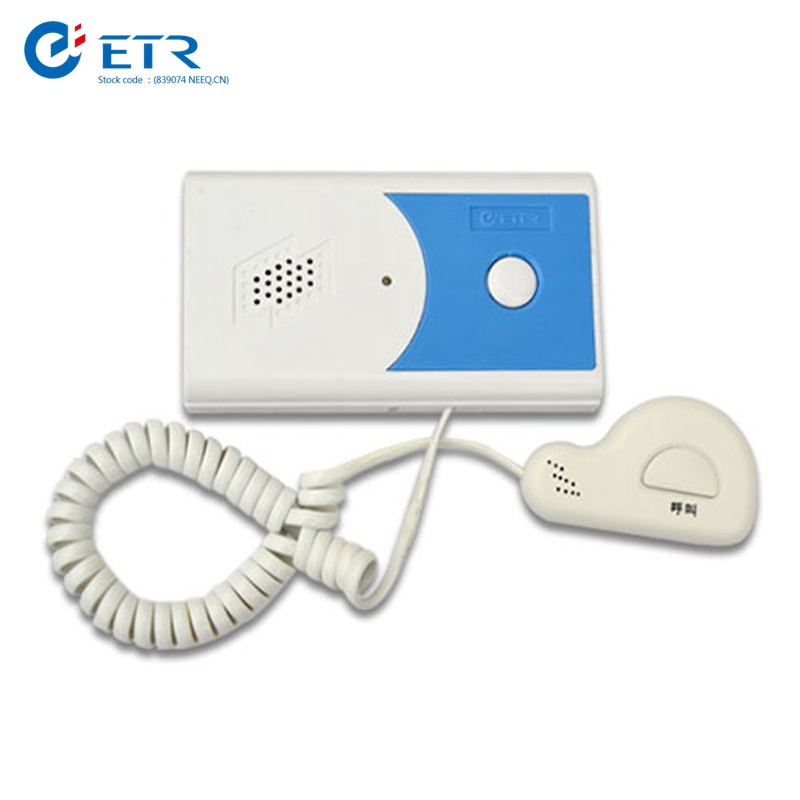

Patients simply press the button on the bed extension. The nurse station host receives the alert, and the corridor display shows the location to ensure a prompt response.

How many extensions can the host manage?

The system can receive and manage calls from a maximum of 32 bed extensions simultaneously.

What is the maximum communication range?

The system supports a maximum communication distance of 200 meters, suitable for most hospital ward layouts.

Is the system customizable for different languages?

Yes, while the standard language is English, customization options are available to meet specific linguistic requirements.

Are there different levels of call priority?

Yes, the system features 4 nurse levels with a visual priority sequence: Red (highest), followed by Yellow and Green.
