Manufacture Hospital Nurse Pager Calling System Talkback Calling System (THR-ND928)
Manufacture Hospital Nurse Pager Calling System Talkback Calling System (THR-ND928)
Manufacture Hospital Nurse Pager Calling System Talkback Calling System (THR-ND928)
Manufacture Hospital Nurse Pager Calling System Talkback Calling System (THR-ND928)
Manufacture Hospital Nurse Pager Calling System Talkback Calling System (THR-ND928)
1 / 5
Manufacture Hospital Nurse Pager Calling System Talkback Calling System (THR-ND928)
Manufacture Hospital Nurse Pager Calling System Talkback Calling System (THR-ND928)
Manufacture Hospital Nurse Pager Calling System Talkback Calling System (THR-ND928)
Manufacture Hospital Nurse Pager Calling System Talkback Calling System (THR-ND928)
Manufacture Hospital Nurse Pager Calling System Talkback Calling System (THR-ND928)

Manufacture Hospital Nurse Pager Calling System Talkback Calling System (THR-ND928)

Customization: Available
Customized: Customized
Certification: CE, ISO13485
Send Inquiry

Product Description

📋

Basic Information

Model NO.:THR-ND928
Type:Medical Call System
Scale:Medium
Wire Type:Two-Wire Rvv2*0.75
Capacity:Up to 99 users
Warranty:One Year
Origin:China
Talking:Full Duplex Available
🏥

Product Description

Hospital Nurse Pager System

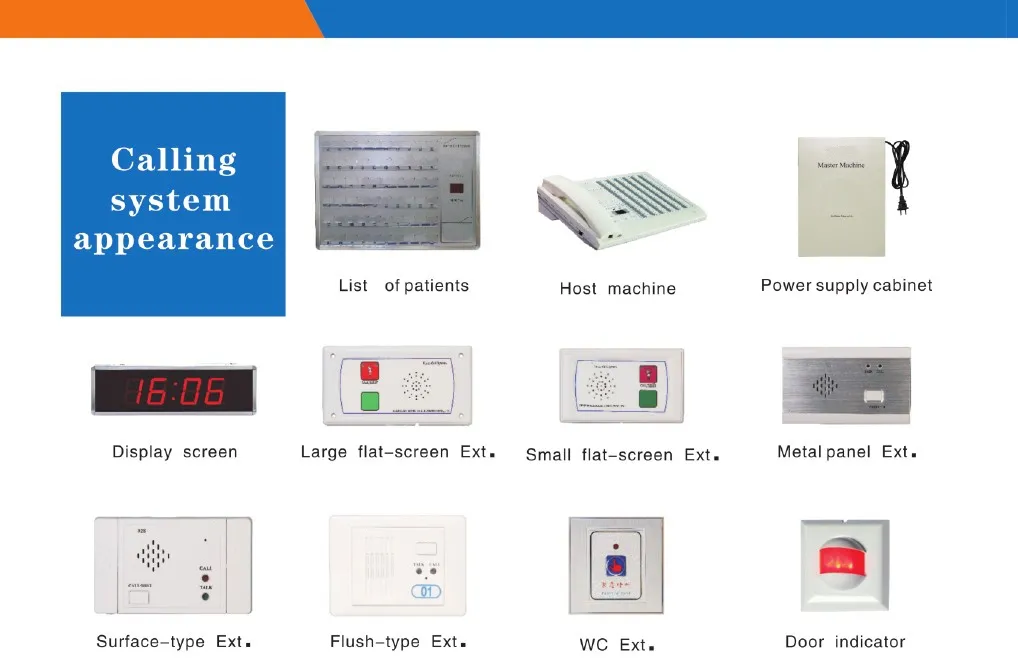

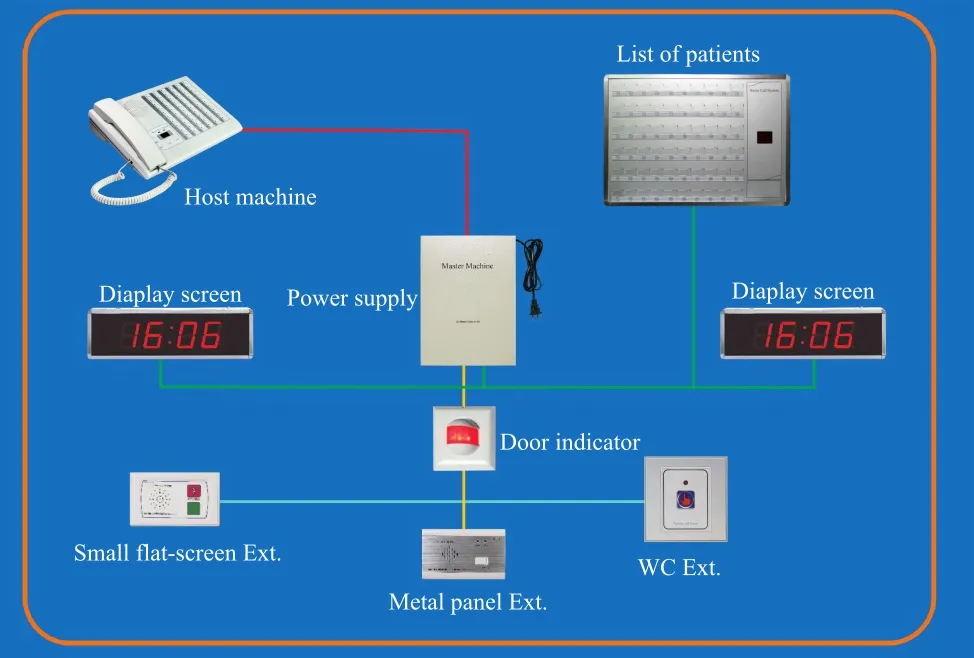

The system consists of a central console, extension telephones, WC emergency extensions, door lamps, and a display screen. All components are linked to the console using a non-polar two-wire connection, ensuring simplified installation. Users can choose between exposed or concealed installation based on ward requirements.

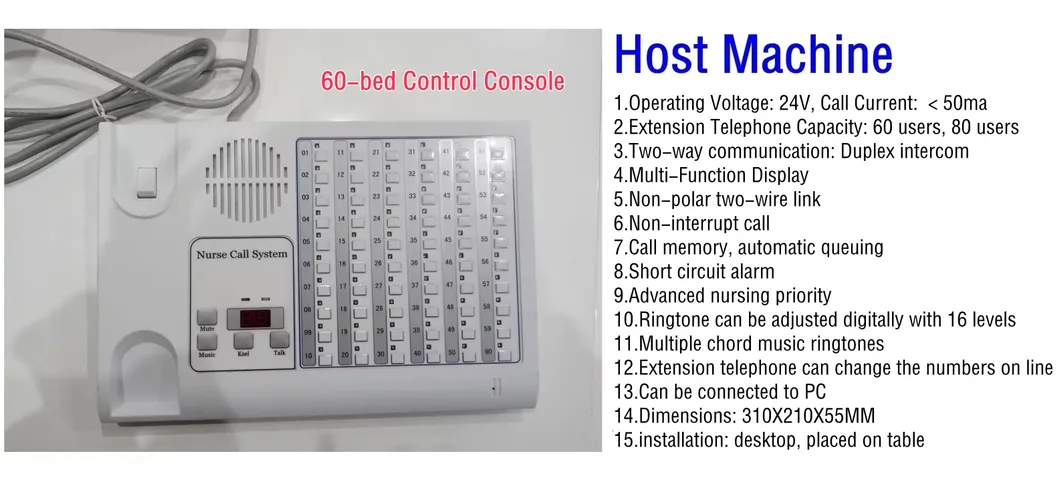

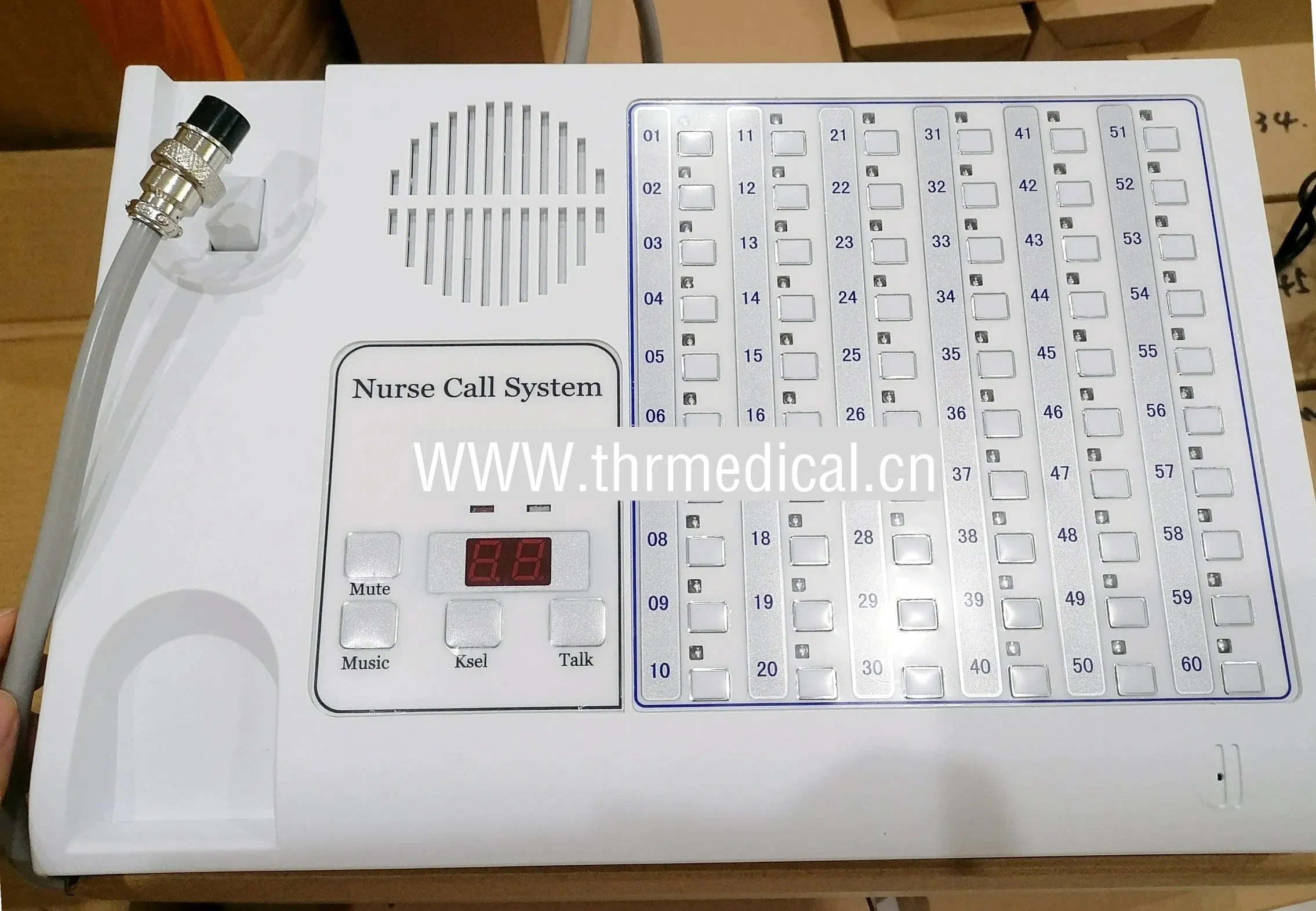

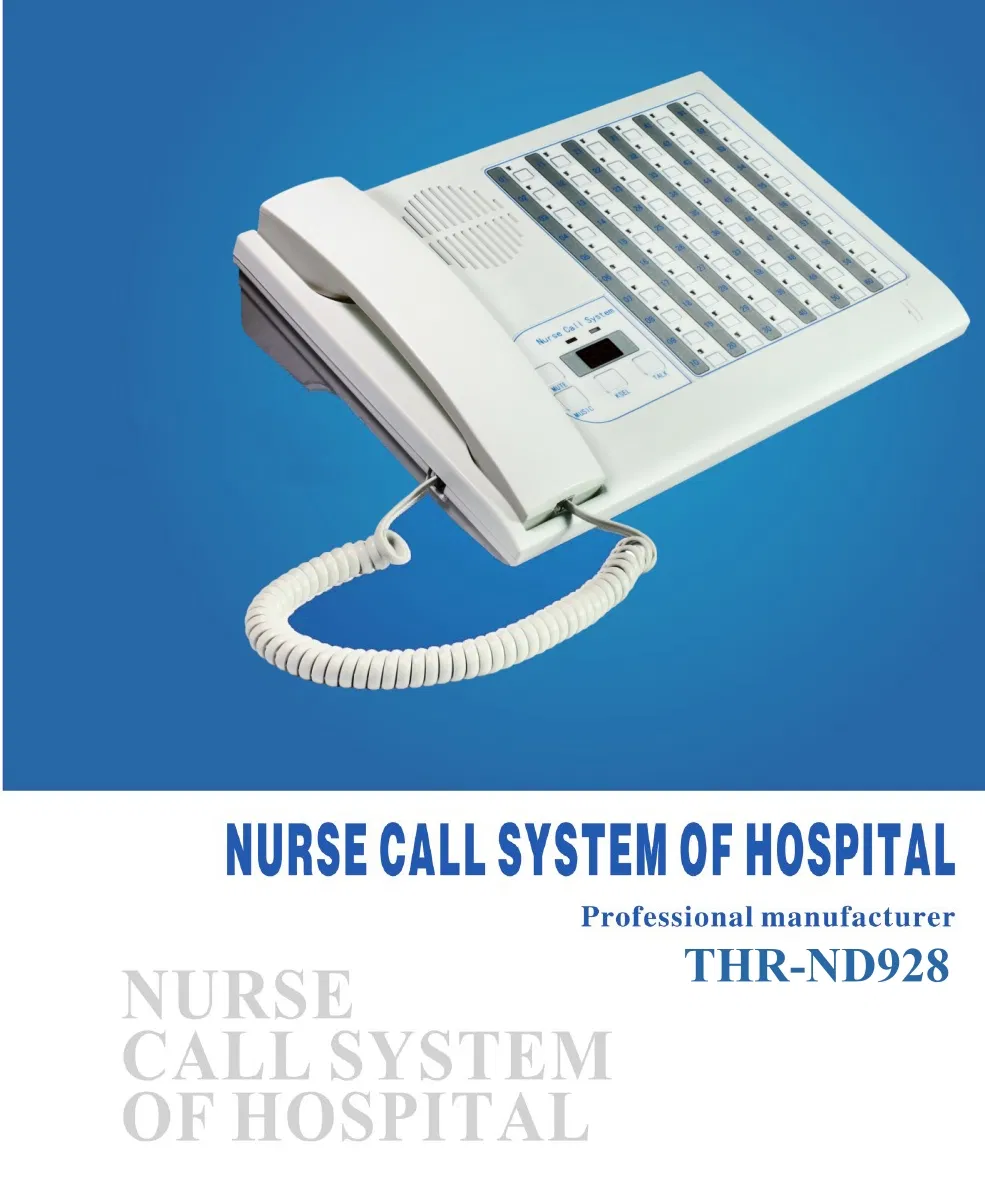

Nurse Call Console
⭐

Key Features

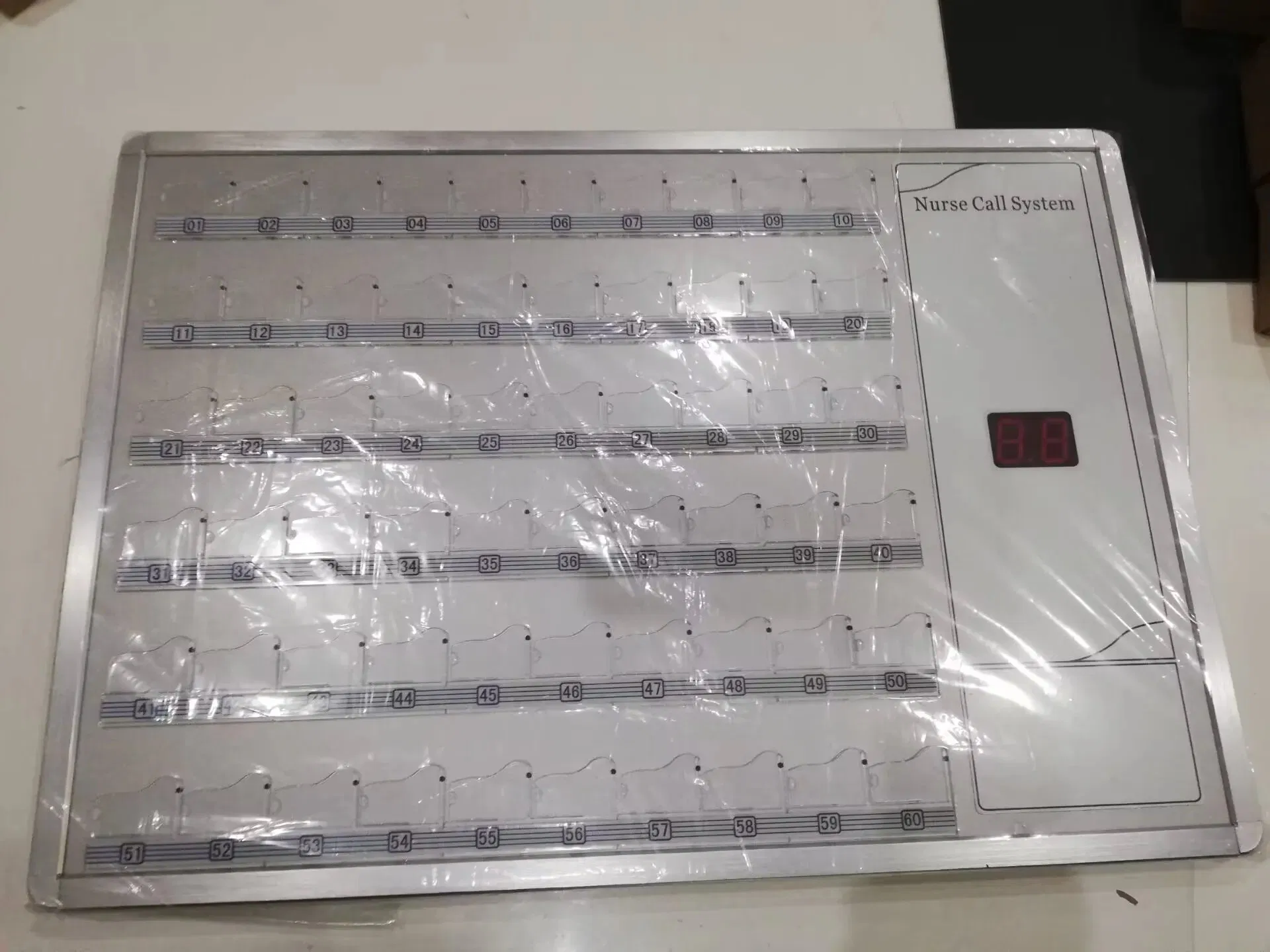

  • Multi-Display Indicators: 60 LED indicators on the front panel display multiple calling bed numbers simultaneously.
  • High Clarity Audio: Clear, noise-free two-way voice communication between host and extensions.
  • Easy Configuration: Uses PIC series 8-bit microcontrollers for easy online number encoding and changes.
  • Durable Design: Stylish appearance made from high-quality imported molds and materials.
⚙️

Main Functions

  • Two-way Full Duplex Intercom (Handset talk)
  • Call memory and automatic queuing
  • 12 chord ringtones with 16-level adjustable volume
  • Special nursing priority setting
  • Short circuit alarm with "DL" display
  • Non-interrupt call receiving function
System Functionality
📊

Technical Parameters

🖼️

System Diagrams & Gallery

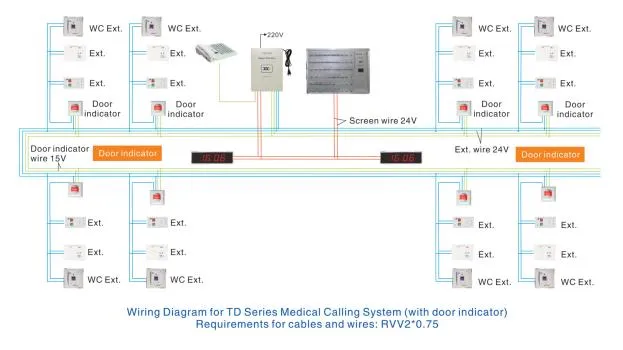

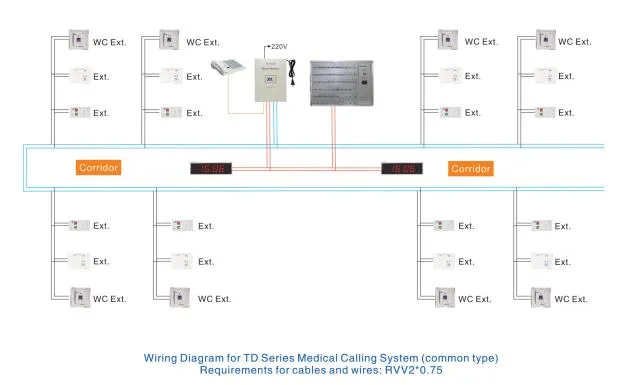

Wiring Diagram 1 Wiring Diagram 2
Product View 1
Product View 2
Product View 3

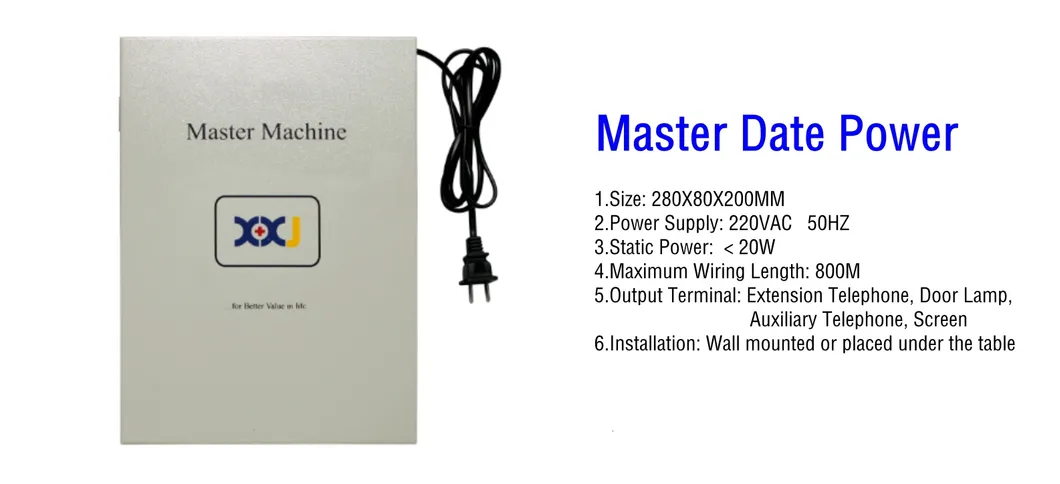

Product View 4
📦

Packaging & Shipping

Packaging Detail
🏭

Production Showcase

Factory View 1 Factory View 2 Quality Control Certifications
❓

Frequently Asked Questions

Q1: What is the maximum number of beds this system can support? A1: The THR-ND928 system has a maximum capacity of 99 users or bed extensions.
Q2: Does the system allow for two-way communication? A2: Yes, it supports full duplex intercom. Both the nurse at the host console and the patient at the extension can talk and listen simultaneously, similar to a standard telephone call.
Q3: What type of wiring is required for installation? A3: The system uses a non-polar two-wire connection (Rvv2*0.75), which simplifies the wiring process and reduces installation errors.
Q4: Can emergency calls from bathrooms be integrated? A4: Yes, WC emergency calling extensions can be installed and connected to the main system for immediate nurse notification.
Q5: How does the "Priority Nursing" function work? A5: Multiple special nursing priority numbers can be set. If several calls come in at once, those designated as priority will be displayed and handled first.
Q6: What safety features are built into the system? A6: The system includes a short-circuit alarm. In the event of a wiring fault, the host console will sound an alarm and display "DL" to alert the staff immediately.

Related Products

Adjustable Medical Restraint System with Magnetic Locking Belly Restraints Detachable Crotch Strap Patient Bed Fixing Black

Adjustable Medical Restraint System with Magnetic Locking Belly Restraints Detachable Crotch Strap Patient Bed Fixing Black
Comfortable and Adjustable Lower Limbs Positioning System for Patient Positioning and Fixation

Comfortable and Adjustable Lower Limbs Positioning System for Patient Positioning and Fixation
Comfortable and Adjustable Prone Breast Positioning System for Patient Positioning and Fixation

Comfortable and Adjustable Prone Breast Positioning System for Patient Positioning and Fixation
Adjustable Temperature Veterinary Automatic Air Warming System for Dogs for Animal Hospital Medical Care

Adjustable Temperature Veterinary Automatic Air Warming System for Dogs for Animal Hospital Medical Care
Ent Arthroscopy Shaver Surgical Instruments Orthopedics Arthroscopic Shaver System with Blades

Ent Arthroscopy Shaver Surgical Instruments Orthopedics Arthroscopic Shaver System with Blades
Medical Cut-Resistant Bed Limb Restraints Belt Adjustable Ankle Restraint Strap for Patient

Medical Cut-Resistant Bed Limb Restraints Belt Adjustable Ankle Restraint Strap for Patient
Hospital Wooden Over Bed Table, Gas Spring Mechanism Height Adjustable System

Hospital Wooden Over Bed Table, Gas Spring Mechanism Height Adjustable System
Hospital Patient Bed Restraint Strap Anti-Fall Waist Safety Belt Abdomen Restraint Belt for Elderly

Hospital Patient Bed Restraint Strap Anti-Fall Waist Safety Belt Abdomen Restraint Belt for Elderly
Hospital Nurse Call System Patient Doctor Call Buzzer System

Hospital Nurse Call System Patient Doctor Call Buzzer System
Nurse Call System Nurse Station Terminal

Nurse Call System Nurse Station Terminal
Operating Temperature-10ºC ~ 40ºC
Relative Humidity≤80%
Power Supply220VAC 50Hz
Bus Voltage24VDC
Static Power<20W
Max System Capacity99 users
Max Wiring Length100 meters
Distortion Degree≤10%
