Basic Information
Capacity
30000 Meters/Month

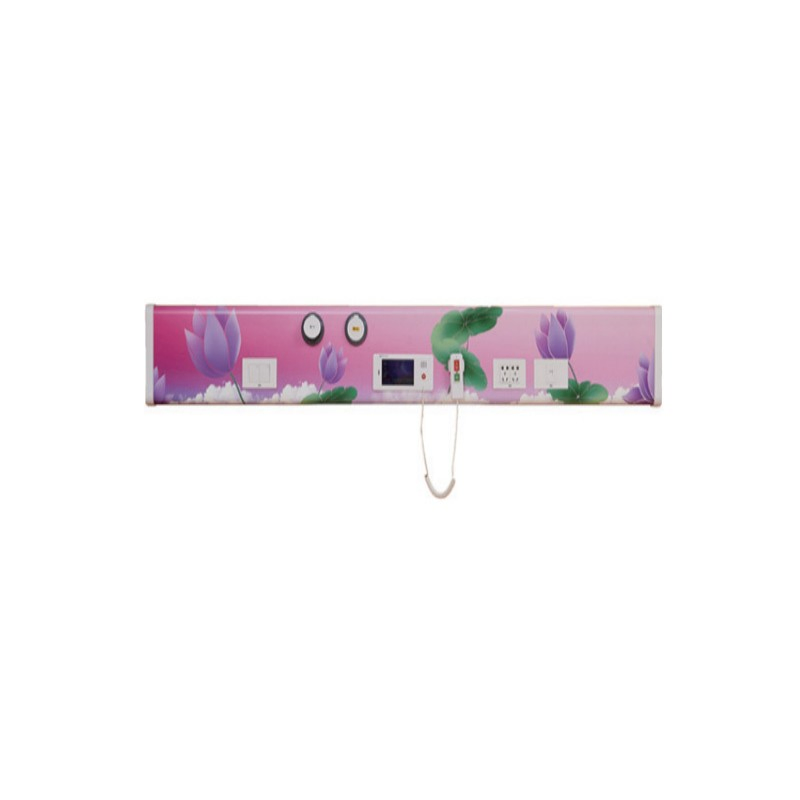

Product Description

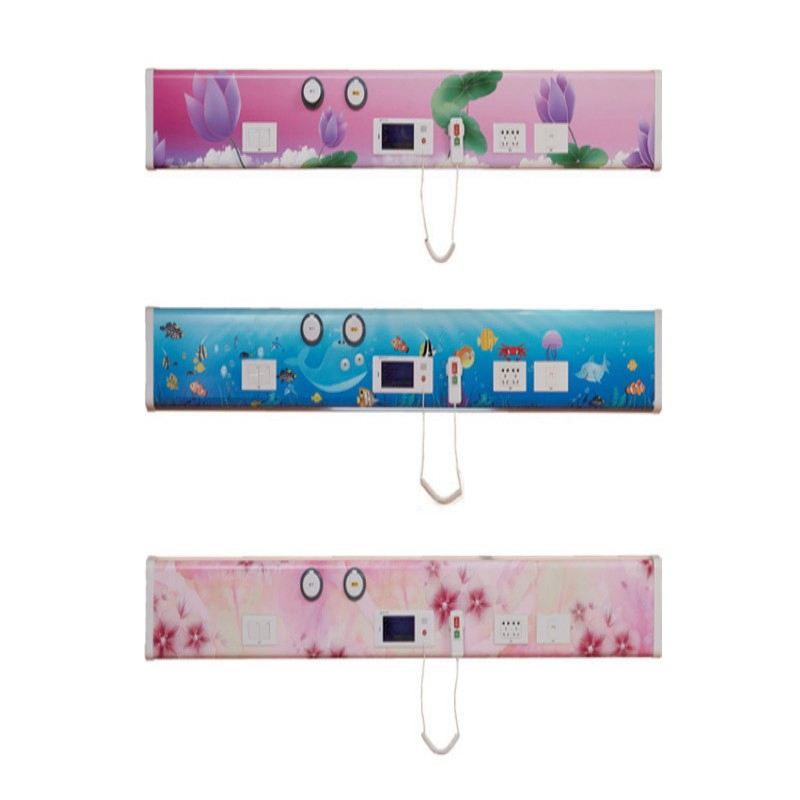

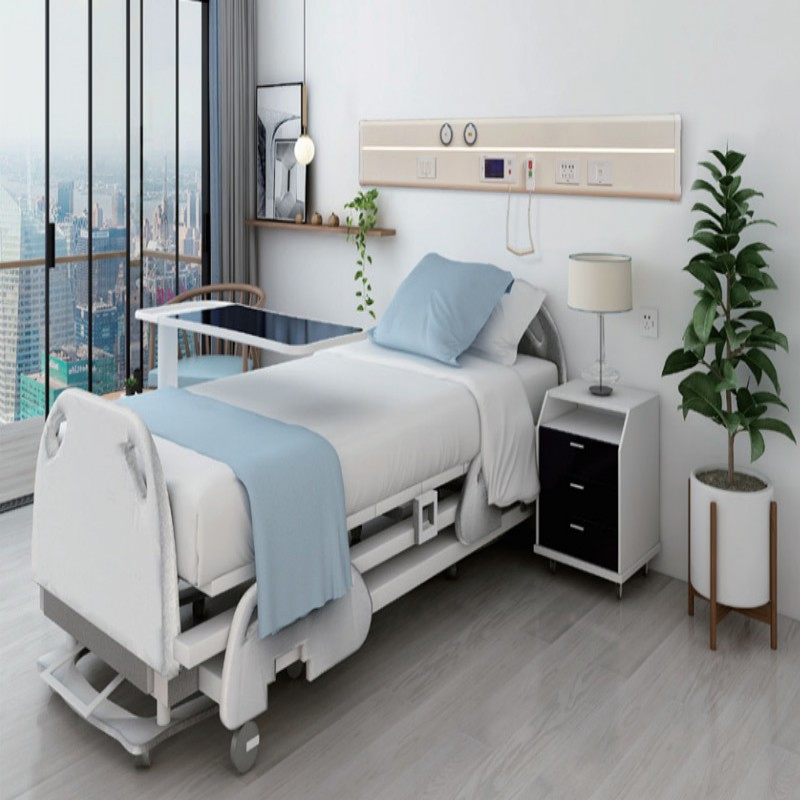

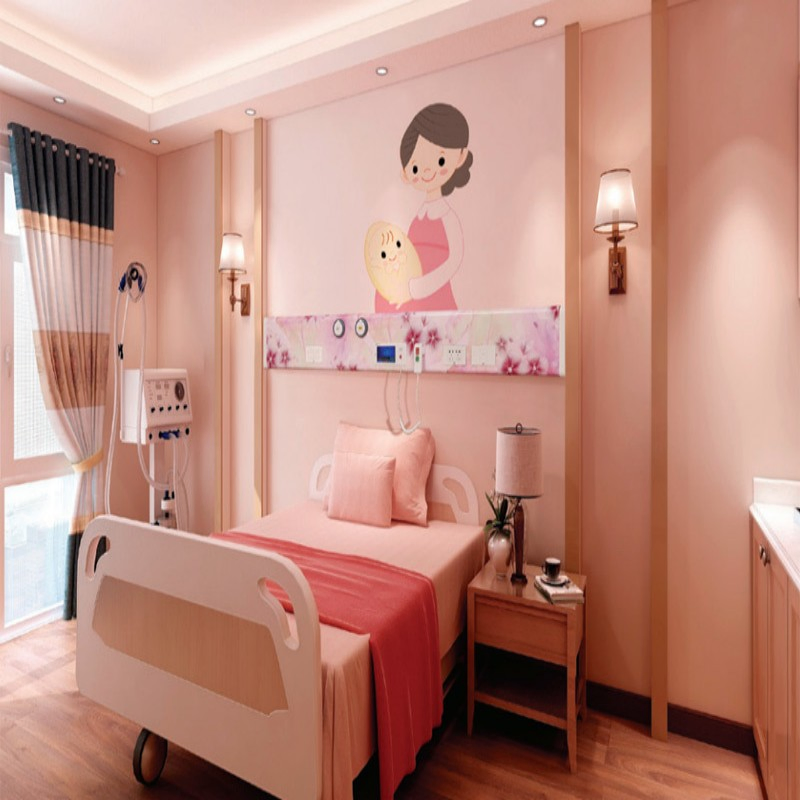

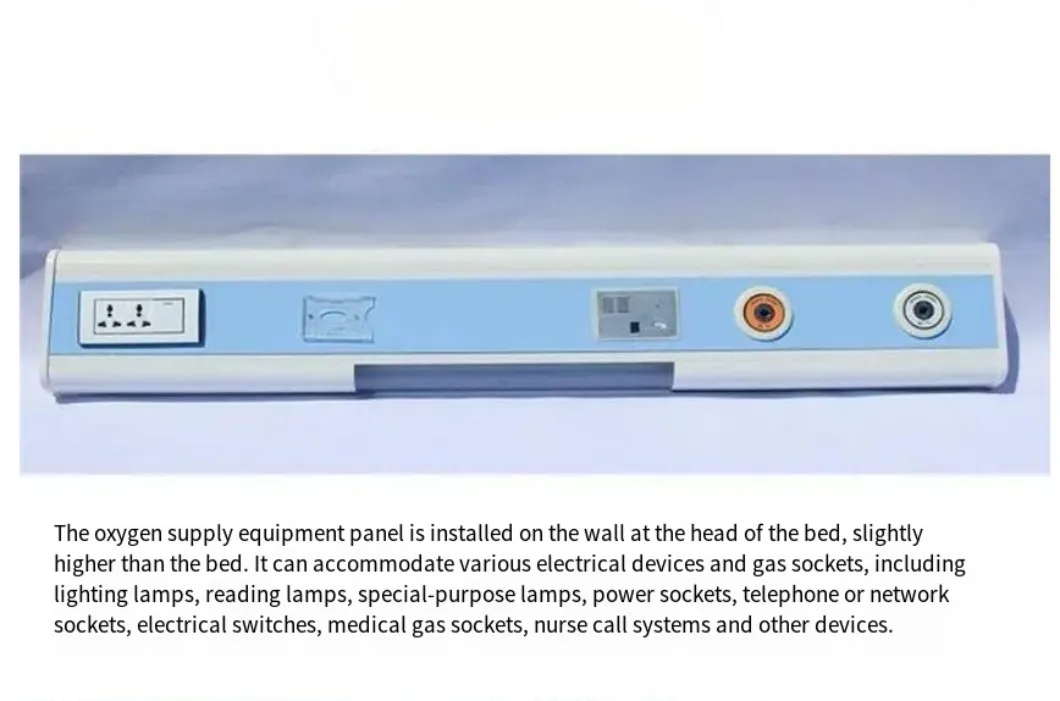

Applications: Suitable for general wards, pediatric wards, maternity wards, VIP wards, and ICU rooms.

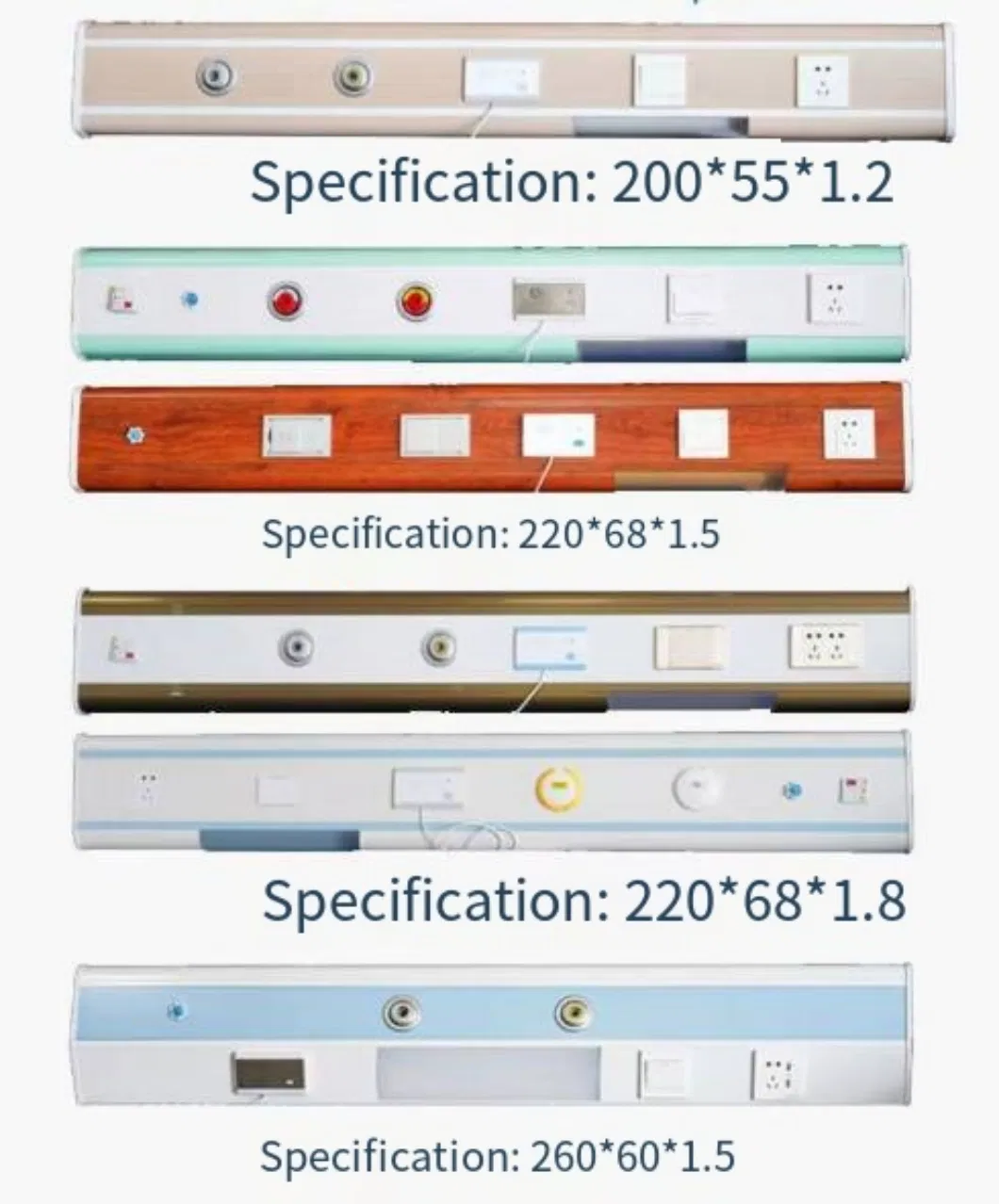

Dimensions: Width 255mm, thickness 80mm, wall thickness 3mm (Main aluminum profile).

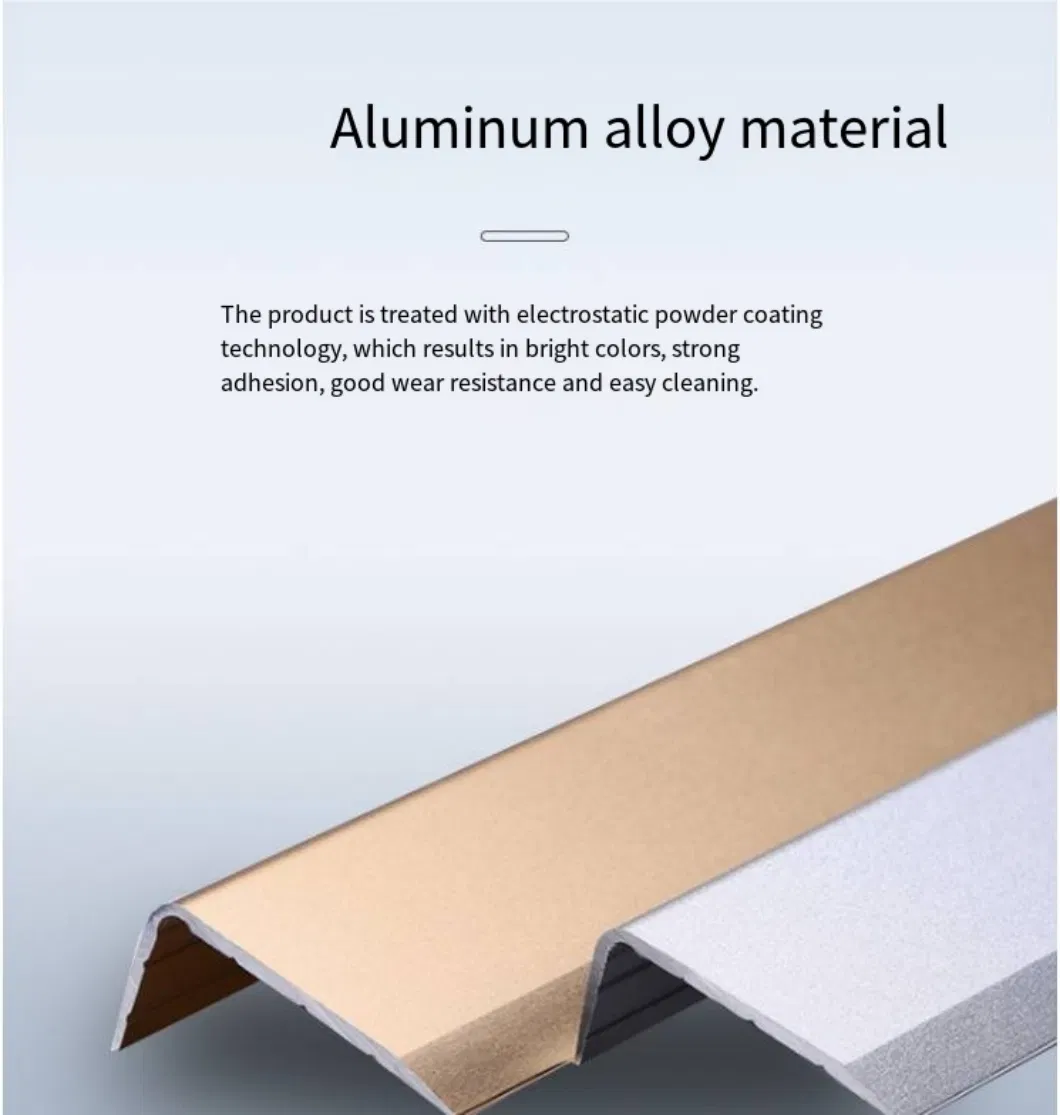

Material: Premium 6063 A-grade aluminum alloy with high strength and outstanding durability.
Surface Treatment: Electrostatic powder coating (Antibacterial). Options include fluorocarbon coating, oxidation, and film lamination.
Core Features
- Five-chamber structure: Independent compartments for gas and electrical lines to isolate strong and weak currents.

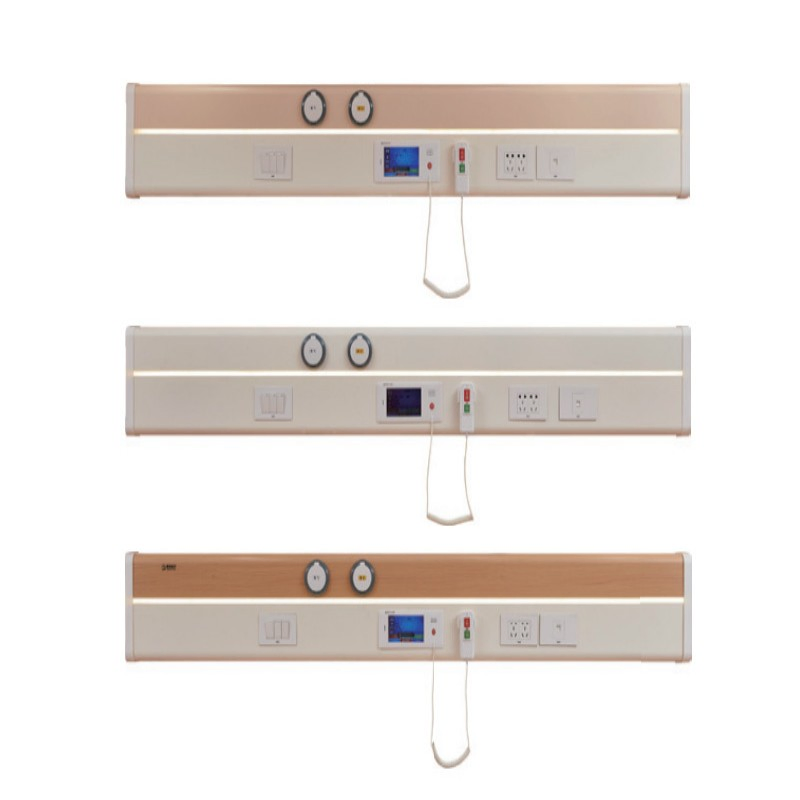

- Dual-cavity lighting system: Features upper warm white LED light for atmosphere and lower eye-friendly reading light.

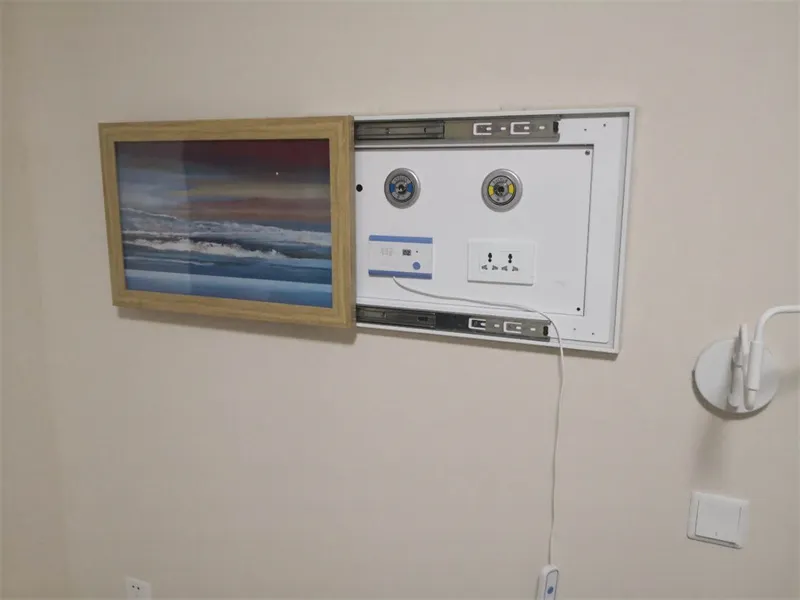

- Hinged front panel: Flip-open design specifically engineered for quick access and easy maintenance.

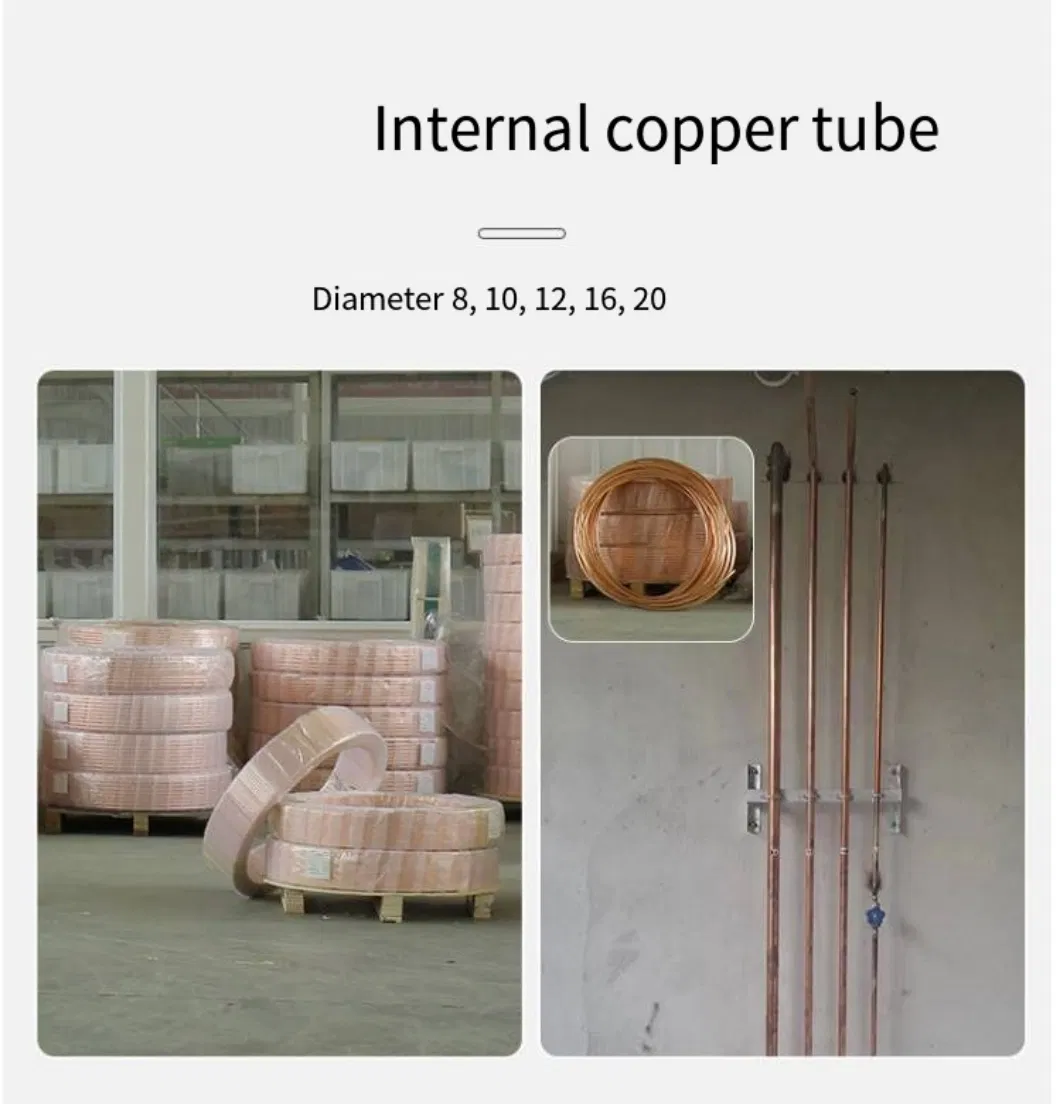

- Safe Engineering: Nitrogen-protected welding for gas pipelines and terminal block wiring for secure connections.
- Compliance: Fully meets GB9706.1 safety standards.
Technical Specifications
| Item |
Value |
| Power Source | Electricity (~220V, 50Hz) |
| Warranty | 2 Years |
| Material | Acrylic, Metal, Plastic, Steel, Resin |
| Instrument classification | Class II |
| Column Length | 800mm |
| Maximum load capacity | 150kg |
| Arm Rotating Angle | 340° |
| Braking system | Pneumatic braking |
| Gas outlet standards | Germany, UK, USA, Chinese |
| Power Socket | Universal type |
Ordering Guide

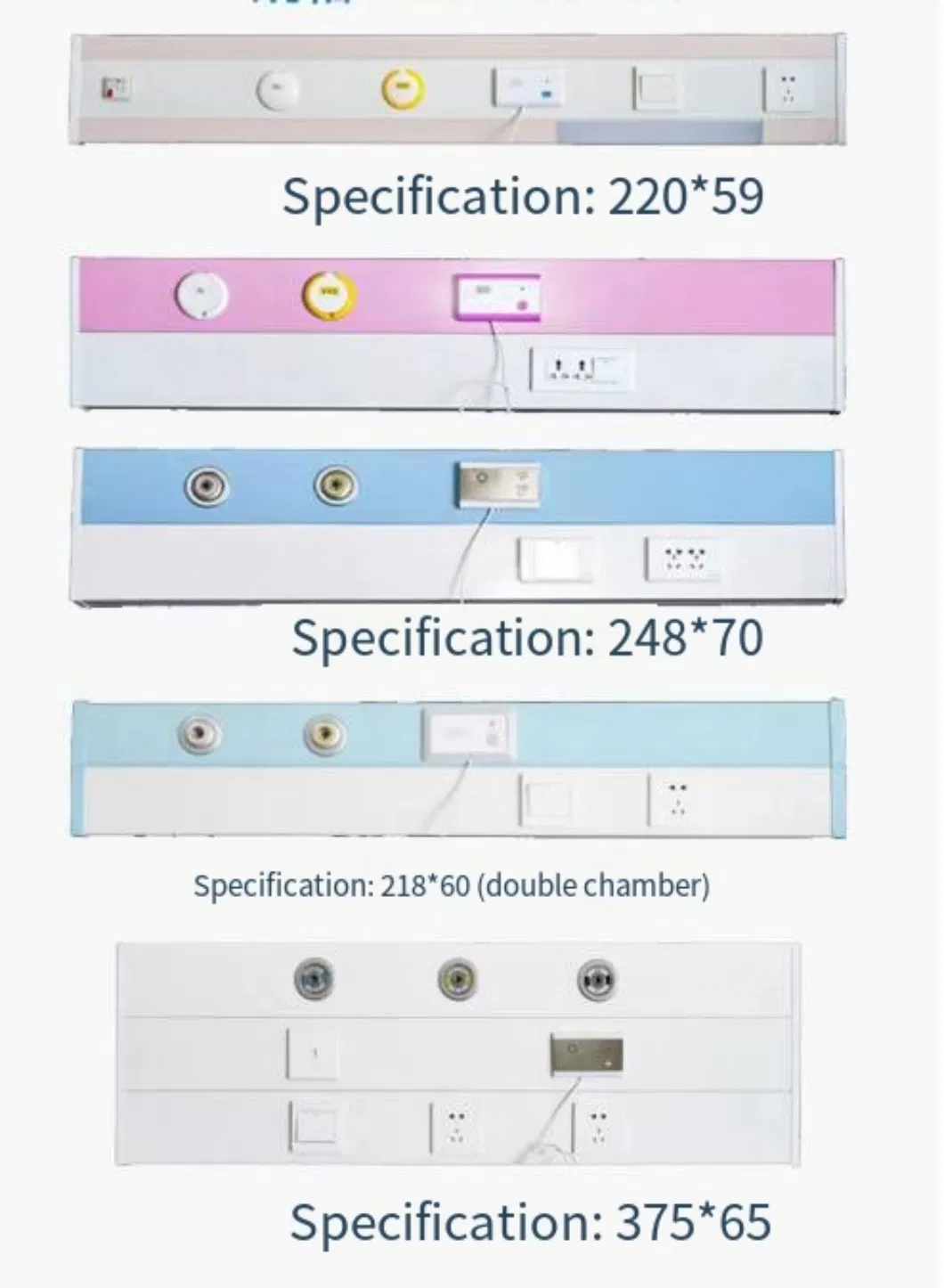

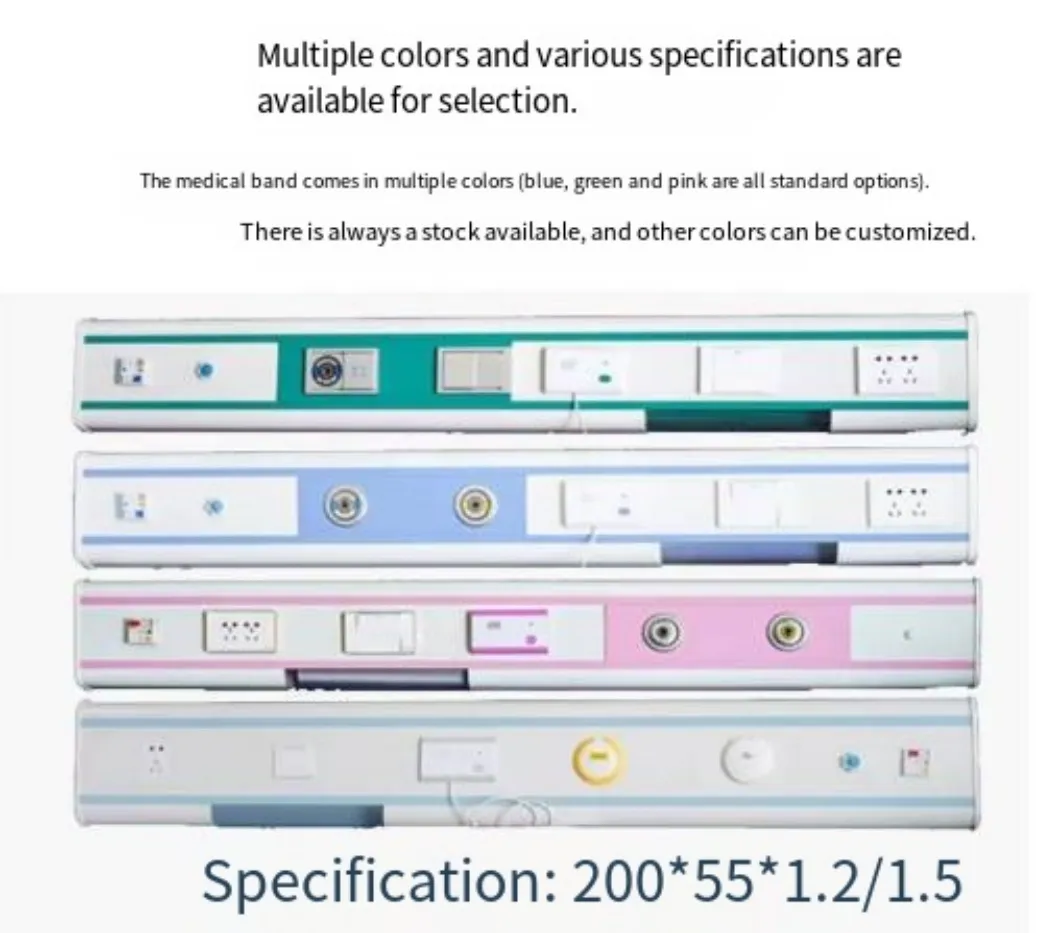

- Length Options: Available in 24", 36", 48", 60", 72", 84", 96"

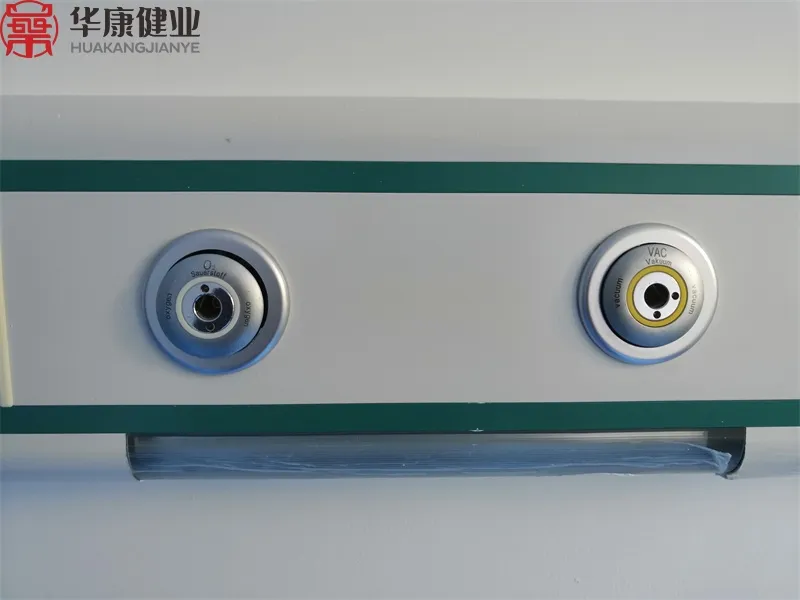

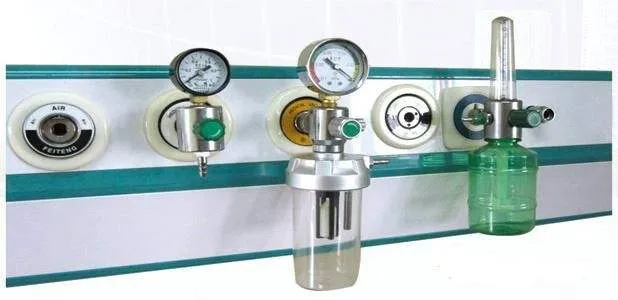

- Gas Outlet Standards: Diss, Ohmeda, Chemetron, BS, DIN, FS Standard

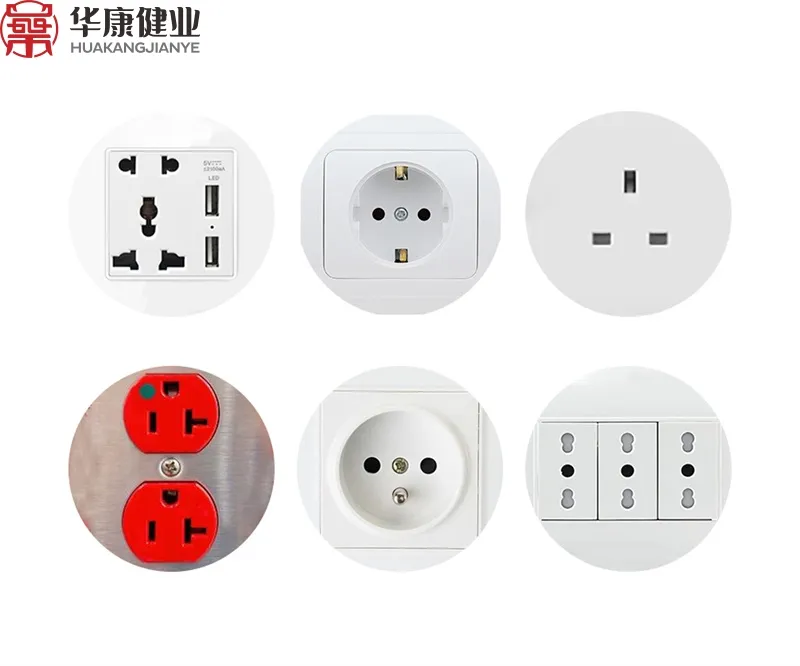

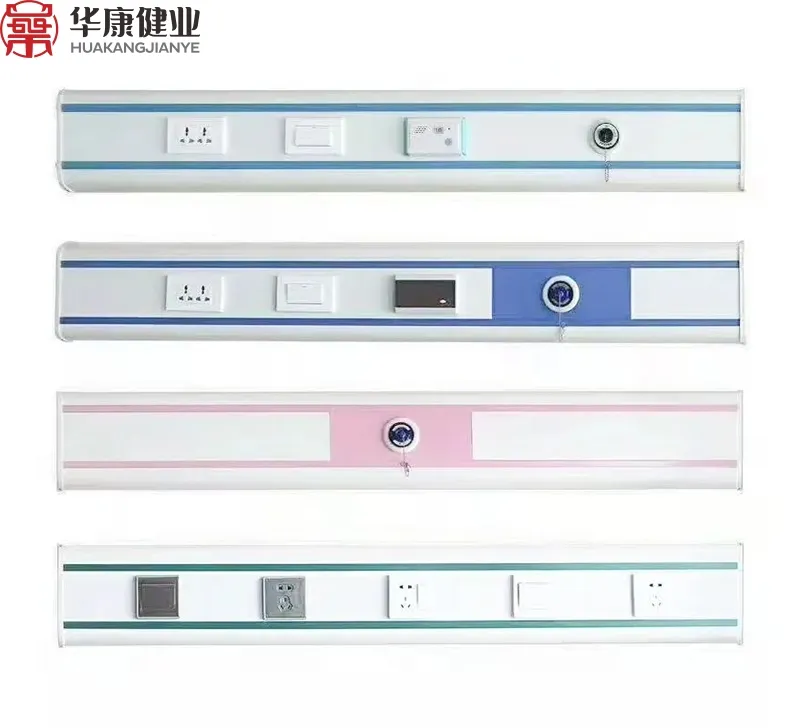

- Electrical Standards: American, British, German, French, Universal Standard

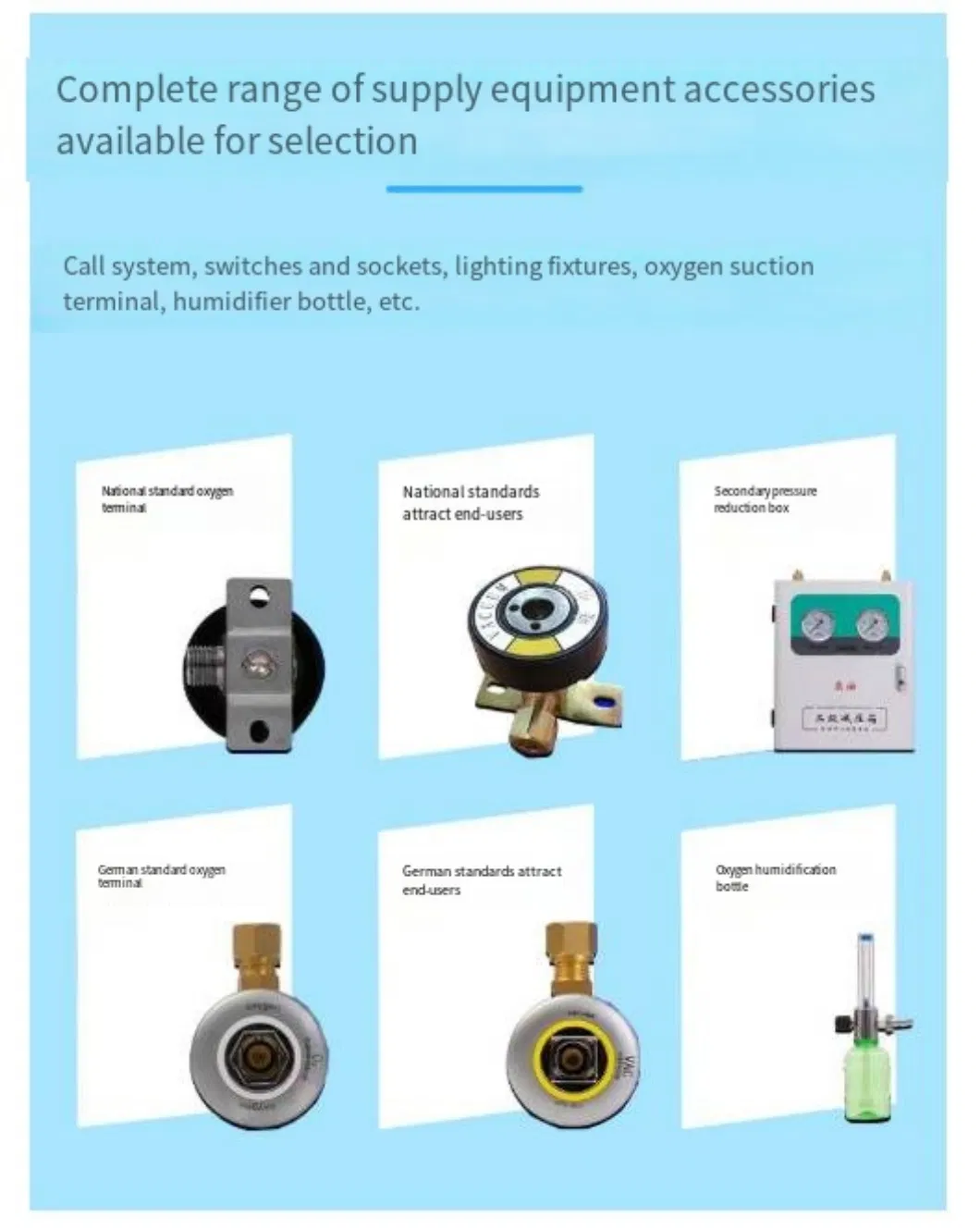

- Modular Components: Nurse Call Extension, RJ15, RJ45, Grounding Terminal, VAC Slider Optional
- Lighting: Direct & Indirect Light, LED & Fluorescent Light Optional
Frequently Asked Questions
What materials are used in the construction of the Bed Head Unit?
The unit is primarily constructed from high-strength 6063 A-grade aluminum alloy, ensuring outstanding durability and a long service life.
How does the internal structure ensure safety?
It features a unique five-chamber structure that separates gas pipelines from electrical lines, effectively isolating strong and weak currents to prevent interference and ensure safety.
Can the gas outlets be customized to specific international standards?
Yes, we support various international standards for medical gas outlets, including Ohmeda, Diss, Chemetron, BS, DIN, and FS.
What is the delivery time and inspection process?
All orders are integrated into a tight production schedule to ensure timely delivery. Every product undergoes rigorous inspection before packaging.
What kind of after-sale support is available?
We provide online assembly instructions and technical support. Products come with a 2-year warranty, and inquiries are typically addressed within 24 hours.
Is the unit easy to maintain?
Yes, the design includes a hinged front panel with a flip-open mechanism, allowing for quick access to internal components for maintenance without dismantling the entire unit.
