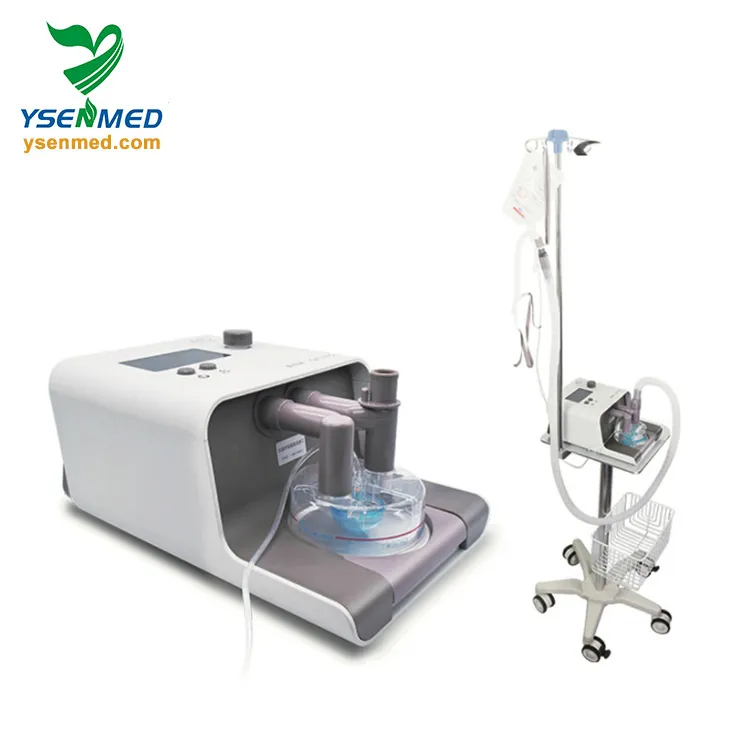

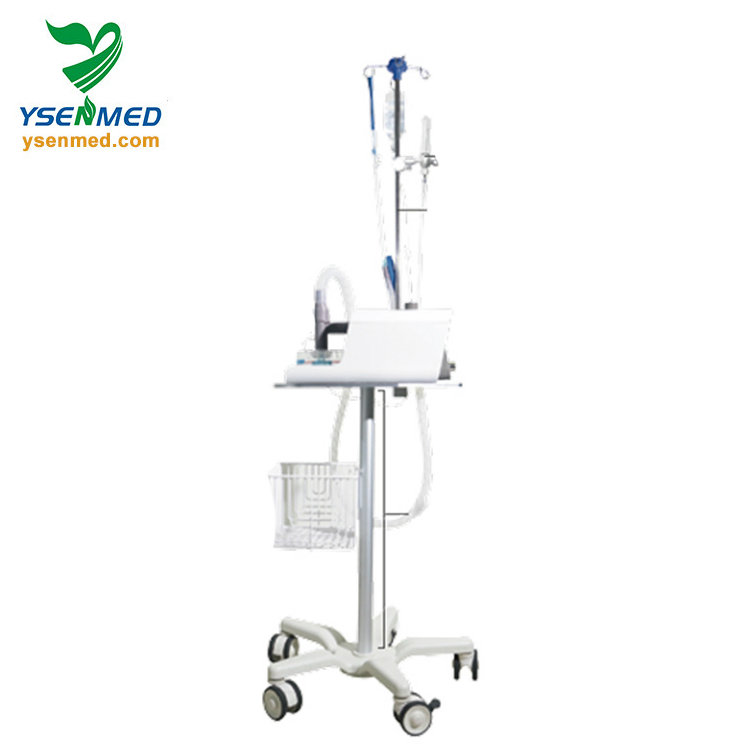

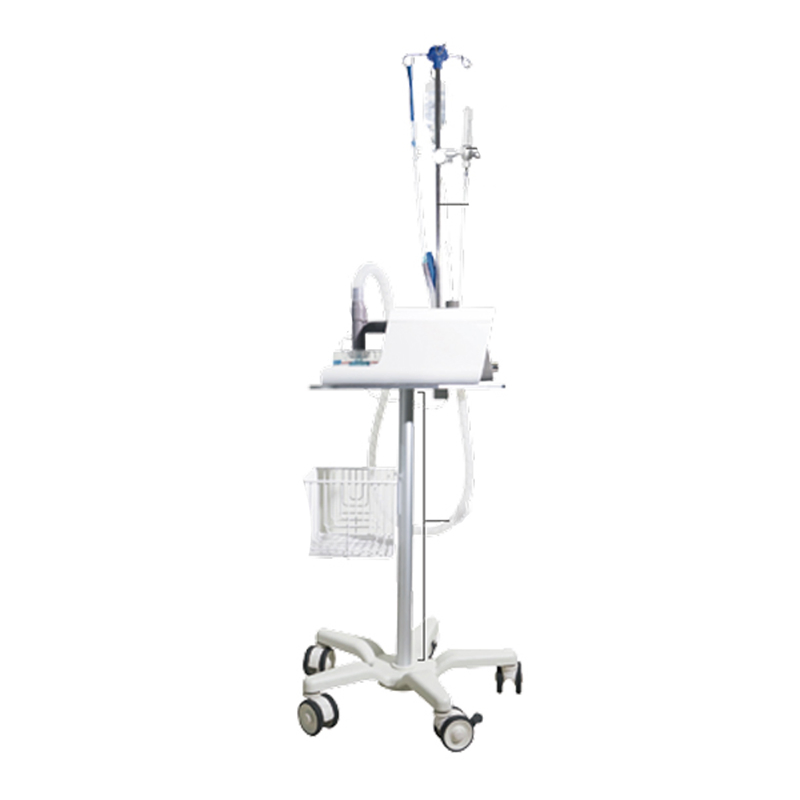

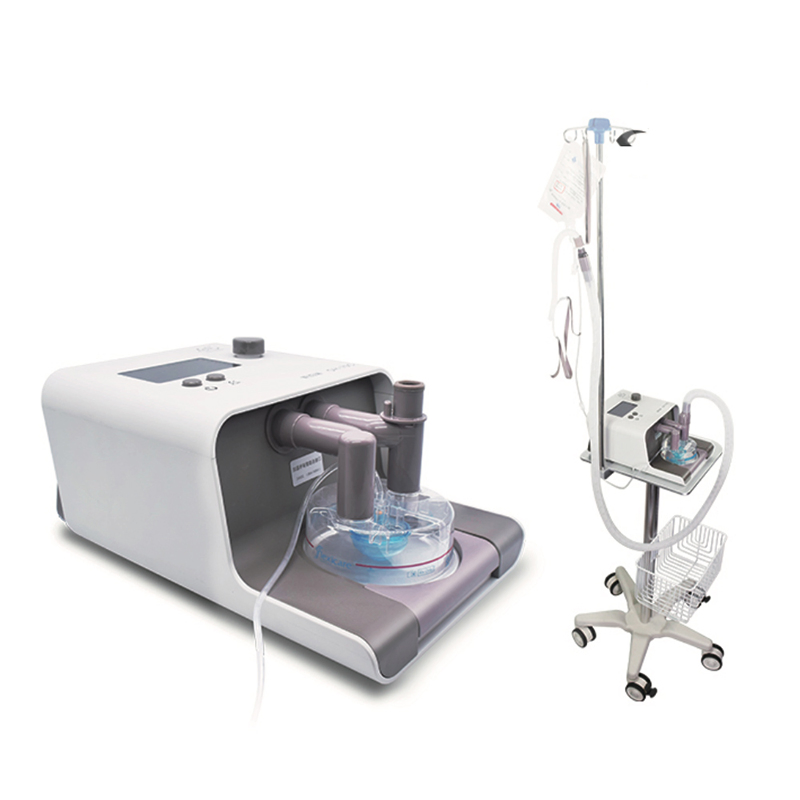

🏥YSAV-OH70C High Flow Oxygen Ventilator
As high flow nasal cannula is the main respiratory assist segment of most severe pneumonia patients, the YSAV-OH70C non-invasive ventilator is the perfect option for severe patients.
Main Features
- Precise Oxygen Control: High-precision proportional valve, 21%-100% adjustment range.
- Intelligent Climate Control: Provides gas at 37ºC and 100% relative humidity.
- Patient Comfort: Imported special silicone nasal interface, no pressure, high compliance.
- Safe Airway Design: Unique design prevents gas return, ensuring no cross-infection without disinfection.
- Trend Review: Monitors data for the previous 1-7 days (Temp, Humidity, Flow).
| Parameters |
Description |
| Flow Settings | Adult: 10-70L/min; Children: 2-25L/min |
| Oxygen Concentration | 21%-100% (Adjustable by 1%) |
| Temperature | 31ºC-37ºC (Adjustable by 1ºC) |
| Treatment Interfaces | Children/Adult Nasal Cannula, Tracheostomy, Face Mask |
| Trend Review | 1 day, 3 days, 7 days |
| Screen | 4.3-inch Large Color Screen |
| Dimensions | 340 × 228 × 162mm (3.3kg) |
❓Frequently Asked Questions
Q1: What are the primary applications of the HFNC ventilator?
A: It is mainly used for respiratory assist in patients with severe pneumonia, ICU patients, and those in emergency or neurology departments requiring high-flow oxygen therapy.
Q2: Does the device require complex disinfection between patients?
A: No. Thanks to the innovative safe-airway design, patient gas does not return to the host, preventing cross-infection and eliminating the need for internal machine disinfection.
Q3: How accurate is the oxygen concentration control?
A: The system uses high-precision proportional valves to adjust oxygen concentration between 21% and 100% with an accuracy of 1%.
Q4: Can this device be used for pediatric patients?
A: Yes, it features a dedicated Children Mode with flow settings ranging from 2L/min to 25L/min and appropriate interface options.
Q5: How does the humidification system benefit the patient?
A: It provides gas at 37ºC with 100% relative humidity, which optimizes the mucus cilia cleaning function and improves overall patient comfort.

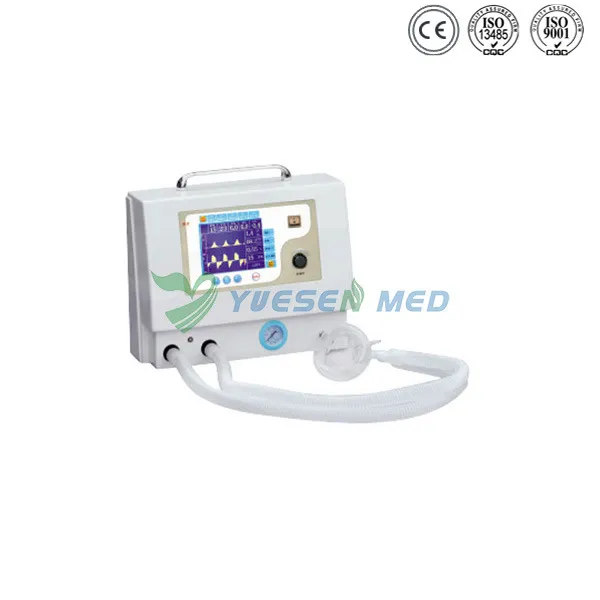

Q6: Is the veterinary ventilator suitable for large animals?
A: The veterinary model YSAV201PV has a tidal volume range of 50ml to 1500ml, making it suitable for a wide variety of animals.
