The Raynova DRsc4 represents the domestic top level of X-ray system manufacturing, holding multiple national certifications and invention patents. This system features an intelligent ergonomic design specifically tailored for clinical efficiency and high-quality diagnostics.

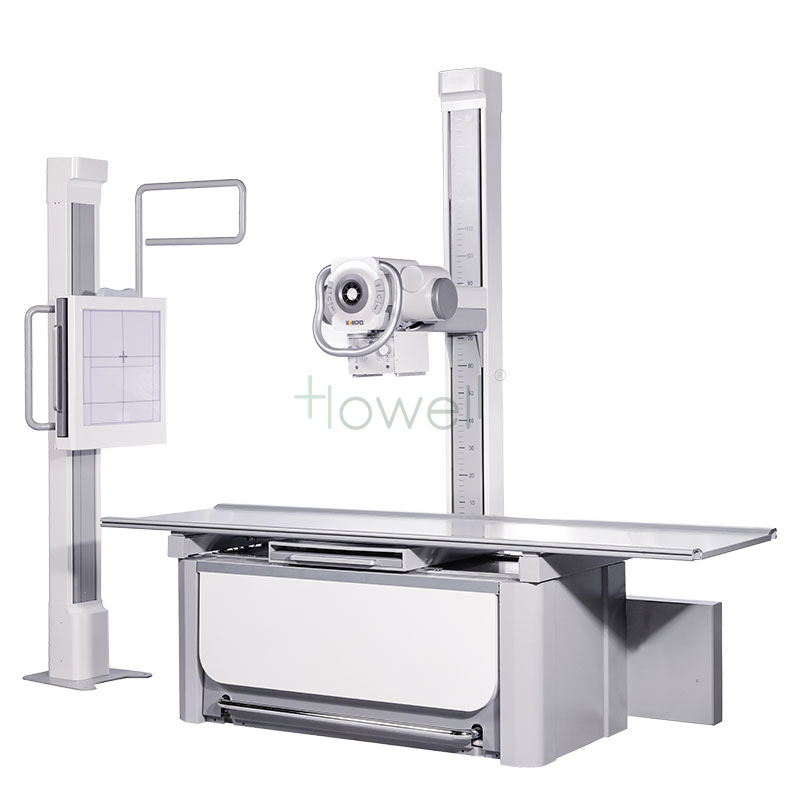

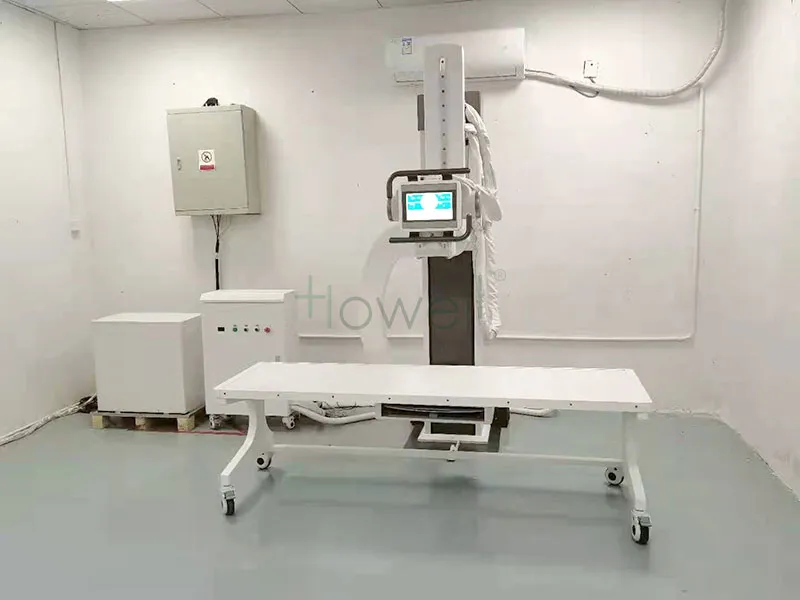

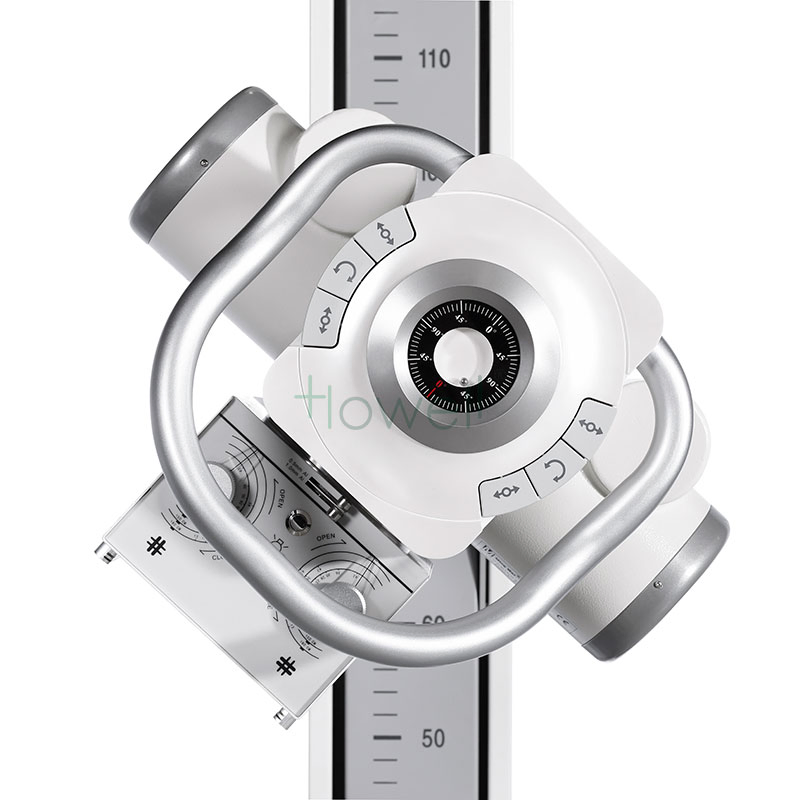

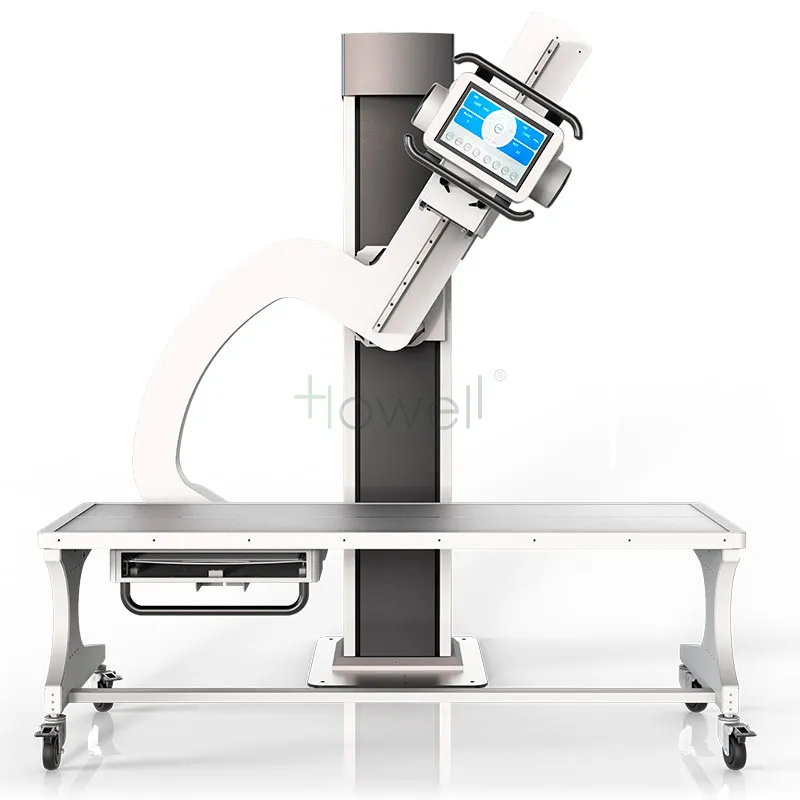

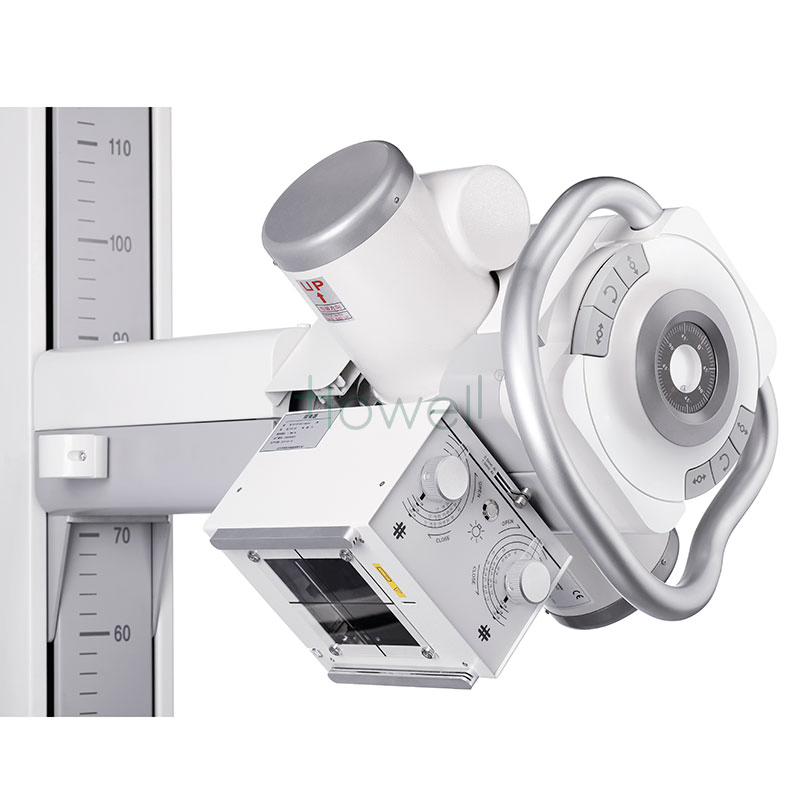

The mechanical structure integrates a double column design consisting of a high voltage generator, X-ray tube assembly, beam splitter, and console radiograph frame. The system incorporates a portable flat-panel detector and advanced image processing technology to comprehensively improve the diagnostic experience in medical institutions.

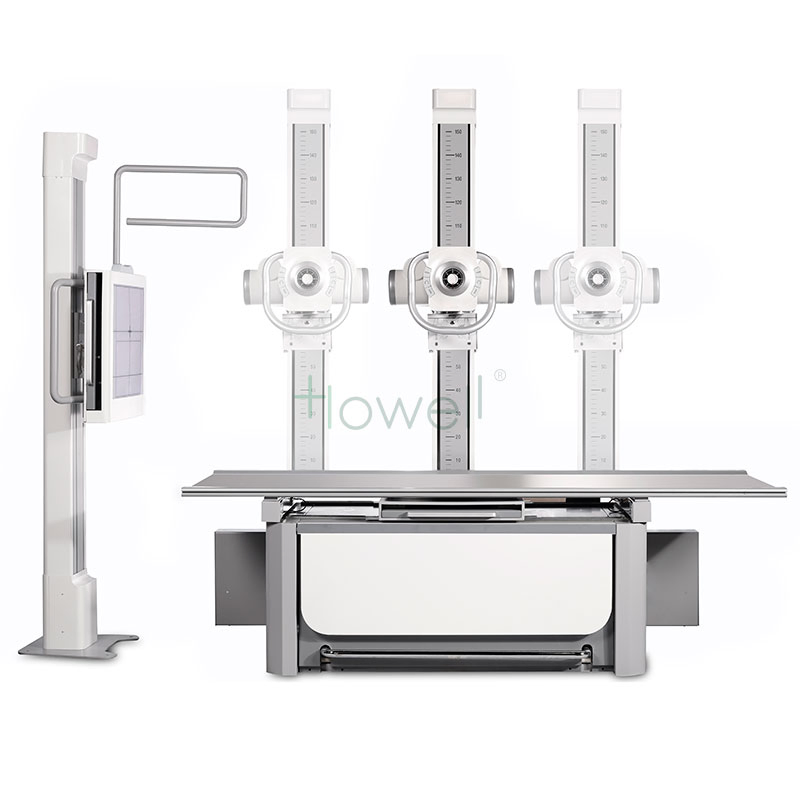

Equipped with a new generation of low-dose X-ray imaging technology, the X-ray tube column utilizes a side vertical guide rail integrated with the photography bed, effectively saving valuable workspace while maintaining high-quality performance.
| High Voltage Generator | Output power | 65 kW |
| Max kV | 150 kV | |
| Max mA | 800 mA | |

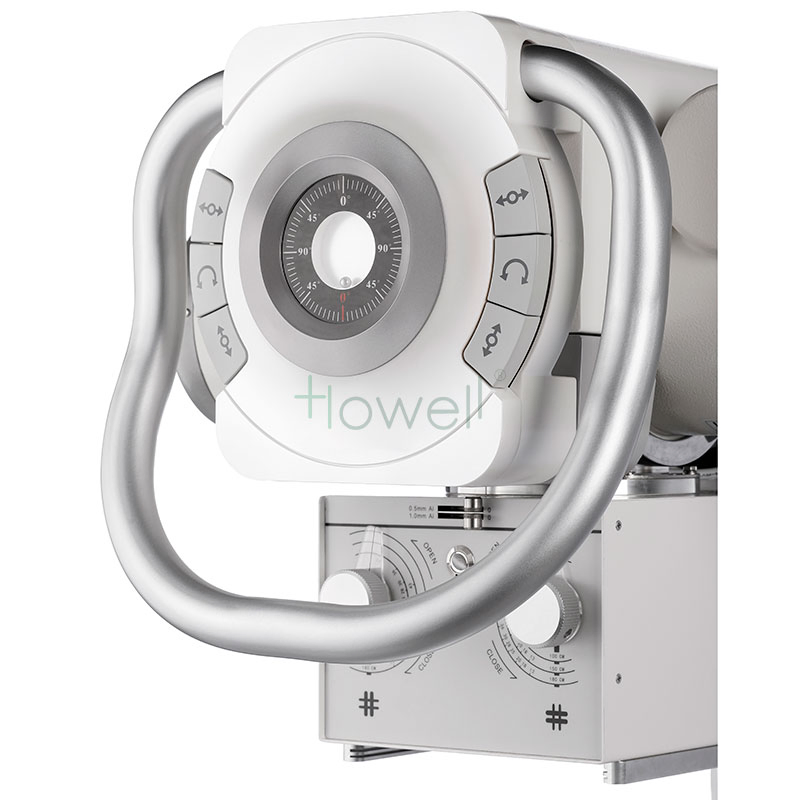

| X-ray Tube | Focal Spot | 0.6mm × 1.2mm |
| Anode Heat Content | 300kHU | |
| Flat Panel Detector | Scintillator | Csl & a-Si |
| Pixel Pitch | 139μm | |
| Imaging Area/Resolution | 17 × 17 inch; up to 30 fps (3x3 binning) | |
| Active Area | 17 × 17 | |
| Workstation | Parameters | CPU Dual-core 3.8GHz, Memory 4G, Hard disk 1T, Display 23.8 inches |
| Photography Table | Size | 2000 * 630mm |
Our facility is a leading manufacturer of high-tech medical equipment used in Operating Rooms and ICUs. Our core product range includes Operating Tables, Surgical Lights, Anesthesia Machines, Ceiling Pendants, and ICU Ventilators. We advocate for resolving technical difficulties through excellent R&D and creating technical value through application experience.
With a R&D team possessing over 10 years of industry experience, we invest 10% of turnover back into research annually. By adhering to continuous scientific innovation, we aim to exceed international standards and provide high-quality products to our global partners.
