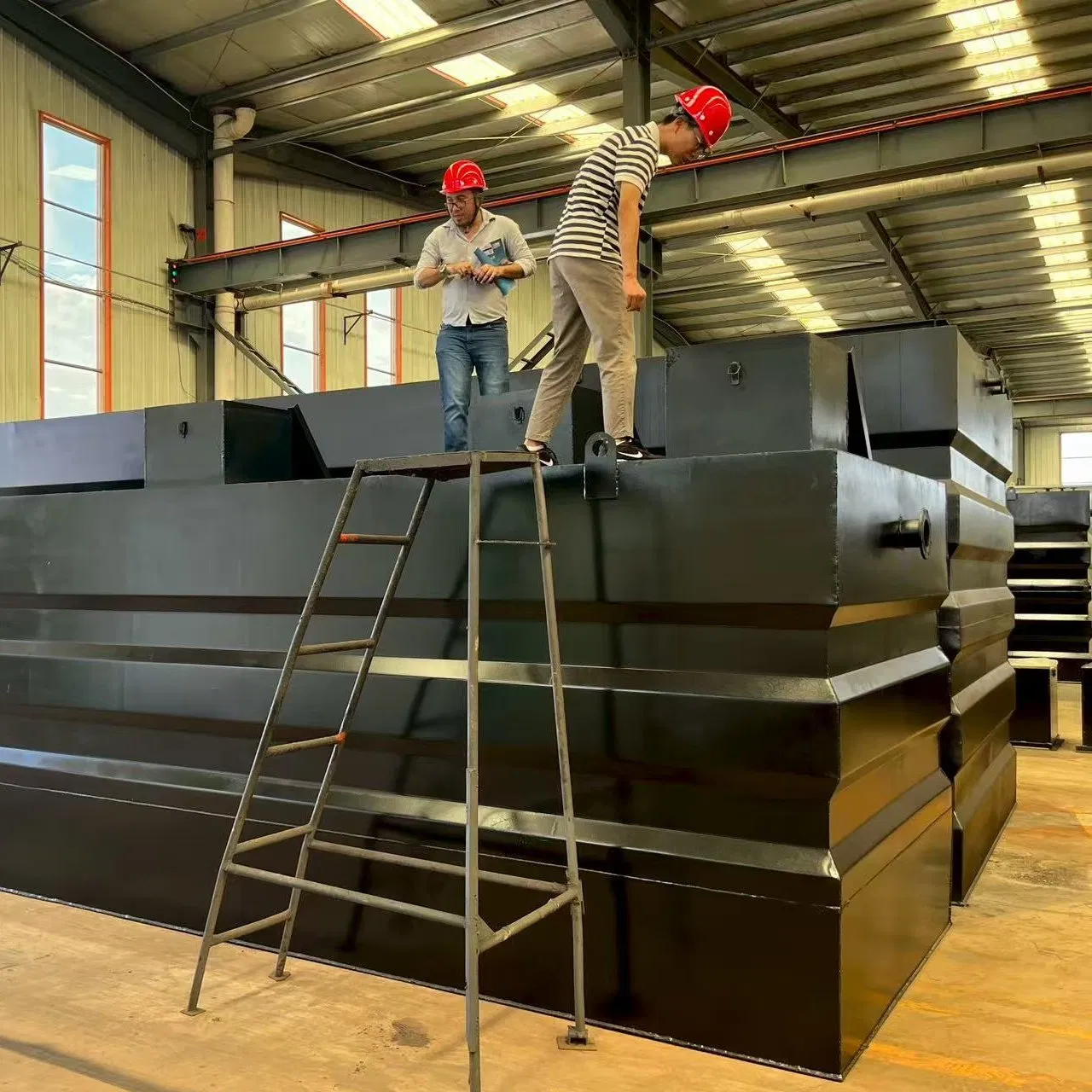

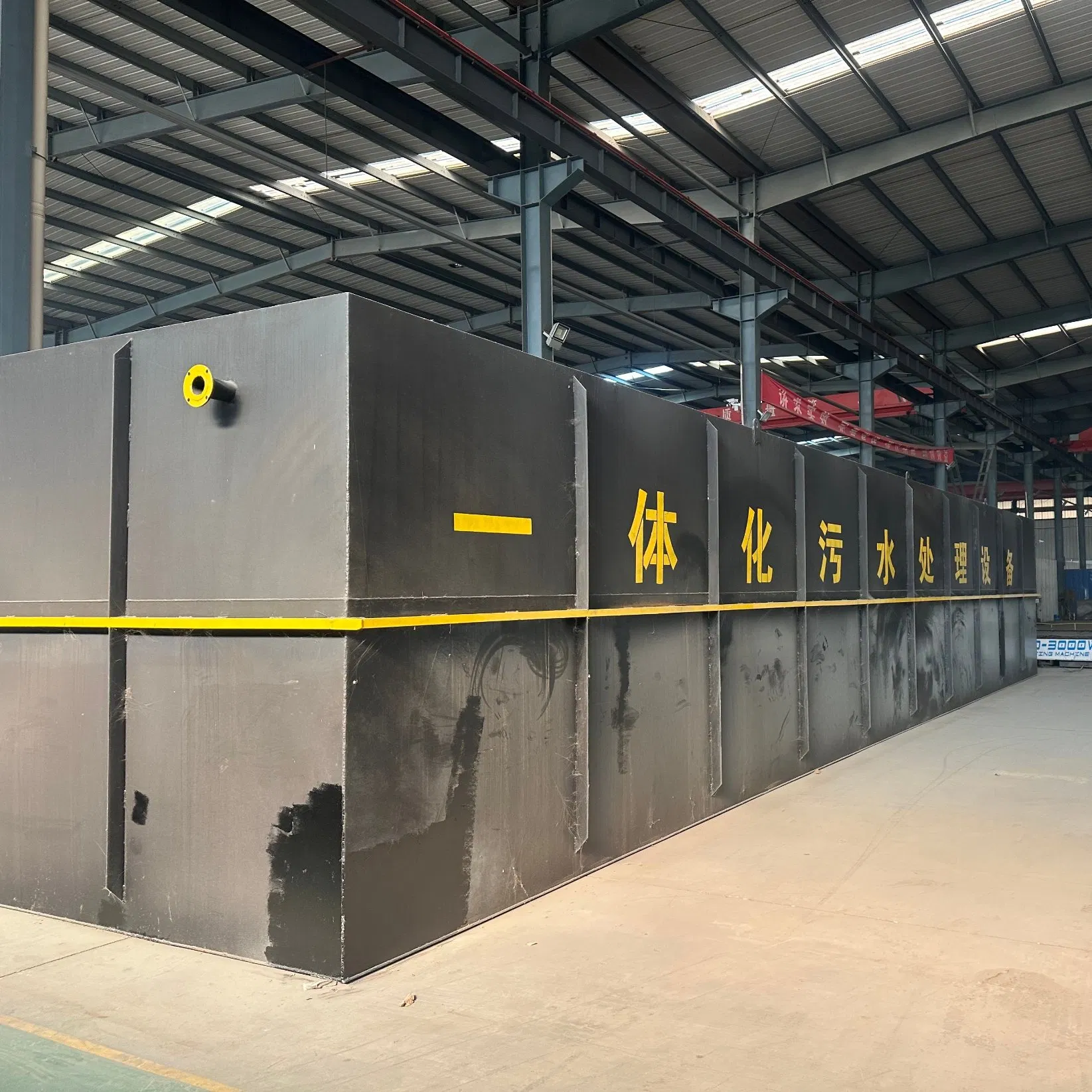

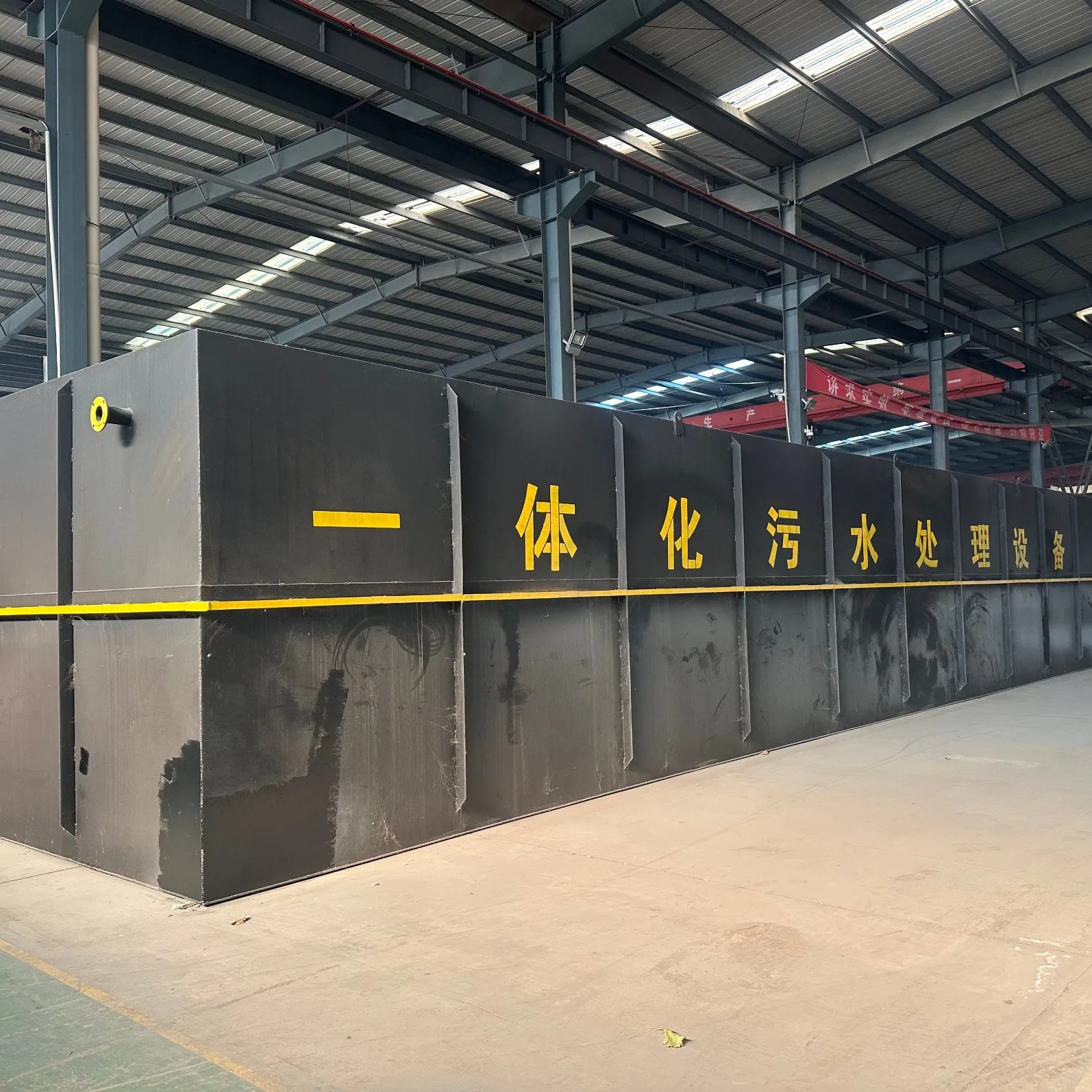

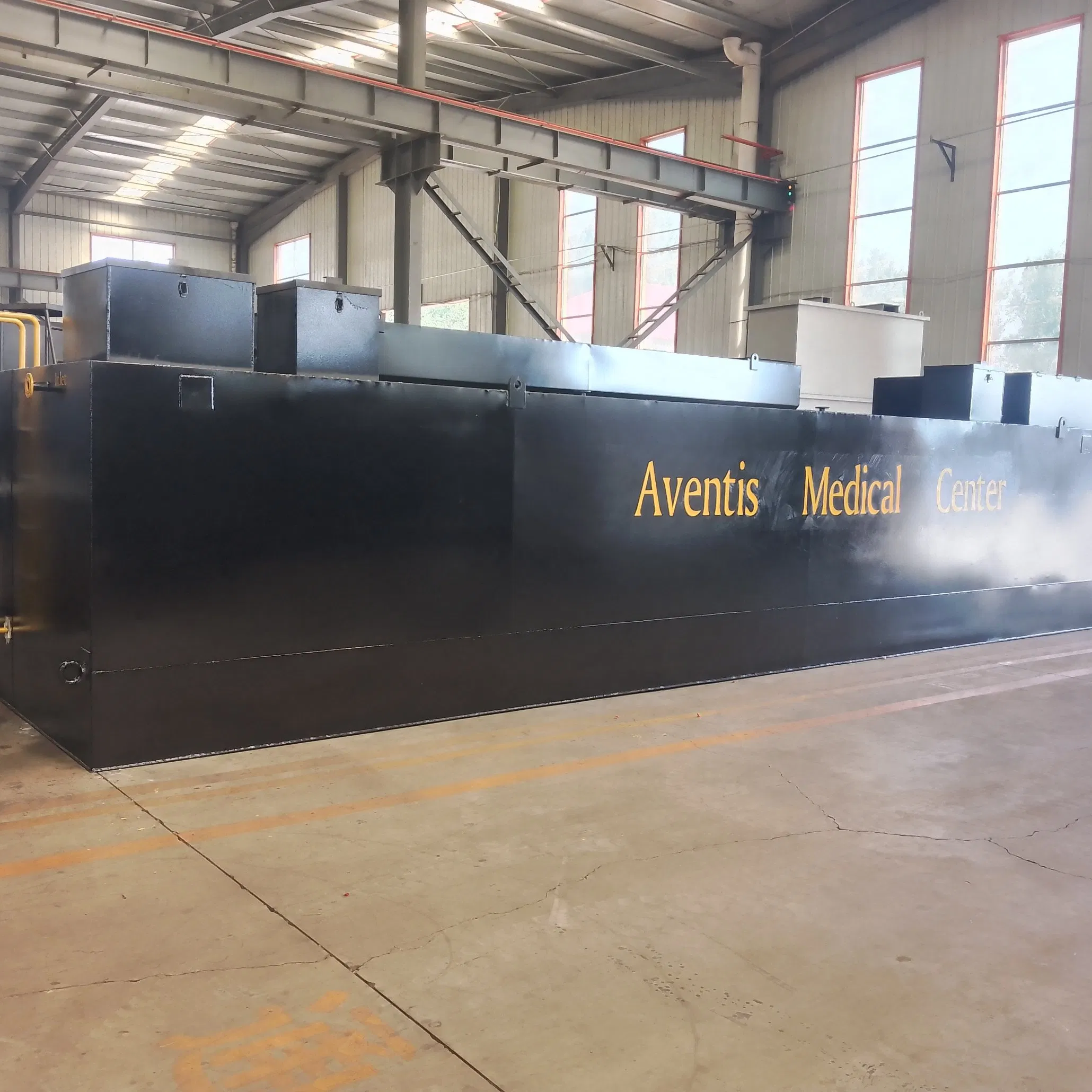

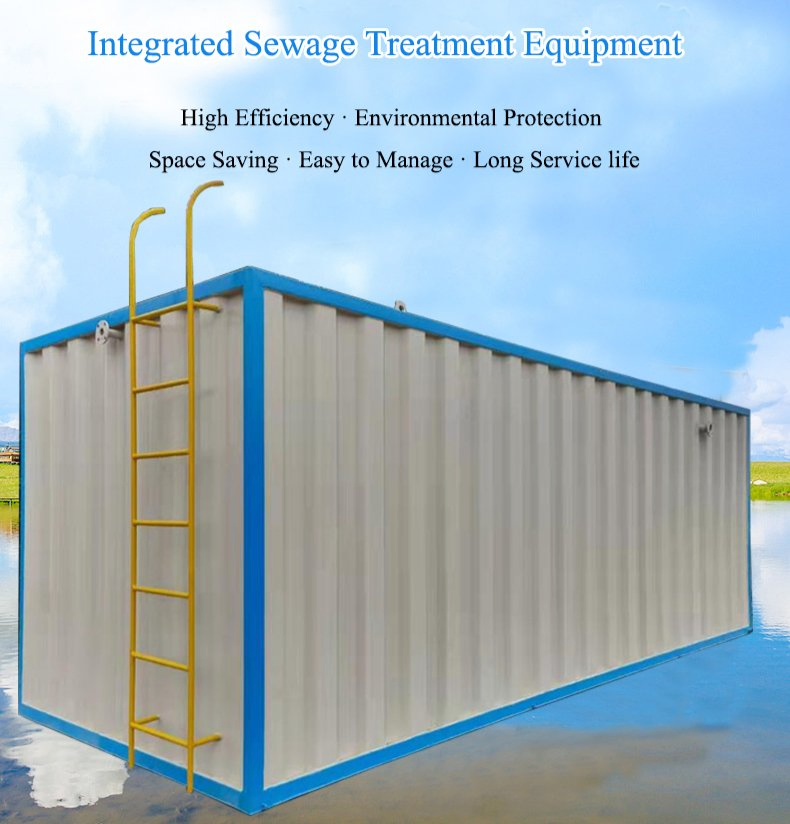

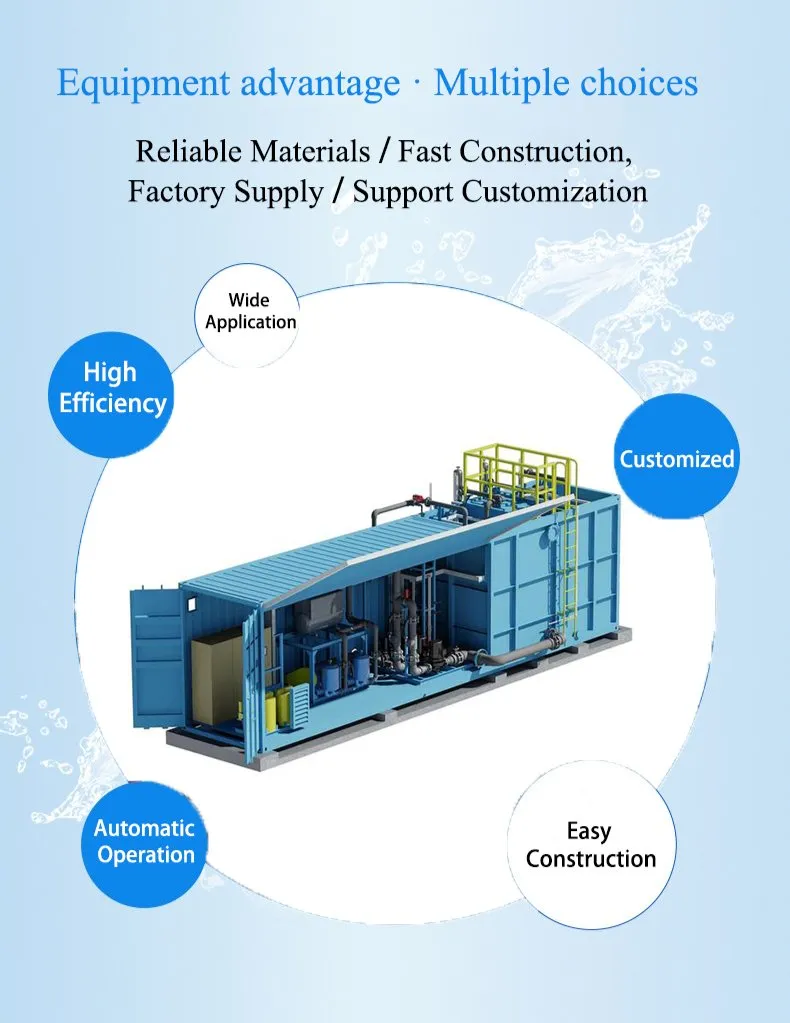

The integrated sewage treatment unit combines multiple treatment functions—such as primary sedimentation, biological reaction, MBBR processing, secondary clarification, MBR membrane filtration, and final disinfection—into a single compact system. This all-in-one structure simplifies traditional wastewater plant design, reduces civil construction requirements, and streamlines installation and operation.
Product Material: Carbon steel, Stainless steel, fiberglass
Treatment Process: AO, AAO, AO+MBR, MBBR and others

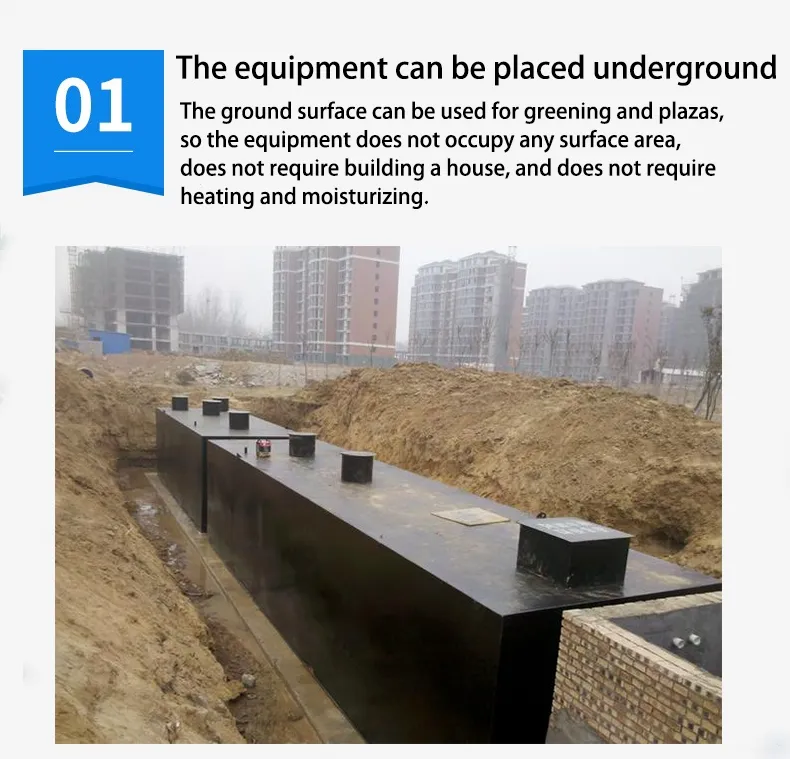

Disposal Method: Ground or Underground placement
Water Volume: 10-5000m³/h (Customizable)
The integrated sewage treatment equipment occupies a small area, is easy to install, has high treatment efficiency, stable operation and low maintenance cost. The PLC automatic control system ensures plug-and-play functionality without requiring dedicated personnel for constant maintenance.
| Item | NS-1 | NS-2 | NS-3 | NS-4 | NS-5 | NS-6 | NS-7 | NS-8 | |
|---|---|---|---|---|---|---|---|---|---|
| Capacity (m³/h) | 1 | 3 | 5 | 7.5 | 10 | 15 | 20 | 30 | |
| Primary settling tank | 1.8 | 5.5 | 9 | 14 | 18 | 27 | 36 | 50 | |
| Contact oxidation tank (m³) | 5 | 14.5 | 24 | 36 | 44 | 63 | 83 | 130 | |
| Disinfection tank (m³) | 0.6 | 1.8 | 2.8 | 4 | 5.5 | 8 | 10 | 15 | |
| Air Blower | Model | HC-25IS | HC-30IS | HC-50C | HC-50IS | HC-60IS | HC-80IS | HC-100IS | HC-110IS |
| Power (kw) | 0.4 | 0.75 | 1.5 | 2.2 | 2.2 | 3.7 | 5.5 | - | |
| Total Weight (t) | 5.5 | 6.5 | 8 | 11 | 17 | 20 | 21 | 29 | |

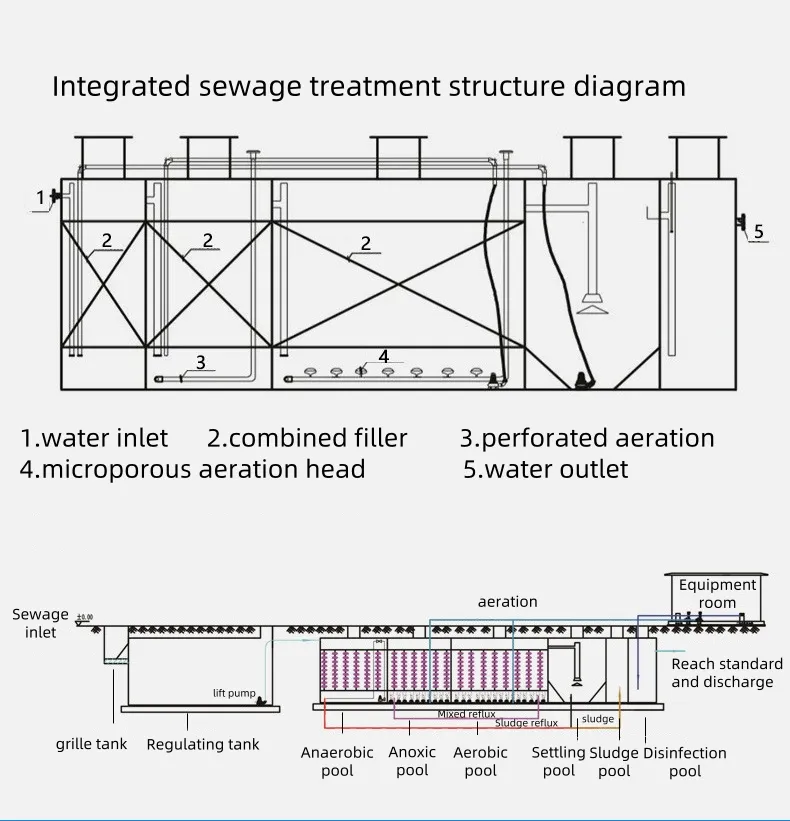

First, wastewater passes through a screen to remove larger suspended solids and impurities, then enters a regulating tank for flow and quality balancing. The regulated wastewater then sequentially enters an anaerobic tank, an anoxic tank, and an aerobic tank. Aeration promotes microbial degradation of organic pollutants, achieving deep biological treatment. Finally, water flows into a sedimentation tank for solid-liquid separation and disinfection.
Applicable to hotels, hospitals, chemical industrial parks, residential communities, ports, airports, and train stations. It is also suitable for livestock breeding wastewater, food processing, schools, mining areas, and municipal wastewater treatment.

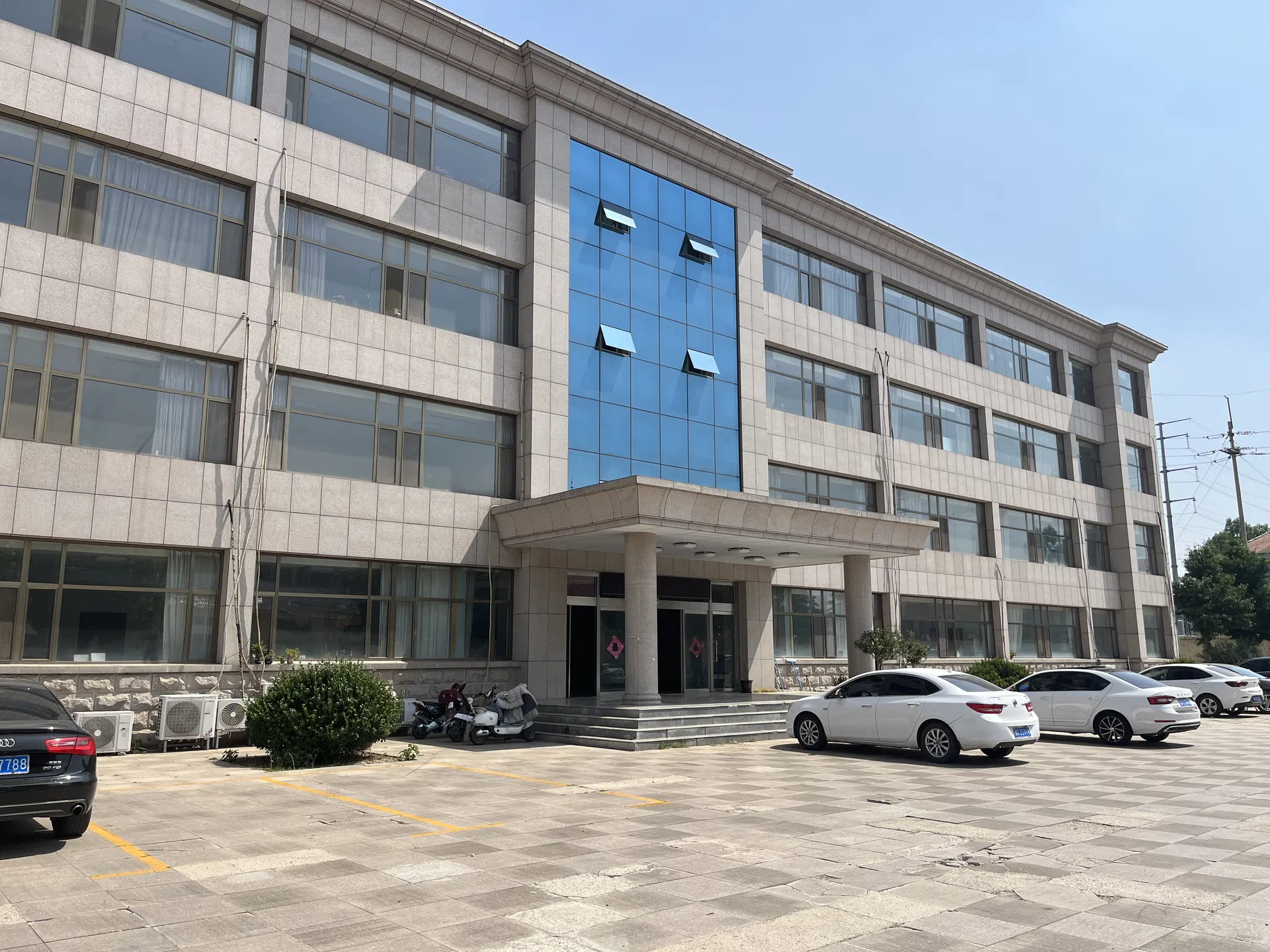

Our production facility covers a 10,000-square-meter plant with advanced manufacturing equipment. We specialize in wastewater treatment, water purification, and waste incineration equipment. With over 100 processing machines and a team of expert technicians, we provide efficient combustion and energy-conserving environmental solutions exported worldwide.
