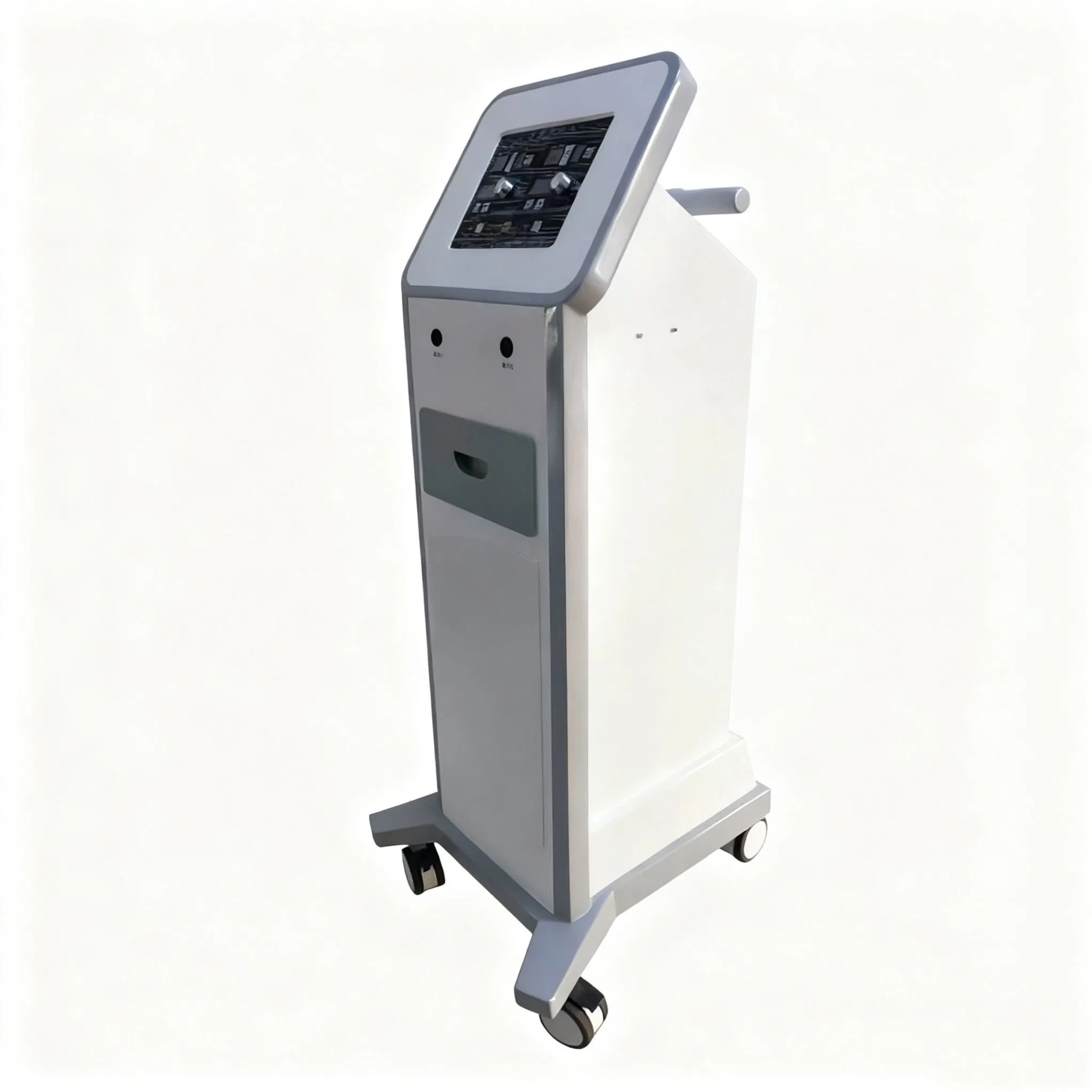

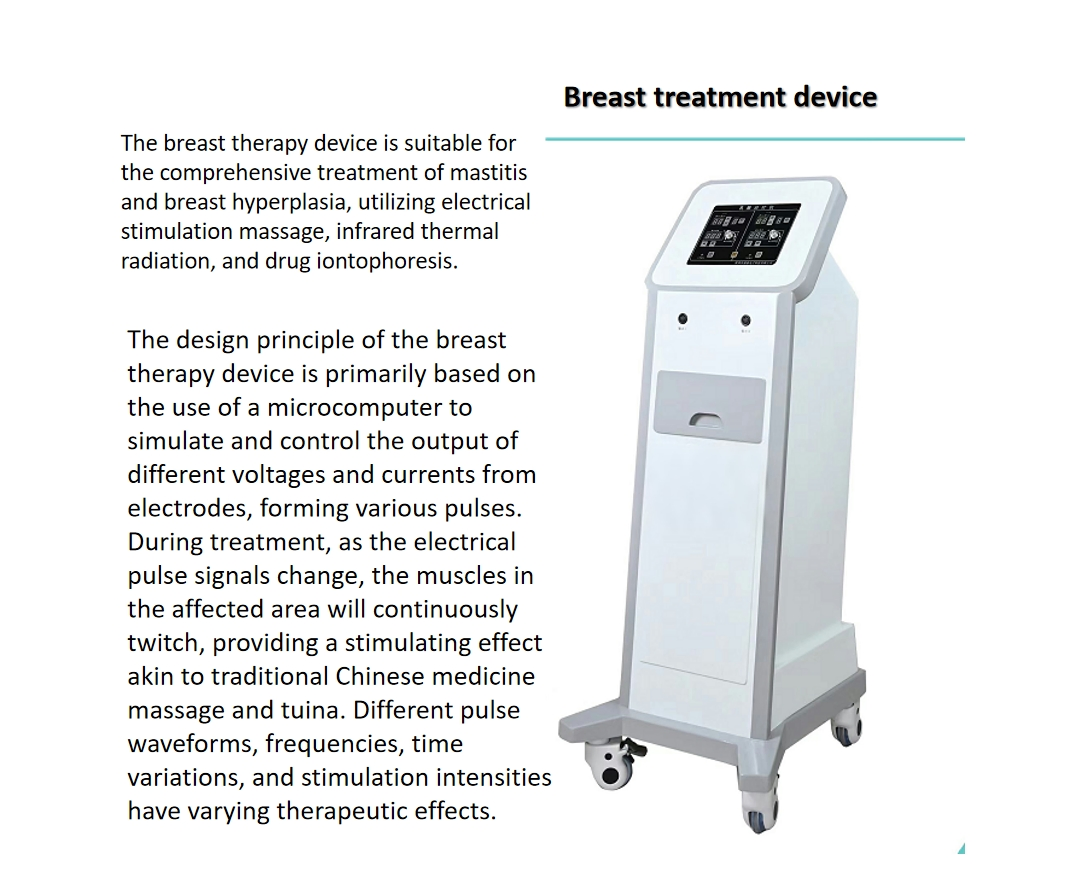

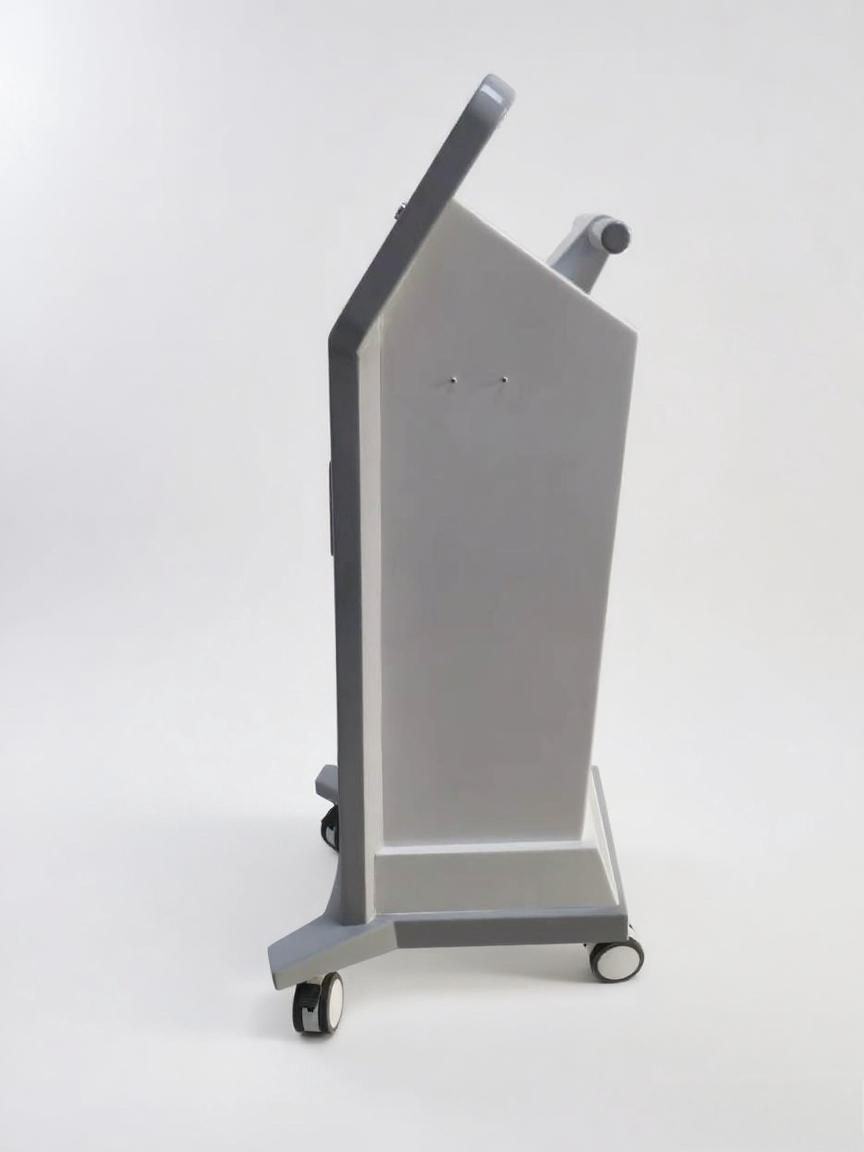

The breast therapy device is suitable for the comprehensive treatment of mastitis and breast hyperplasia, utilizing electrical stimulation massage, infrared thermal radiation, and drug iontophoresis.
The design principle is based on the use of a microcomputer to simulate and control the output of different voltages and currents from electrodes, forming various pulses. During treatment, as the electrical pulse signals change, the muscles in the affected area will continuously twitch, providing a stimulating effect akin to traditional massage and tuina. Different pulse waveforms, frequencies, and intensities provide varying therapeutic effects.
| Parameter Item | Specifications |
|---|---|
| Total power | ≤45VA |
| Pulse frequency | 156Hz~2500Hz, adjustable |
| Pulse width | ≤2ms |
| Output Pulse Intensity | 20V-40V depending on frequency (50mA-100mA) |
| Single-pulse energy | Maximum output energy ≤ 300mJ |
| Time range | 0-99 minutes, adjustable |
| Continuous working hours | >16 hours |
| Relay protection | No output when power is interrupted and restored |
