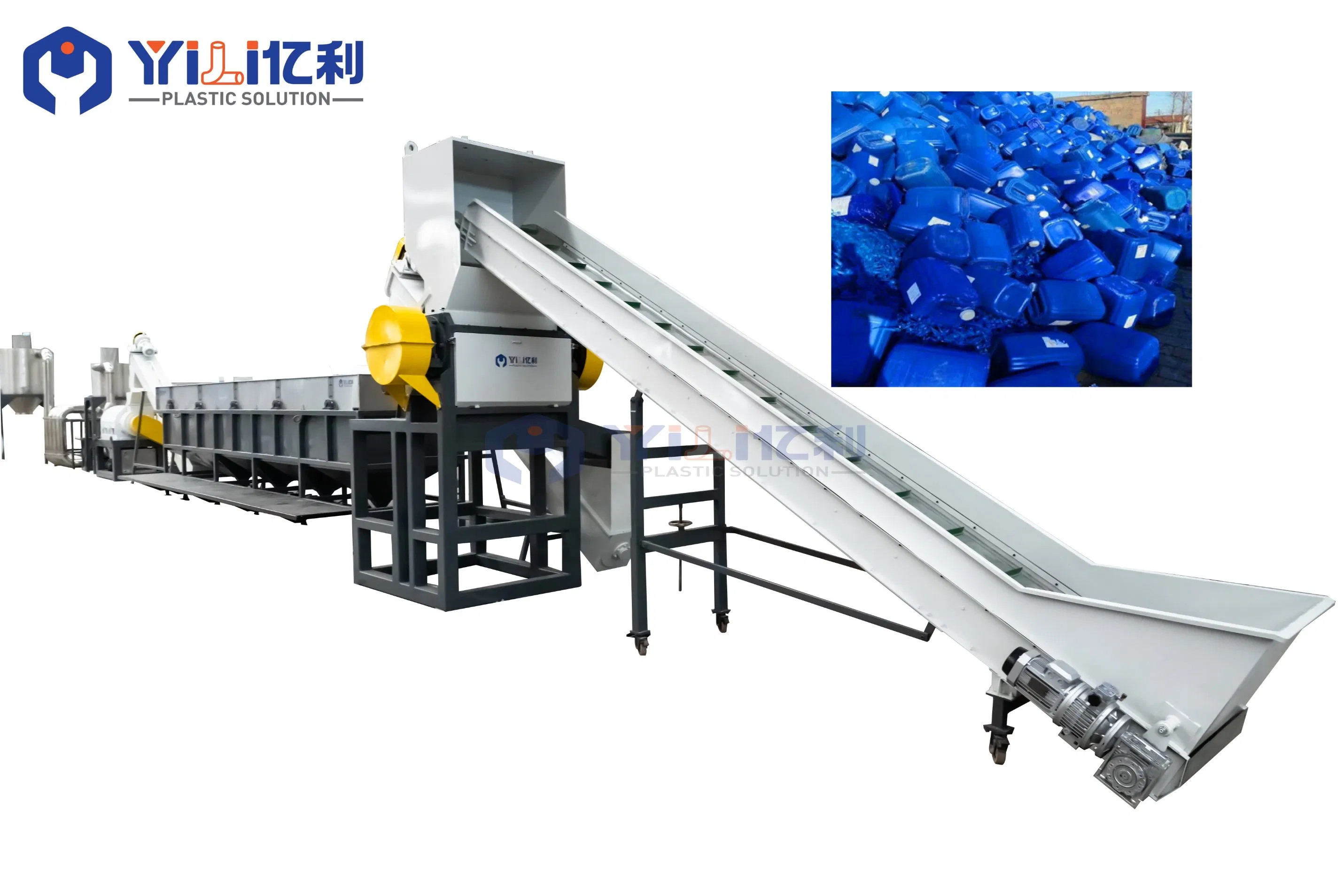

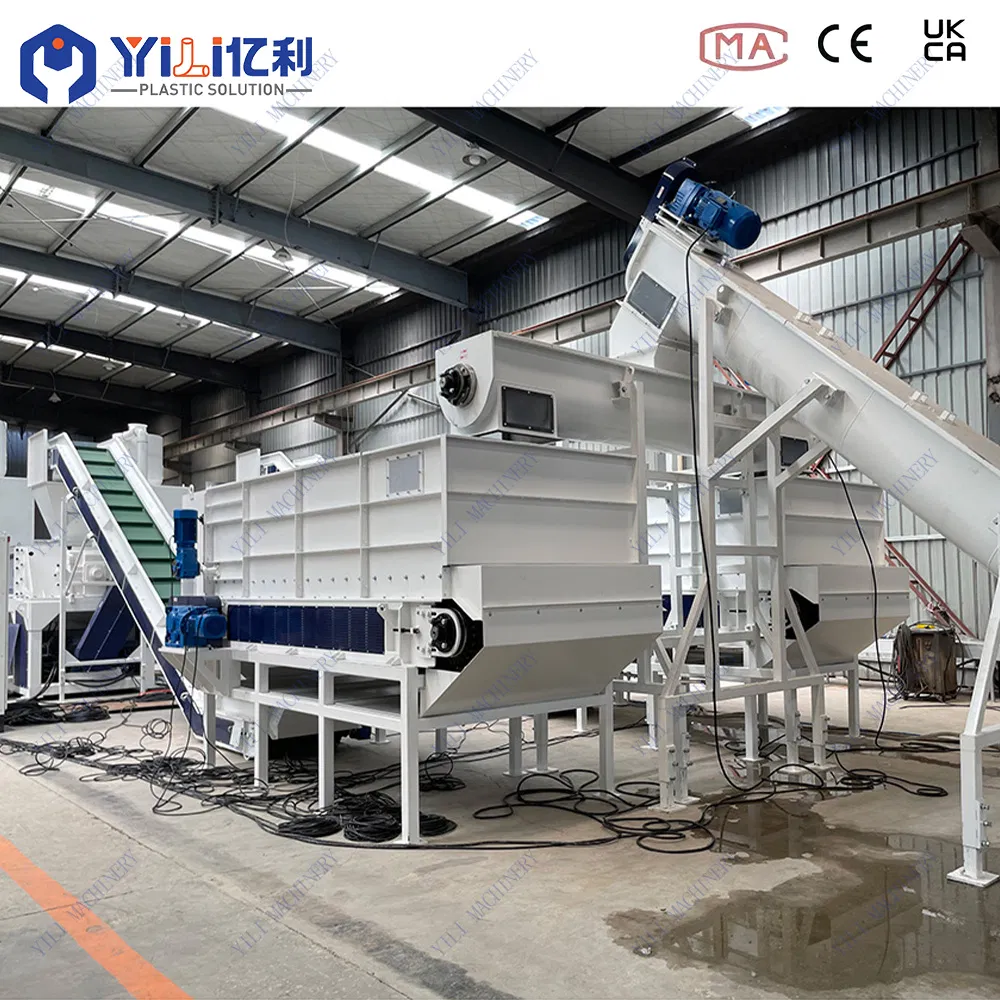

The waste hard plastic recycling and washing line can treat various kinds of hard plastic material, such as PE or PP bottles, IBC tanks, pipes, lumps, flakes, jugs, blocks, die head material, etc. The whole production line includes shredder, crusher, friction washer, floating tank, centrifugal dryer, etc, which have capacity from 300 to 5000 kg/hr. This hard plastic washing line ensures a precise and efficient decontamination of waste plastics with both cold and hot washing systems, adopting the most efficient recycling technologies. The final products after washing can reach very high quality, suitable for reuse or blending with other materials.
| Model | Capacity (kg/hr) | Power installed (Kw) | Water consumption (ton/hr) | Manpower |
|---|---|---|---|---|
| HQX500 | 500 | 160 | 0.5 | 3 |
| HQX1000 | 1000 | 220 | 1.2 | 3 |
| HQX2000 | 2000 | 350 | 3 | 4 |
| HQX3000 | 3000 | 410 | 4 | 4 |
| HQX5000 | 5000 | 500 | 5 | 6 |

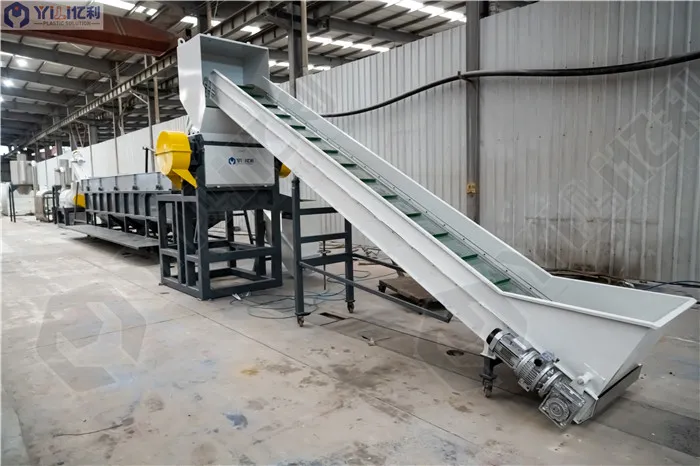

Available in light and heavy-duty types. Features a gearbox motor and sidewalls to prevent material loss. Optional metal detector installation is available.

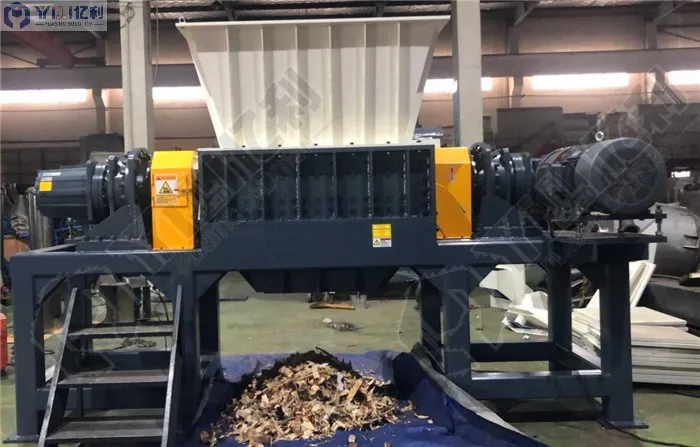

Ideal for large materials like plastic drums, tanks, and lumps. Shredding provides preliminary grinding before the material moves to the crusher for fine processing (<12mm).

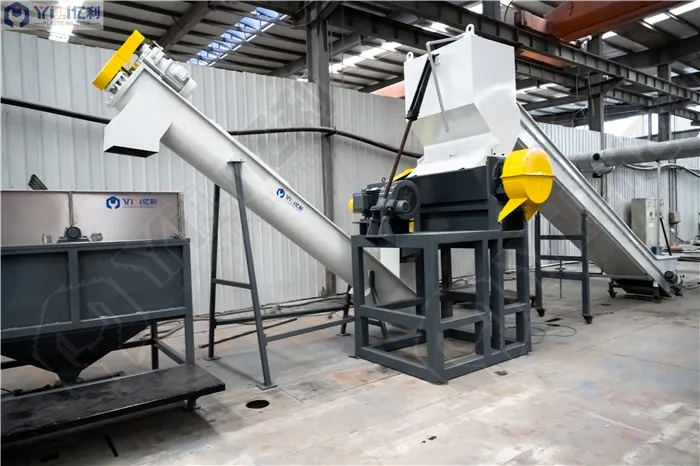

Crushes material into smaller sizes while using water to clean and cool the blades simultaneously. Enhances the final washing result.

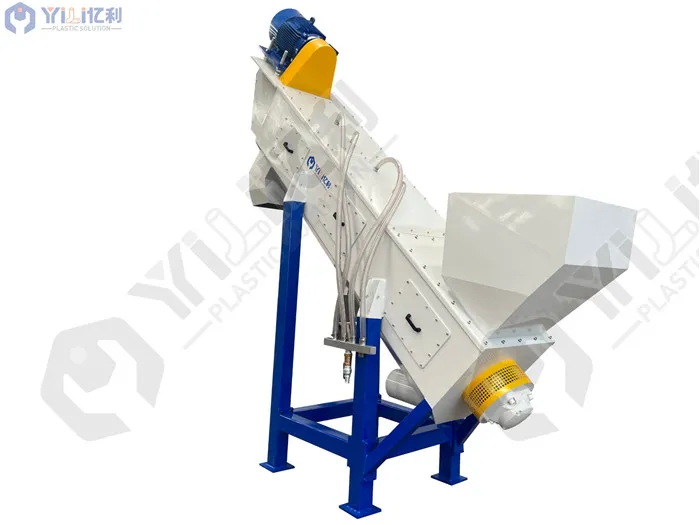

High-speed water washing effectively removes contaminations, dirt, and grease. Prepares material for deep cleaning in the floating tank.

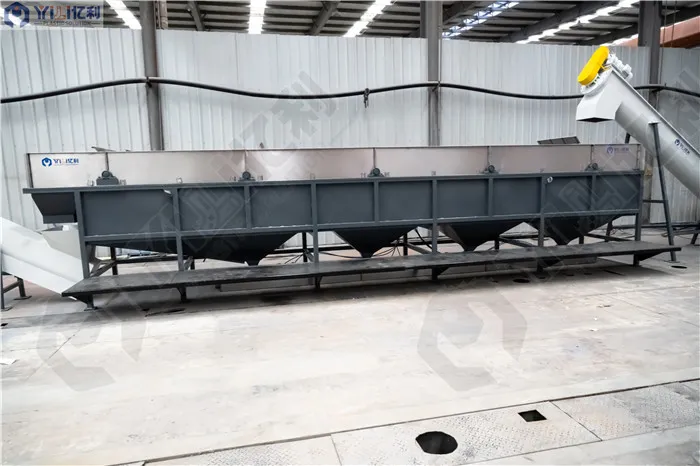

Separates sediment and metals. Features variable speed control and magnetic valves for timely waste discharge. Made from high-quality stainless steel.

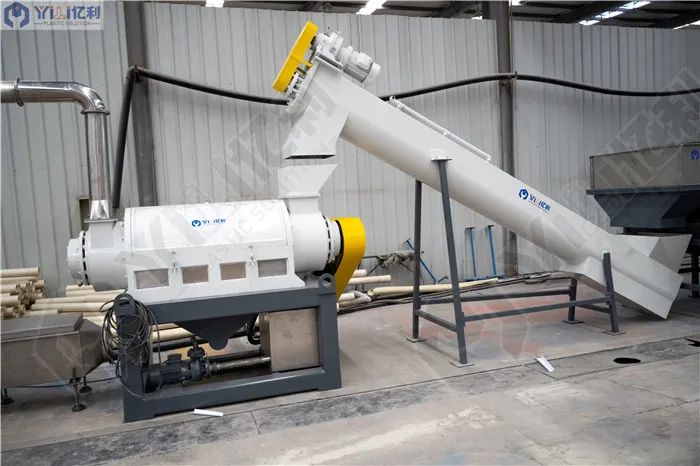

Horizontal centrifugal design for drying plastic flakes with high performance and low energy. Features a self-washing grid mesh.

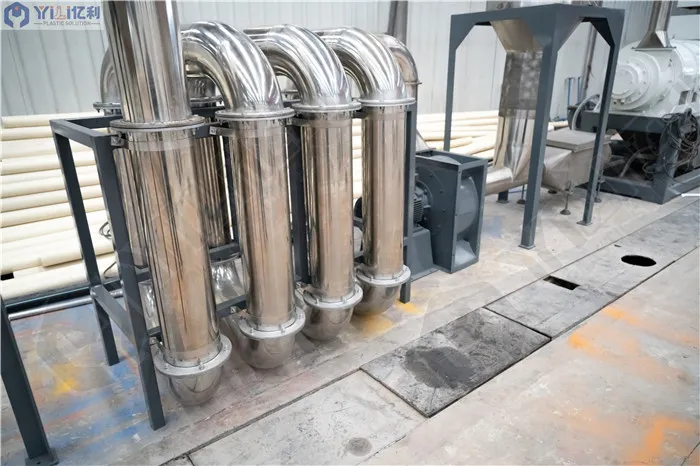

Stainless steel pipeline system using hot air to further decrease moisture levels in the processed material.
