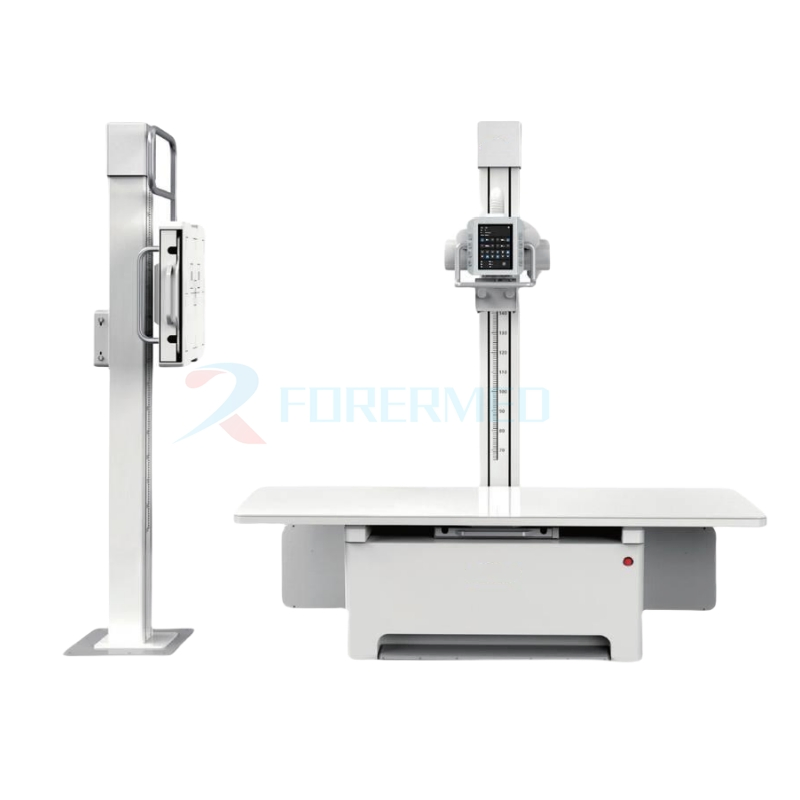

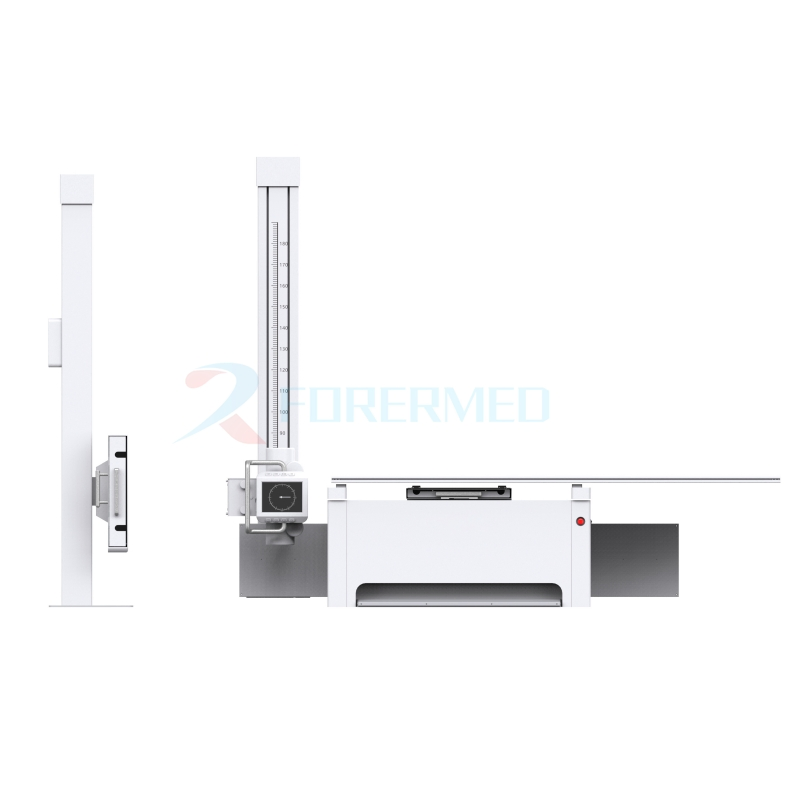

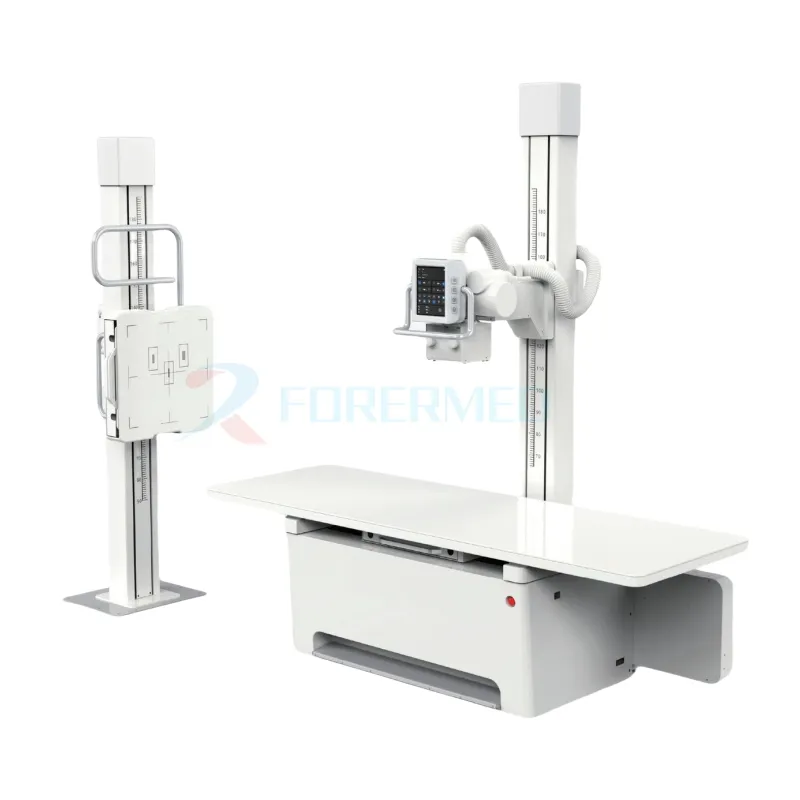

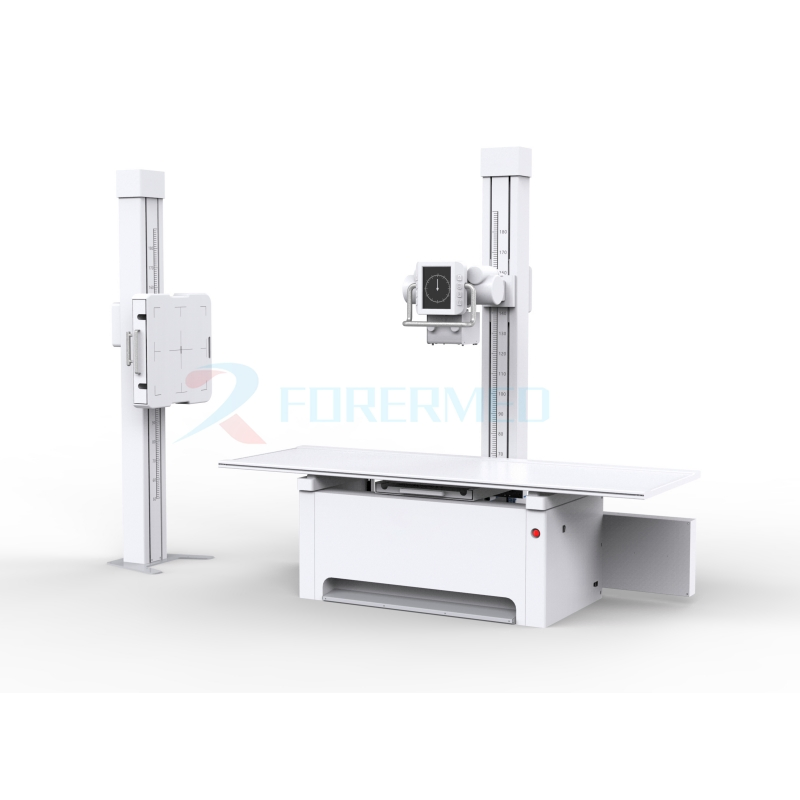

32KW/ 50KW DR X Ray Machine Digital Floor-mounted Radiography System
DR 17x17 Flat Panel Detector X-ray Machine

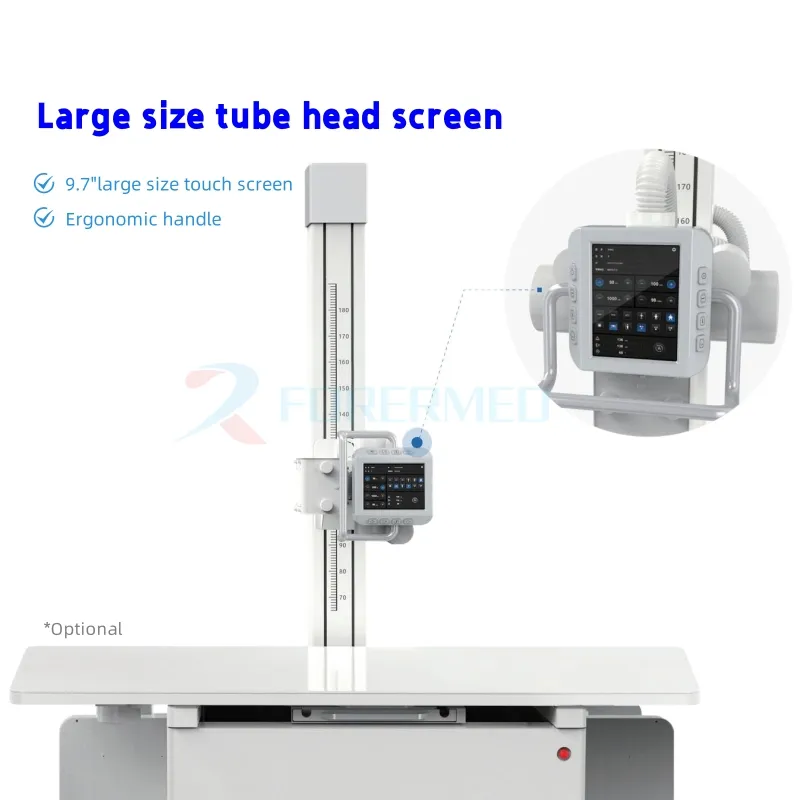

Large size tube head screen
9.7" large size touch screen for intuitive operation. Electric movement of X-ray tube and ergonomic handle provide effortless control.
Large size detector
17 x 17 inch large detector provides images with high contrast and high resolution.

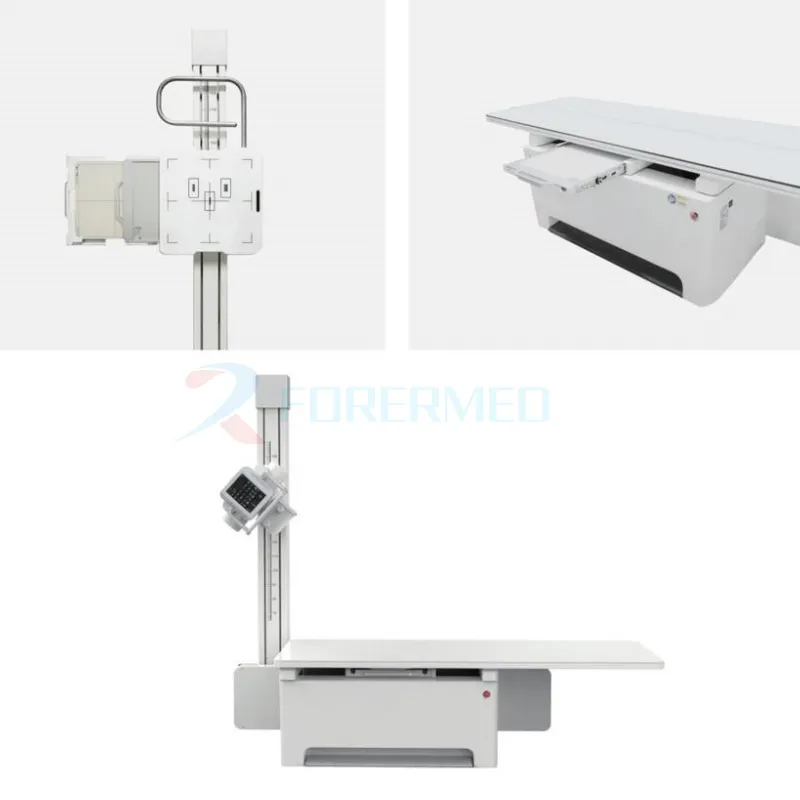

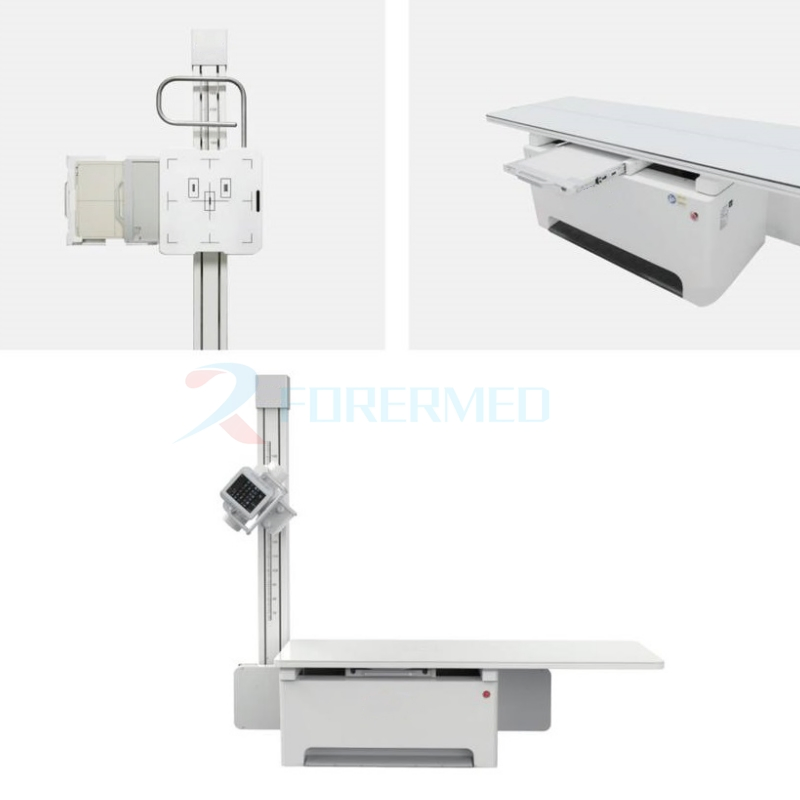

Flexible Tabletop

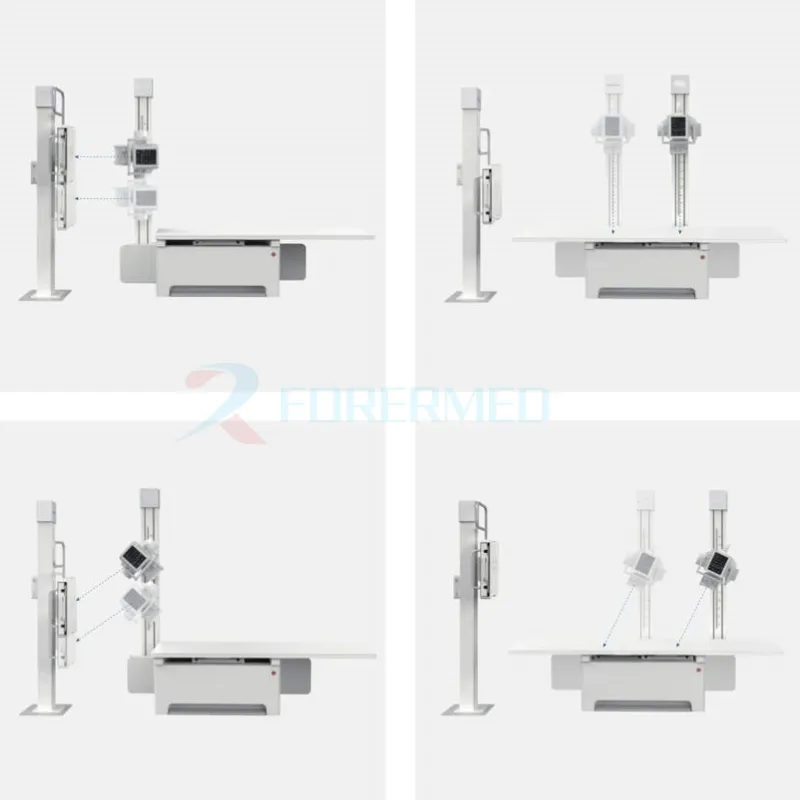

Four-way floating tabletop with large longitudinal and transversal movement. Foot switch unlocking offers flexible positioning for all patient sizes.
High Reliability
Adopting advanced technology in the entire imaging chain for superior images. Configuration flexibility fits specific imaging needs.
Powerful Generator
Smart control with microprocessor keeps precise and stable X-ray output consistently.
Image Stitching
Supports full body imaging quickly. Multiple images can be stitched for full spine or long legs visualization.
| Parameter Item | Specification Details |
|---|---|
| Power Capacity | 32kw 200mA / 50kw 500mA |
| Intermittent mode | 100kV, 200mA, 20kW / 100kV, 500mA, 50kW |
| Power Voltage | Three-phase five wires 380V±38V |
| Tube current | Radiography 16mA~630mA |
| Output Voltage | Radiography 40-125KV (step 1kV) |
| Exposure Time | 0.0025s~6.4s adjustable |
| Nominal Frequency | ≥30kHz |
| Anode heat capacity | 140KHU |
| Focus | Small: 1.0mm / Large: 2.0mm |
| Bed Surface Size | 2100mm × 825mm × 650mm |
| Grid density | ≥40 lines/cm |
