32kw Digital Floor-Mounted Radiography System Dr Flat Panel Detector

Customization:	Available
Customized:	Customized
Certification:	CE, FDA

Send Inquiry

Product Description

Basic Information

Model NO.	YJ-X3000
Scale	Large
Product Name	Medical X-ray Equipments
Anode Heat Capacity	140khu
Focus Distance	100cm
Parameter	20kw 200mA / 50kw 500mA
Production Capacity	1000 Units

32KW DR X Ray Machine Digital Floor-mounted Radiography System

DR 17x17 Flat Panel Detector X-ray Machine

Core Features

🖥️

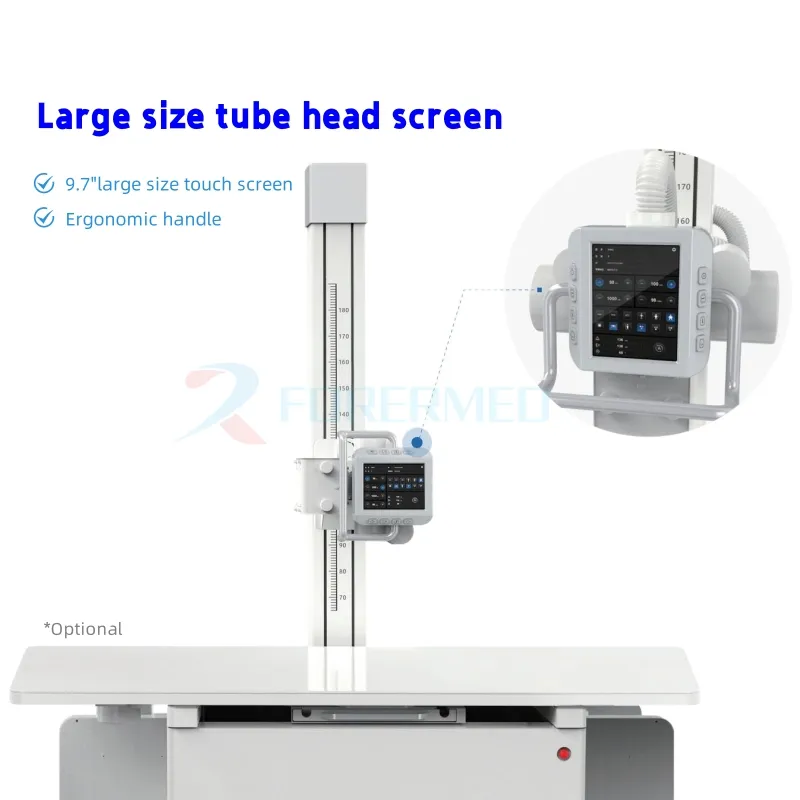

Large Size Tube Head Screen 9.7" touch screen for intuitive operation with electric movement of X-ray tube and ergonomic handles.

📏

Large Size Detector 17 x 17 inch flat panel detector providing high contrast and high resolution images at lower doses.

🛋️

Four-way Floating Tabletop Large range longitudinal/transversal movement and foot switch unlocking for flexible positioning of patients of all sizes.

⚡

High-Frequency Generator Smart control with microprocessor keeps precise and stable X-ray output consistently.

🧵

Image Stitching Supports full spine or long leg imaging by stitching multiple images together for accurate diagnosis.

🛡️

High Reliability Advanced imaging chain technology designed for superior clinical performance in radiology departments.

Product Parameters

Output Power	20kW / 50kW
Intermittent Mode	100kV, 200mA (20kW) / 100kV, 500mA (50kW)
Power Voltage	Three-phase five wires 380V±38V
Tube Current	16mA ~ 630mA Radiography
Output Voltage	40-125KV (Step 1kV)
Exposure Time	0.0025s ~ 6.4s adjustable
Nominal Frequency	≥30kHz
Anode Heat Capacity	140KHU
Focus	Small focus: 1.0mm / Large focus: 2.0mm
Bed Surface Dimensions	2100mm × 825mm × 650mm
Grid Density	≥40 lines/cm
Cassette Size	5″×7″ to 14″×17″

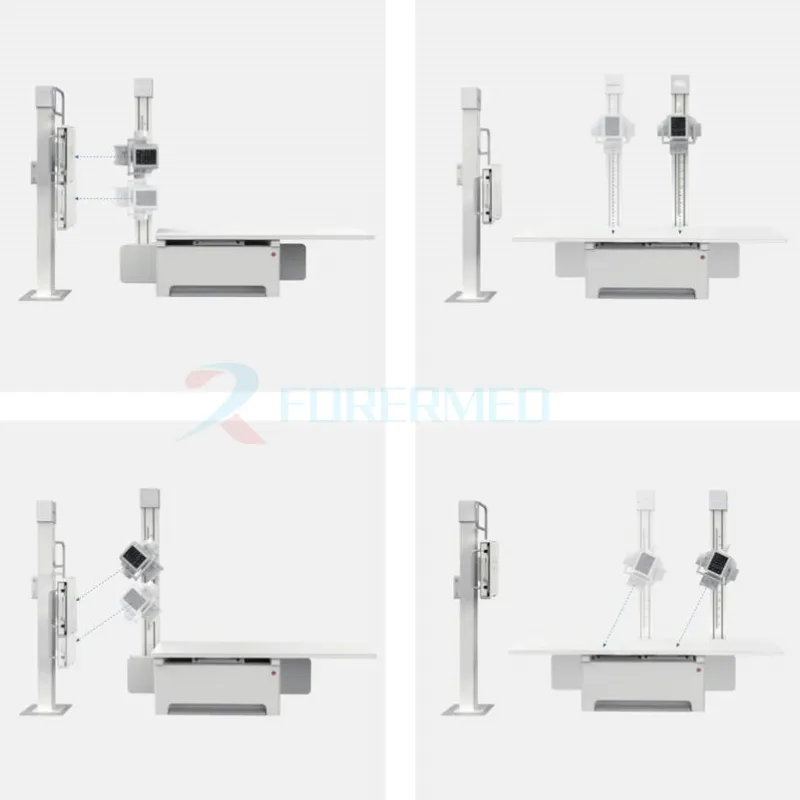

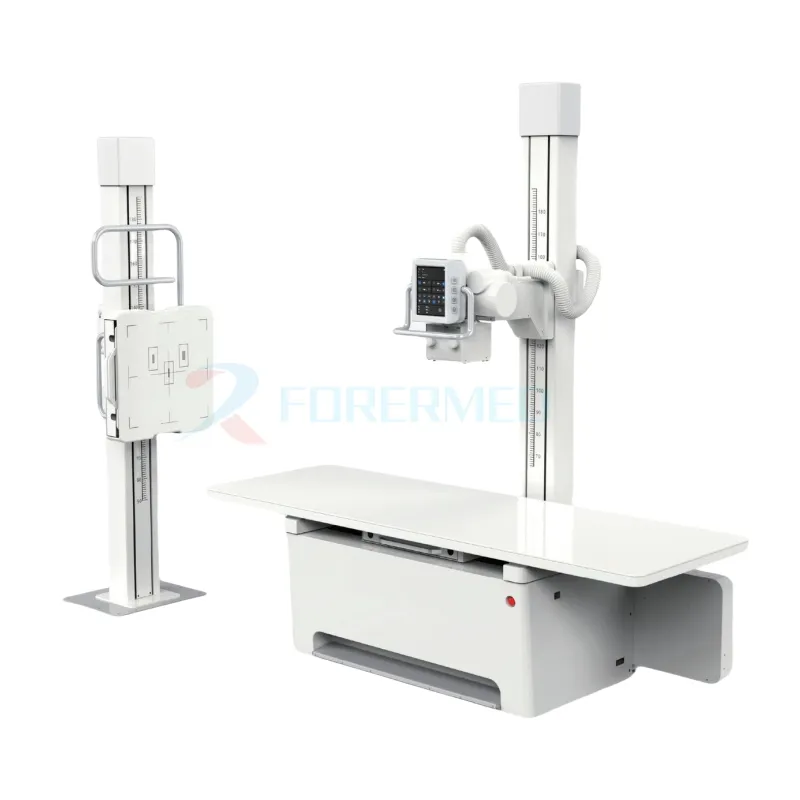

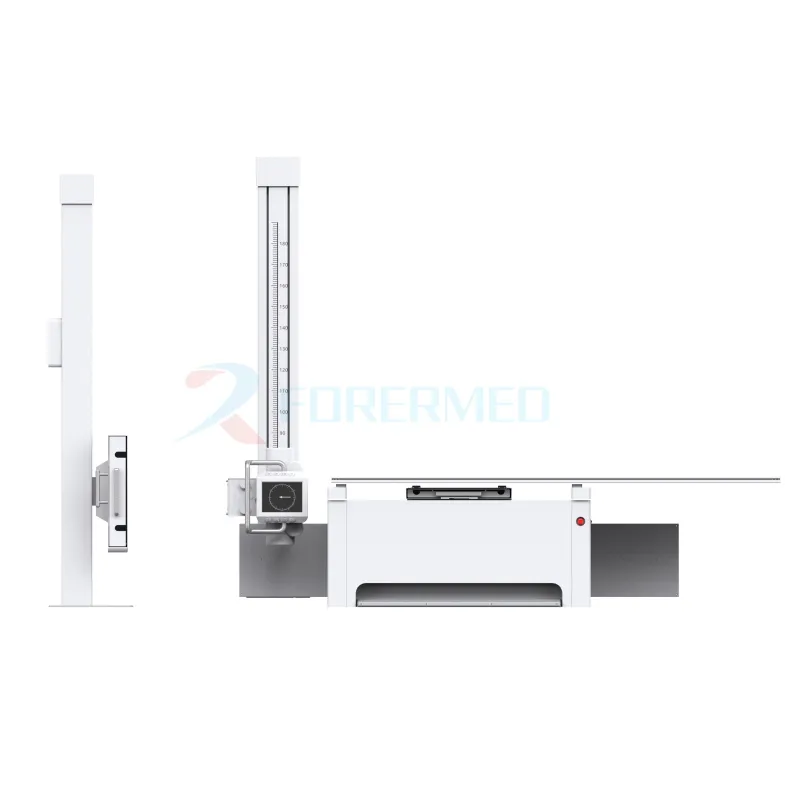

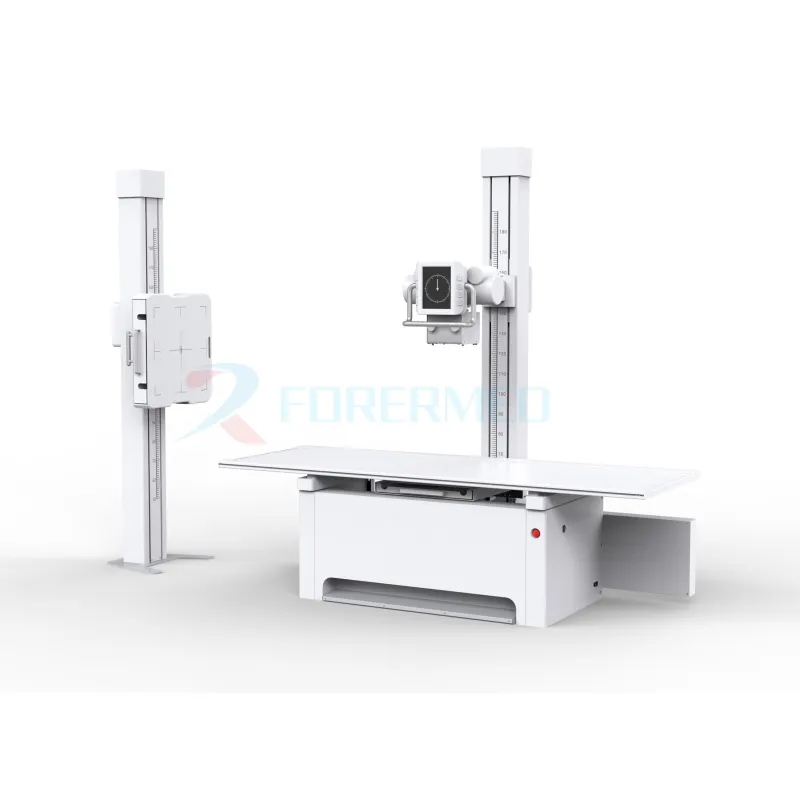

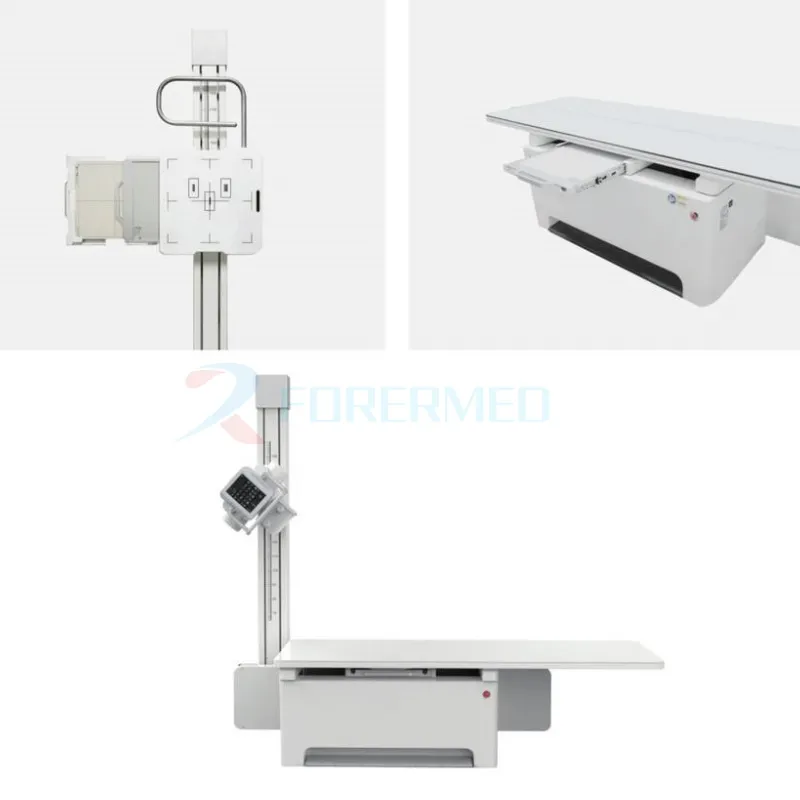

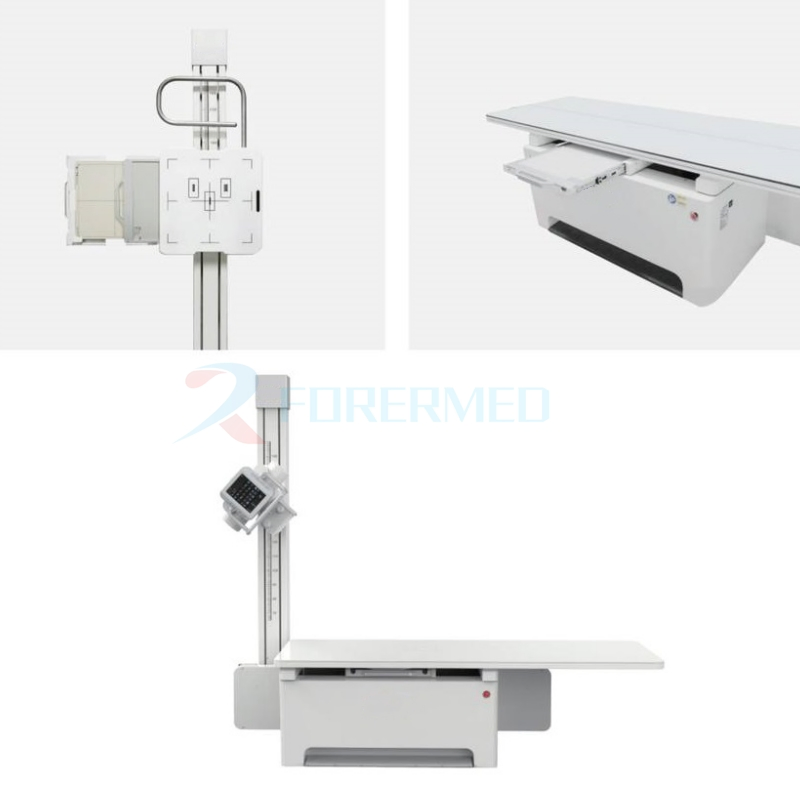

Detailed Photos

Production Capability

Frequently Asked Questions

What is the detector size of this DR system?

The system is equipped with a large 17 x 17 inch flat panel detector, providing high-resolution images for various clinical needs.

Can the machine perform image stitching for full-body scans?

Yes, the X-ray stitching stand supports full body imaging, allowing multiple images of the spine or long legs to be stitched together for accurate diagnosis.

What are the unique features of the tube head?

The tube head features a 9.7" touch screen for intuitive control and an uncovered design that allows for faster heat dissipation during continuous radiography.

Is the patient table easy to position?

Yes, it features a four-way floating tabletop with a large range of longitudinal and transversal movement, controlled by a convenient foot switch.

What power supply is required for the YJ-X3000?

The equipment requires a three-phase five-wire power supply of 380V±38V.

What is the heat capacity of the anode?

The anode heat capacity is 140KHU, which supports high-intensity and continuous radiography operations.
